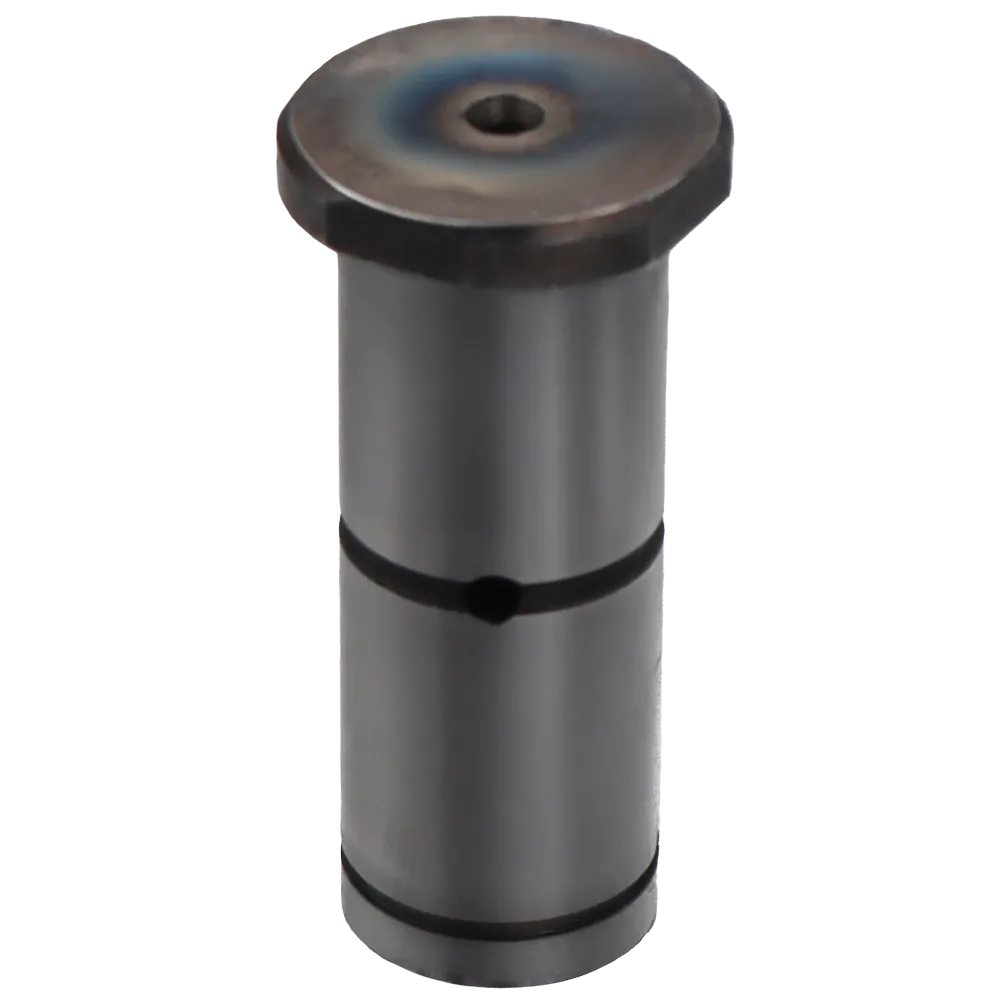

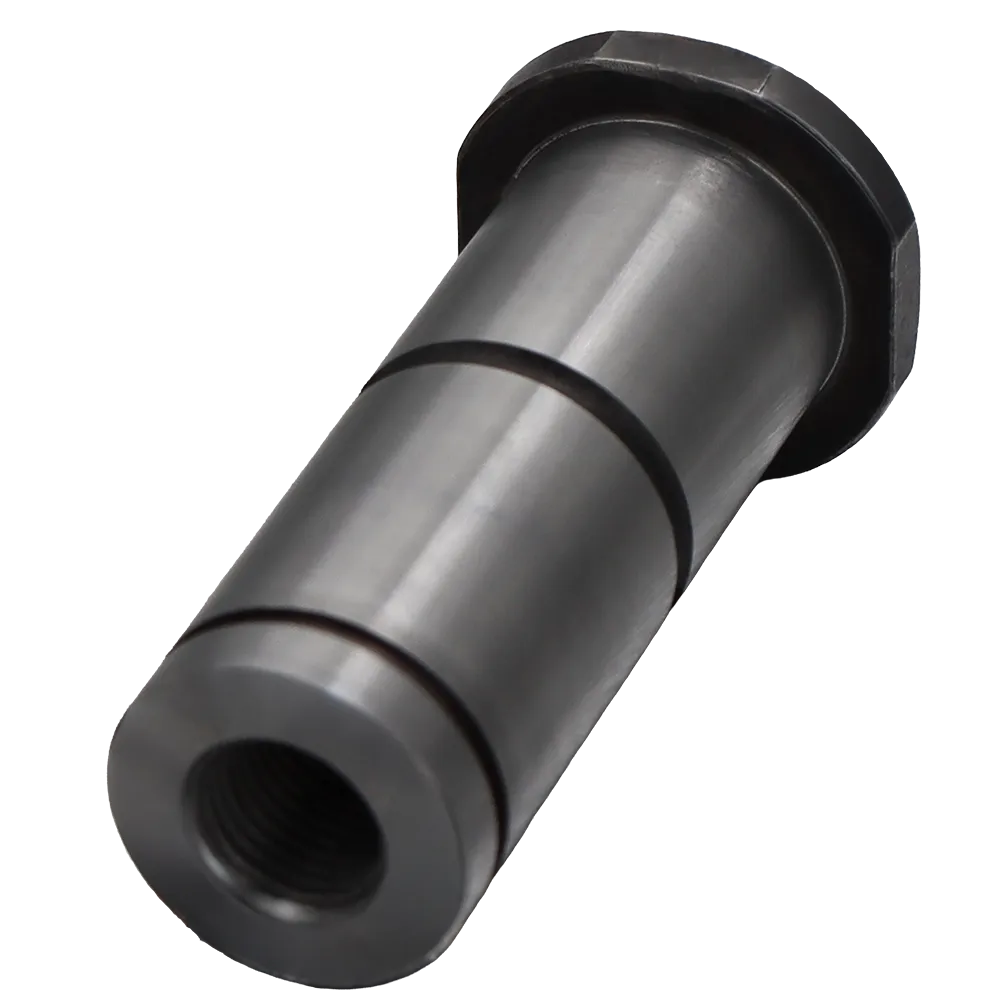

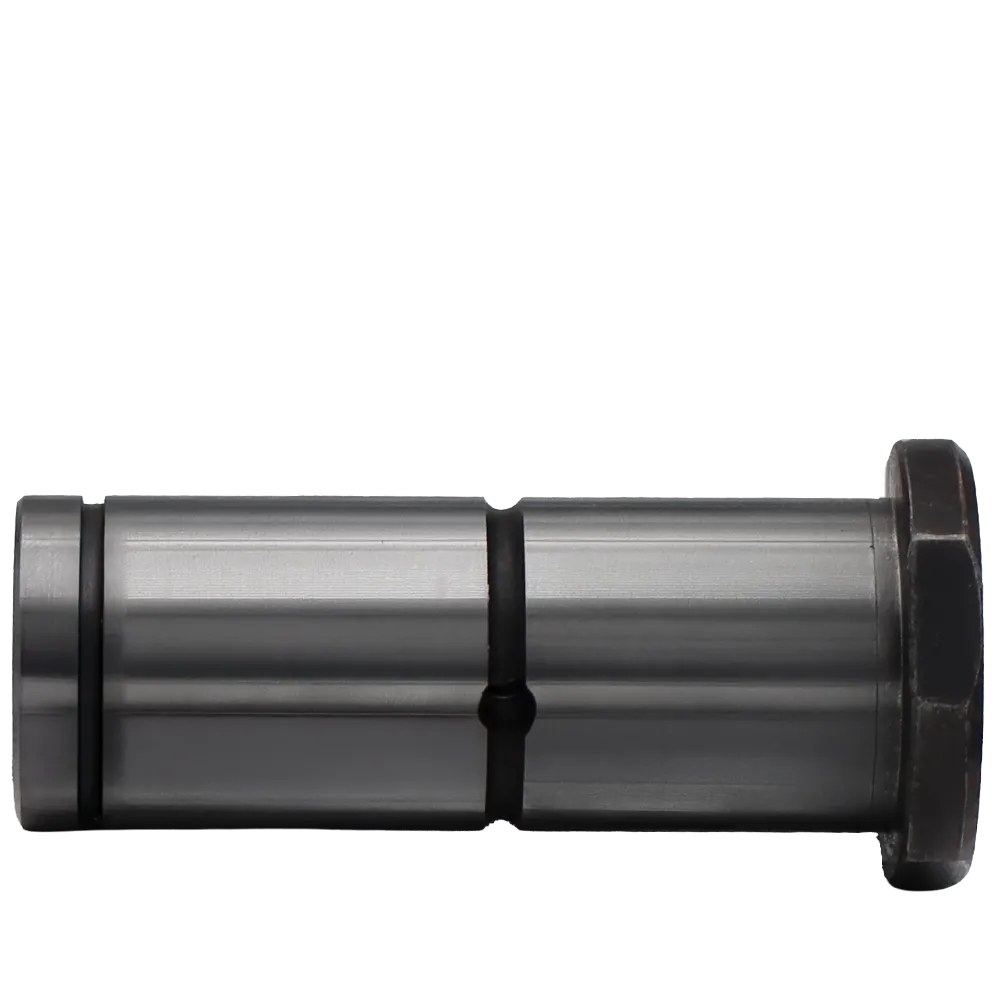

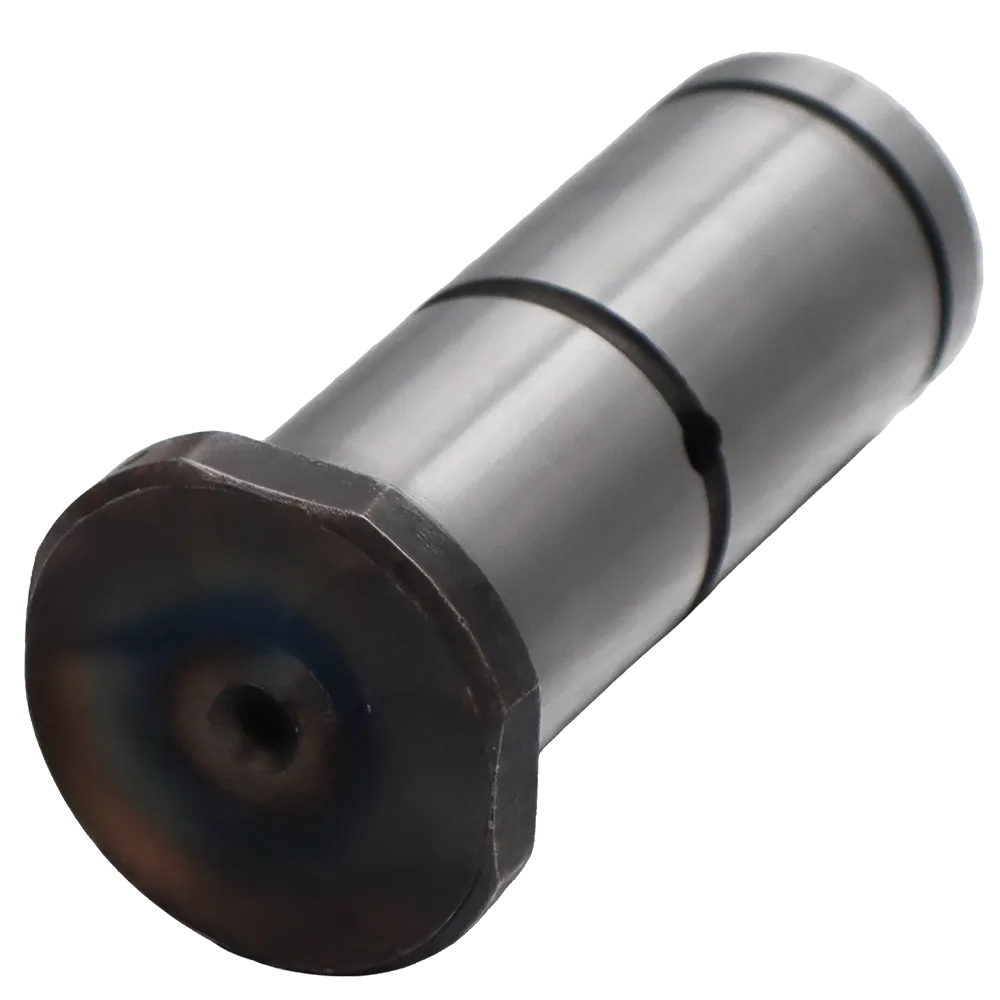

3216295800 Pin – 3216 2958 00 PIN ATLAS COPCO

The 3216 2958 00 PIN ATLAS COPCO is one of the most structurally critical components within the mechanical linkage of Atlas Copco rock drilling systems. Designed to withstand repetitive load cycles, torque variations, high-frequency vibration, and abrasive environmental conditions, this precision-machined pin plays a vital role in securing, aligning, and guiding moving assemblies. Whether installed in underground mining rigs, surface drill rigs, crawler rigs, or heavy hammer mechanisms, the 3216295800 Pin ensures the integrity, consistency, and stability required for mission-critical drilling operations.

At 3GEN Export, we supply the 3216 2958 00 PIN ATLAS COPCO as an OEM-grade component engineered with extreme durability, accuracy, and reliability in mind. Our products are used globally across drilling fleets, ensuring that operators experience smooth mechanical performance, minimal downtime, and long-term operational consistency. With worldwide delivery in just 5 working days, 3GEN Export continues to be the preferred sourcing partner for heavy machinery spare parts.

Overview of the 3216 2958 00 PIN ATLAS COPCO

The 3216 2958 00 PIN ATLAS COPCO is a precision pin developed to secure structural components within drilling assemblies. Its function typically involves:

• Maintaining mechanical alignment between shafts, linkages, and load-bearing parts

• Absorbing dynamic forces within rock drill mechanisms

• Ensuring smooth movement between interacting components

• Reducing wear by distributing force evenly

• Preventing mechanical play, vibration, and misalignment

Manufactured from high-tensile alloy steel, the 3216295800 Pin exhibits exceptional resistance to shear forces, surface friction, corrosion, and thermal stress caused by high-frequency drilling operations.

In drilling environments, especially those involving hard and abrasive rock formations, the mechanical integrity of the pin is essential. If the pin wears prematurely, the connected components become misaligned, leading to reduced drilling precision, increased vibration, and potentially costly system damage. The 3216 2958 00 PIN ATLAS COPCO is specifically engineered to avoid such failures.

Engineering & Material Composition

Every 3216295800 Pin is machined from a high-strength alloy steel chosen for:

• High yield strength

• Fatigue resistance

• Excellent impact toughness

• Dimensional stability

• Corrosion resistance

The material undergoes controlled heat treatment cycles to ensure:

• Hard surface layer for resisting wear

• Ductile core for absorbing impact loads

• Optimal hardness distribution for long service life

• Resistance to galling and seizing

This careful balance between surface hardness and core toughness is what enables the 3216 2958 00 PIN ATLAS COPCO to perform reliably under sustained mechanical stress.

Surface Treatment

To extend service life even further, the surface undergoes:

• Micropolishing

• Anti-corrosion coating

• Chamfering for smooth assembly

• Deburring to prevent scoring and premature wear

This ensures seamless integration with the mating components inside Atlas Copco drilling systems.

Mechanical Role of the 3216295800 Pin

In drilling applications, the 3216 2958 00 PIN ATLAS COPCO often functions as:

• A rotational axis pin

• A load-distribution pin

• A guide pin

• A pivot support

• A retention pin for holding structural elements in place

Regardless of its specific placement, the pin guarantees:

• Precise alignment

• Stable operational movement

• Reduced vibration

• Extension of component life

Importance in Drilling Operations

A failure of this pin would typically lead to:

• Rapid wear of the mating parts

• Loss of drilling accuracy

• Mechanical vibration escalation

• Potential shutdown of the drilling process

Thus, replacing worn pins with high-quality OEM-grade parts is essential for maximizing machine uptime.

Manufacturing Tolerances & Dimensional Accuracy

The 3216295800 Pin is produced with extremely fine tolerances, ensuring:

• Perfect cylindrical accuracy

• Consistent diameter along full length

• Optimized fit with mating holes

• Precision threading (if required for mounting)

• Leak-free sealing (when used in hydraulic systems)

Machining tolerances of ±0.01 mm or better are maintained, ensuring stability and long-term reliability.

Compatible Atlas Copco Models

The 3216 2958 00 PIN ATLAS COPCO is commonly used in:

• Atlas Copco COP series drilling mechanisms

• Atlas Copco surface drilling rigs

• Underground rock drilling rigs

• Hydraulic drilling systems

• Rotary and percussive drill units

• Rock hammer assemblies

While compatibility varies by configuration, this pin is frequently installed in:

• COP 1038

• COP 1238

• COP 1838

• COP 2238

• COP 2550

• COP 2560

• Various ROC drilling rigs

• Boomer and Simba series

If you want the exact compatibility list, simply send us your machine model and serial number , 3GEN Export will cross-verify it for you.

Estimated Weight of the 3216 2958 00 PIN ATLAS COPCO

Based on its geometry, shaft thickness, and alloy steel density, the estimated weight of the 3216295800 Pin is:

Weight: ~0.95 – 1.20 KG

(If you require the exact weight for shipping or load calculations, 3GEN Export can provide the verified value.)

Applications in Rock Drilling Systems

The 3216 2958 00 PIN ATLAS COPCO is essential in the following applications:

1. Drifter Assemblies

Drifters rely on rhythmic high-frequency blows. Pins hold the internal parts in alignment despite extreme vibration.

2. Feed System Linkages

Pins balance the mechanical load as the feed beam advances and retracts.

3. Hammering Mechanisms

Impact energy creates intense stress waves. The pin absorbs shock and maintains structural unity.

4. Rod Handling Systems

Pins keep rod grippers, jaws, and guide elements secured.

5. Stabilizing Rock Drill Bodies

Correct placement of pins prevents unwanted lateral movement and vibration.

Benefits of Choosing the 3216295800 Pin from 3GEN Export

Buying your 3216 2958 00 PIN ATLAS COPCO from 3GEN Export guarantees:

OEM-grade quality

Every pin matches Atlas Copco performance standards.

Faster lifespan

Material hardness and geometric precision ensure maximum durability.

High reliability

Perfect for harsh mining and construction environments.

Lower maintenance cost

You will reduce the frequency of component replacements.

Global 5-day delivery

No matter where your project is located, we deliver quickly.

Expert technical support

Our engineers can confirm compatibility and suggest complementary parts.

Technical Specifications (Summary)

Why 3GEN Export Is the Preferred OEM Supplier

For more than a decade, 3GEN Export has supplied the global market with high-quality heavy machinery parts for:

• Atlas Copco

• Sandvik

• Caterpillar

• Komatsu

• Volvo

• And more leading manufacturers

What sets us apart?

• Our products meet or exceed OEM standards

• We maintain massive on-hand inventory for fast shipping

• We ship worldwide in only 5 working days

• We support more than 2,500 mining and construction companies globally

Your operations deserve reliability , and 3GEN Export ensures you get it.

Conclusion – 3216 2958 00 PIN ATLAS COPCO

The 3216295800 Pin (3216 2958 00 PIN ATLAS COPCO) is a vital component engineered to sustain structural integrity, minimize drilling vibration, and support long-term stability of Atlas Copco drilling systems. When sourced from 3GEN Export, you receive OEM-grade performance, exceptional durability, and rapid global delivery.

This pin is more than a simple cylindrical piece of metal, it is the backbone of operational precision in rock drilling machinery. Replacing worn pins with high-quality OEM-grade components is essential for maintaining uptime, drilling accuracy, and equipment longevity.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
