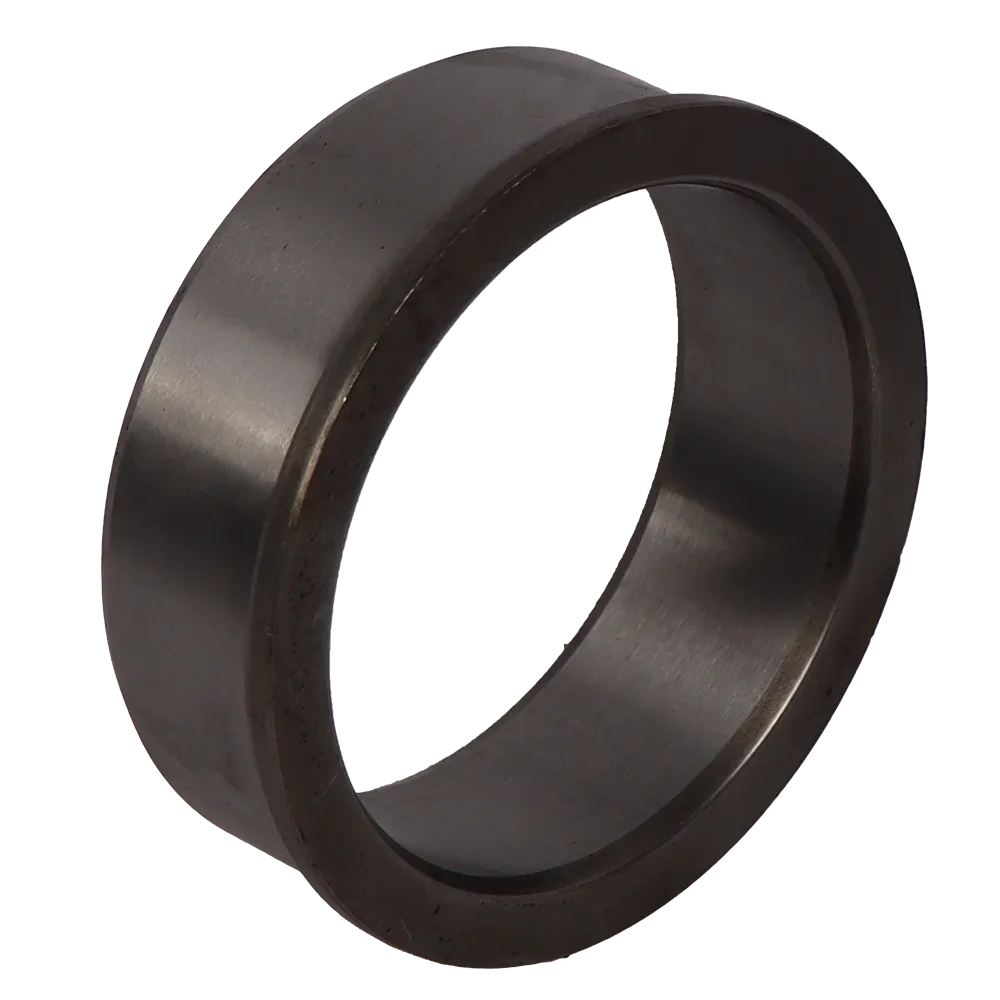

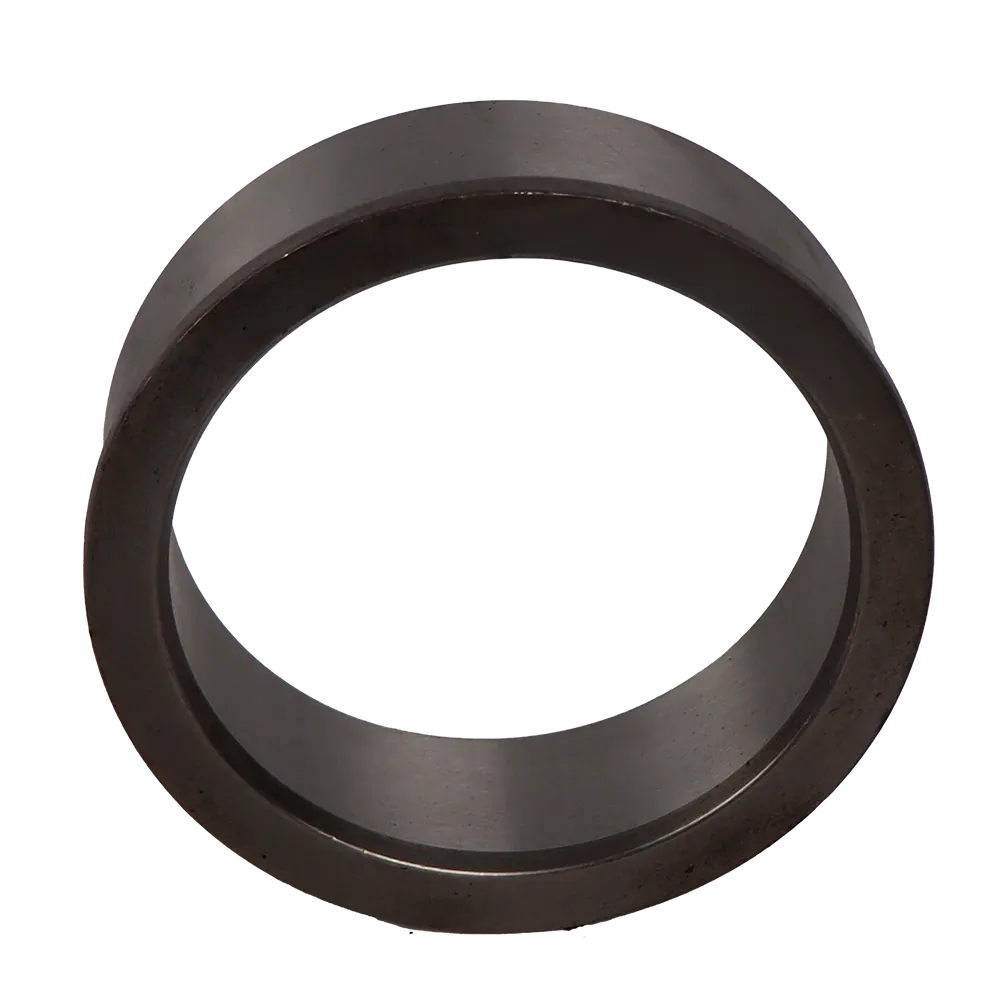

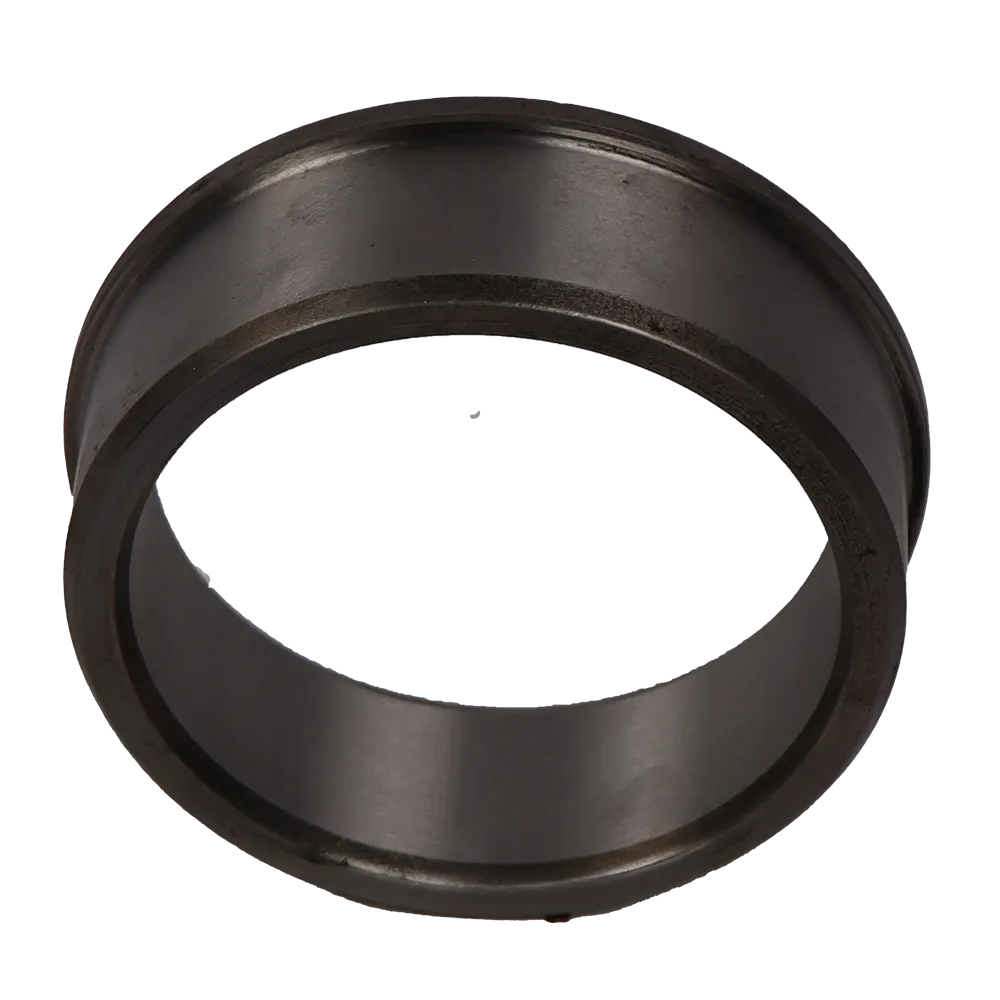

421-46-12331 BUSHING
Description
The Komatsu 421-46-12331 bushing, also written 4214612331, is a cylindrical plain bearing that sits in the front frame centre hinge, at the hinge pin joint. It gives the pin a low-friction, replaceable surface to turn against. What it does at the hinge The bushing carries the load between the hinge pin and its bore and sets the running clearance of the joint. It is the part meant to wear, so the pin and the frame do not have to. How it wears Clearance grows and the bore goes oval, which shows up as slop and misalignment in the hinge. Scoring or seizure, from poor lubrication or dirt getting in. Edge loading and fatigue, where the pin is out of line or the bushing was pressed in out of round. Fretting and corrosion at the press-fit seat. When to replace it Check the hinge at scheduled service for measurable clearance and scoring. Keep the grease path clear and the seals that hold the lubricant in intact. Replace the bushing together with its pin once clearance goes past the machine maker's wear limit. A new bushing on a worn pin wears out quickly.
Frequently Asked Questions
What should I send to check the fit before ordering?
Send the machine model and serial number, plus the number stamped on the old bushing if it is still readable. A photo of the hinge pin joint helps too.
How long does shipping take and what does it cost?
Shipping is free on every order, worldwide, and every order ships with tracking. Orders are prepared in 1–2 days and are in transit 4–5 days, typically 5–7 days door-to-door.
