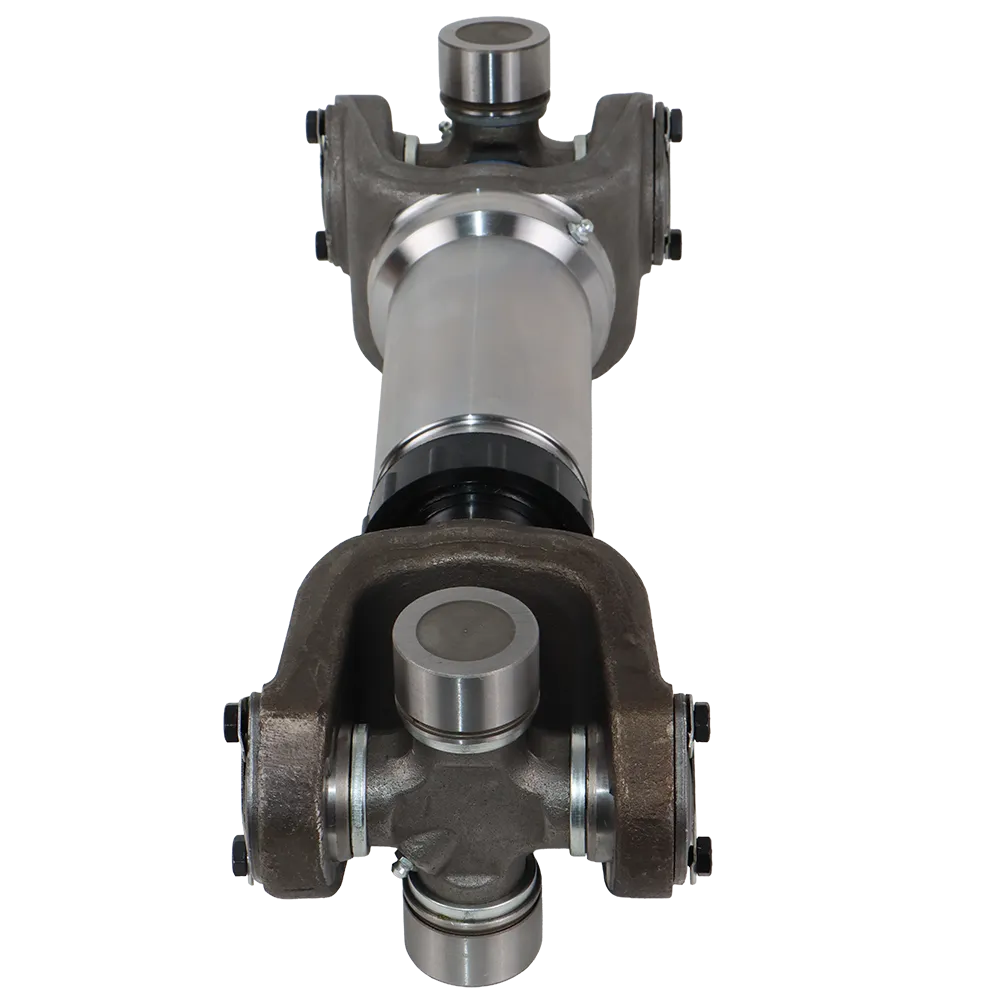

5V2975, 5V-2975 SLIP JOINT GROUP CATERPILLAR

Heavy-Duty Slip Joint Assembly for Caterpillar Powertrain Systems

The 5V2975 SLIP JOINT GROUP CATERPILLAR (also known as 5V-2975) is a high-performance driveline component designed to provide smooth power transmission and flexibility between the connected shafts of Caterpillar machinery. Built to handle extreme torque loads, this slip joint allows axial movement while maintaining rotational continuity, ensuring consistent drivetrain performance in off-road and construction environments.

Supplied by 3GEN Export, this OEM-quality assembly is precision-engineered to meet the durability and operational requirements of Caterpillar machines. Crafted from forged steel with precision machining and a corrosion-resistant finish, the 5V2975 SLIP JOINT GROUP CATERPILLAR offers exceptional reliability, alignment stability, and long-lasting service life under the most demanding working conditions.

Function and Importance of the 5V2975 SLIP JOINT GROUP CATERPILLAR

The 5V2975 SLIP JOINT GROUP CATERPILLAR serves as a key connection within the driveline or power transmission system of heavy machinery. Its primary function is to accommodate variations in shaft length caused by vibration, load shifts, or movement of machine components.

This part allows longitudinal movement (slip) without interrupting rotational motion, ensuring smooth torque transfer between the transmission and axle shafts. It helps prevent drivetrain misalignment, reduces stress on connected parts, and minimizes wear caused by rigid connections.

In Caterpillar machinery, where machines operate on uneven terrain and under fluctuating loads, this flexibility prevents damage and enhances overall efficiency and operational safety.

Key Features and Benefits

1. Forged Steel Construction

The 5V2975 SLIP JOINT GROUP CATERPILLAR is manufactured from high-tensile forged steel to withstand dynamic torque, shock loads, and high-speed rotation. This provides superior mechanical integrity and long service life.

2. Precision Splined Shaft Design

The internal and external spline sections are precisely machined for a snug fit and smooth axial motion. This ensures stable power transfer and minimizes vibration across the driveline.

3. Universal Joint Compatibility

Both ends of the slip joint feature universal yokes that connect seamlessly with driveshafts, providing flexibility for angular misalignments and movement during operation.

4. Lubrication and Sealing

Equipped with grease fittings and dust seals, the 5V2975 SLIP JOINT GROUP CATERPILLAR maintains optimal lubrication, reducing wear and preventing contamination from dirt or moisture.

5. Corrosion-Resistant Finish

The steel surfaces are treated with a phosphate and anti-corrosive coating, ensuring resistance to oxidation and rust even in humid or abrasive environments.

6. OEM Specification Compatibility

As an OEM-standard component supplied by 3GEN Export, this part fits directly into Caterpillar assemblies without modification or additional alignment, guaranteeing reliable performance.

Technical Specifications

Compatible Caterpillar Models

The 5V2975 SLIP JOINT GROUP CATERPILLAR is used in a variety of Caterpillar machinery models that require flexible driveline coupling for efficient torque transfer. This includes:

• Caterpillar D5H, D6H, and D7G Track-Type Tractors

• Caterpillar 140G, 12G, and 140H Motor Graders

• Caterpillar 966E, 966F, and 980C Wheel Loaders

• Caterpillar 320D, 325C, and 330D Excavators

• Caterpillar 815F and 826G Compactors

• Caterpillar 740B and 745C Articulated Trucks

• Caterpillar 950H and 962G Wheel Loaders

• Caterpillar 973D Track Loaders

• Caterpillar C9 and C13 Engine Powertrain Assemblies

These models depend on the 5V2975 SLIP JOINT GROUP CATERPILLAR for efficient power transmission, stable torque delivery, and vibration damping across challenging operating terrains.

Engineering and Manufacturing Quality

CNC Precision Machining

The 5V2975 SLIP JOINT GROUP CATERPILLAR is produced using CNC machining to maintain precise tolerances. This process ensures smooth telescopic motion, optimal spline engagement, and balanced torque distribution.

Heat Treatment for Durability

The steel is heat-treated to improve tensile strength and hardness. The treated splines and yokes offer enhanced resistance to fatigue, torsion, and surface wear.

Surface Protection

Each part undergoes phosphate treatment followed by corrosion-resistant coating, providing long-term protection against moisture, chemicals, and high operating temperatures.

Dynamic Balancing

Every slip joint is dynamically balanced before shipment, ensuring minimal vibration during high-speed rotation and smoother machine operation.

Functional Advantages

• Smooth Torque Transfer: Maintains rotational consistency under variable shaft positions.

• Compensates Axial Movement: Prevents damage caused by shaft length changes due to vibration or load variation.

• Reduces Vibration: Enhances operator comfort and reduces wear on adjoining parts.

• Easy Maintenance: Grease fittings ensure long service intervals with minimal maintenance.

• OEM Fitment: Perfect alignment and compatibility with Caterpillar factory specifications.

Applications in Caterpillar Systems

The 5V2975 SLIP JOINT GROUP CATERPILLAR is found in multiple key systems across Caterpillar machinery, including:

• Drivetrain Assemblies: Connecting transmission output shafts to final drive axles.

• Powertrain Couplings: Absorbing misalignment and ensuring constant torque transfer.

• Chassis & Articulated Frames: Managing movement and flexibility between frame sections.

• Hydraulic Drive Lines: Providing alignment stability between driven components.

Its robust design allows it to perform reliably under heavy vibration and torsional stress, making it indispensable for high-performance machinery in mining, construction, and earthmoving operations.

Installation and Maintenance

Installation Steps

1. Clean all splines and mating components thoroughly before installation.

2. Slide the 5V2975 SLIP JOINT GROUP CATERPILLAR into position, aligning splines correctly.

3. Secure the yokes to the driveline shafts using OEM torque specifications.

4. Apply grease through the zerk fittings before initial operation.

5. Test rotation manually to confirm smooth operation before powering the machine.

Maintenance Guidelines

• Lubrication Frequency: Every 250 operating hours (depending on environment).

• Inspection: Check for play, noise, or vibration during rotation.

• Replacement: Recommended if spline wear or bearing looseness is detected.

• Storage: Keep in a dry, clean environment with protective caps on spline ends.

Following these practices helps maintain the performance and longevity of the slip joint assembly.

Testing and Quality Control

Every 5V2975 SLIP JOINT GROUP CATERPILLAR from 3GEN Export undergoes a comprehensive quality assurance process that includes:

• Dimensional Verification: Ensures fitment accuracy (±0.02 mm).

• Torque Testing: Evaluates load capacity under maximum stress.

• Vibration Simulation: Tests performance under high-frequency oscillations.

• Corrosion Resistance Testing: Confirms coating effectiveness after 120-hour salt spray exposure.

• Dynamic Endurance Testing: Simulates continuous operation to validate lifespan performance.

Each product must meet or exceed OEM performance benchmarks before being certified for shipment.

Environmental and Safety Standards

Manufactured under ISO 9001 (Quality Management) and ISO 14001 (Environmental Management) certifications, the 5V2975 SLIP JOINT GROUP CATERPILLAR complies with RoHS and REACH standards, ensuring environmentally safe materials and sustainable production methods.

Packaging and Delivery

Each unit is individually sealed in anti-corrosion film, cushioned with protective foam, and packaged in export-grade crates for international shipping. All parts are labeled with their part number (5V2975) for easy identification and tracking.

Delivery Time: Global shipping within 5 working days through 3GEN Export’s international logistics network.

Why Choose 3GEN Export

3GEN Export is a trusted OEM supplier of heavy machinery components for Caterpillar, Komatsu, Volvo, Sandvik, and other global brands.

• OEM-Grade Quality: Manufactured to meet or exceed Caterpillar standards.

• Global Delivery: Fast shipping to 120+ countries within 5 working days.

• Expertise: Decades of experience in supplying high-performance spare parts.

• Reliability: Consistent stock availability and quality assurance.

• Customer Support: Dedicated technical service for compatibility and installation assistance.

When you order the 5V2975 SLIP JOINT GROUP CATERPILLAR from 3GEN Export, you’re investing in precision, performance, and trust.

Summary

The 5V2975 SLIP JOINT GROUP CATERPILLAR is a premium-quality driveline assembly designed to optimize power transmission and mechanical flexibility in Caterpillar machinery. Its precision-forged construction, corrosion-resistant finish, and balanced spline design ensure smooth performance and durability under demanding field conditions.

Supplied globally by 3GEN Export, this component offers OEM-level performance, reliability, and fitment, delivered anywhere in the world within 5 working days.

Order your 5V2975 SLIP JOINT GROUP CATERPILLAR today from 3GEN Export — your trusted global OEM supplier for heavy machinery parts.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
