61N8-05010 PIN

The 61N8-05010 PIN HYUNDAI is a critical component used in the pivot and articulation mechanisms of HYUNDAI heavy-duty excavators. This heavy-duty steel pin is designed to handle extreme operating loads, repetitive motion, and challenging environments typically found in construction, demolition, and mining operations.

Functioning as a primary load-bearing link in hydraulic systems, the 61N8-05010 PIN HYUNDAI ensures precise fitment and operational integrity when connecting the boom, arm, or bucket linkage. Manufactured to match original specifications and quality, this pin is essential for maintaining structural durability, smooth pivot motion, and overall machine performance.

---



Technical Specifications

• Product Name: Pin

• Part Number: 61N8-05010

• Material: Heat-treated high-strength alloy steel

• Surface Treatment: Induction hardened, precision-ground

• Finish: Anti-corrosion coating + orange paint on the flange

• Diameter: Approx. 60 mm

• Length: Approx. 180–220 mm

• Flange Type: Oval with dual bolt holes

• Grease Channel: Integrated greasing hole for in-service lubrication

• Welding Surface: Polished end for secure installation

• Fitment Type: Press-fit into bushing assembly

• Application: Excavator boom-to-arm or arm-to-bucket pivot joint

---



Detailed Description

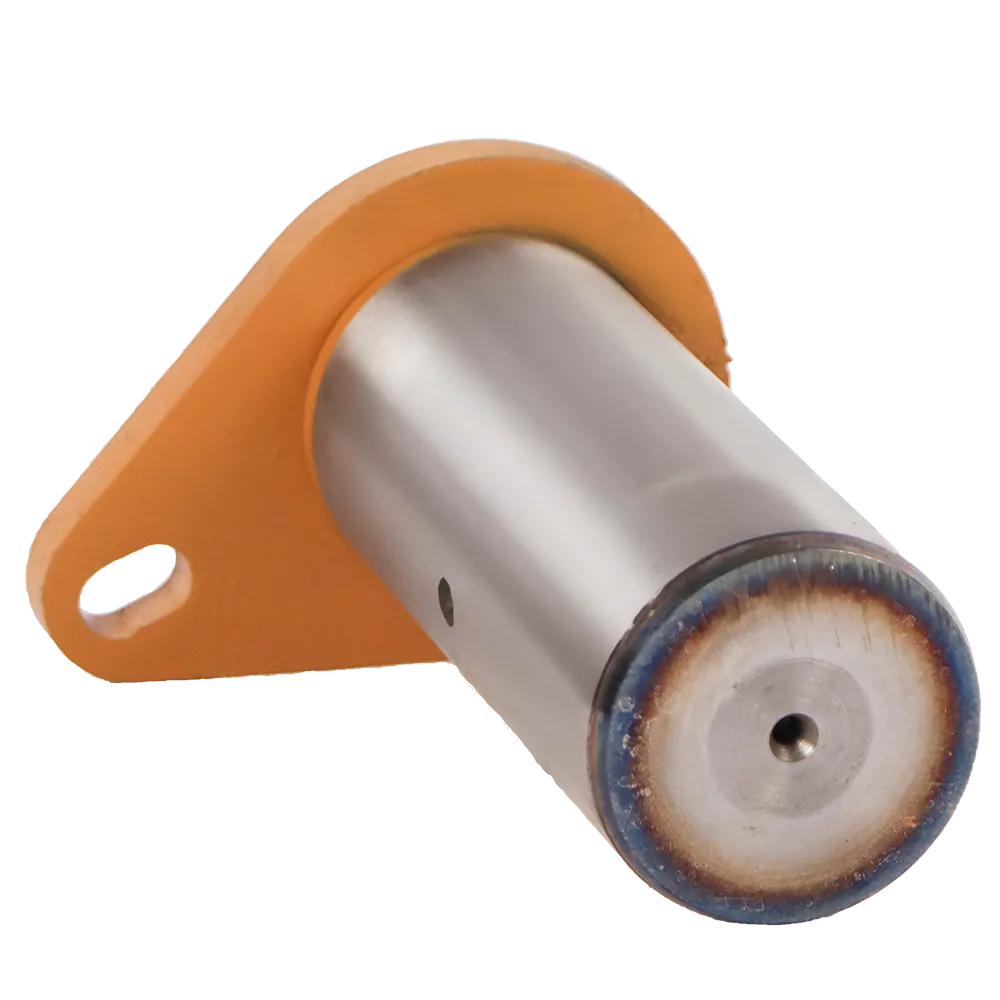

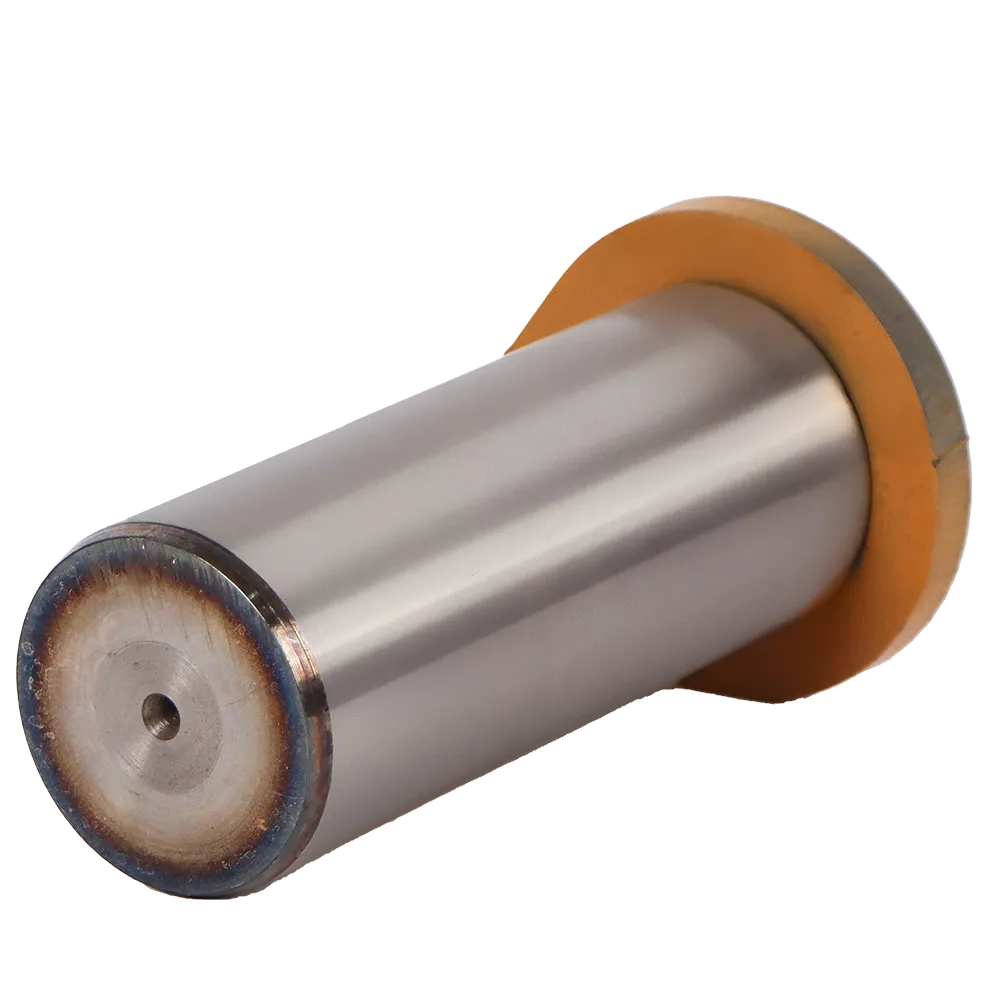

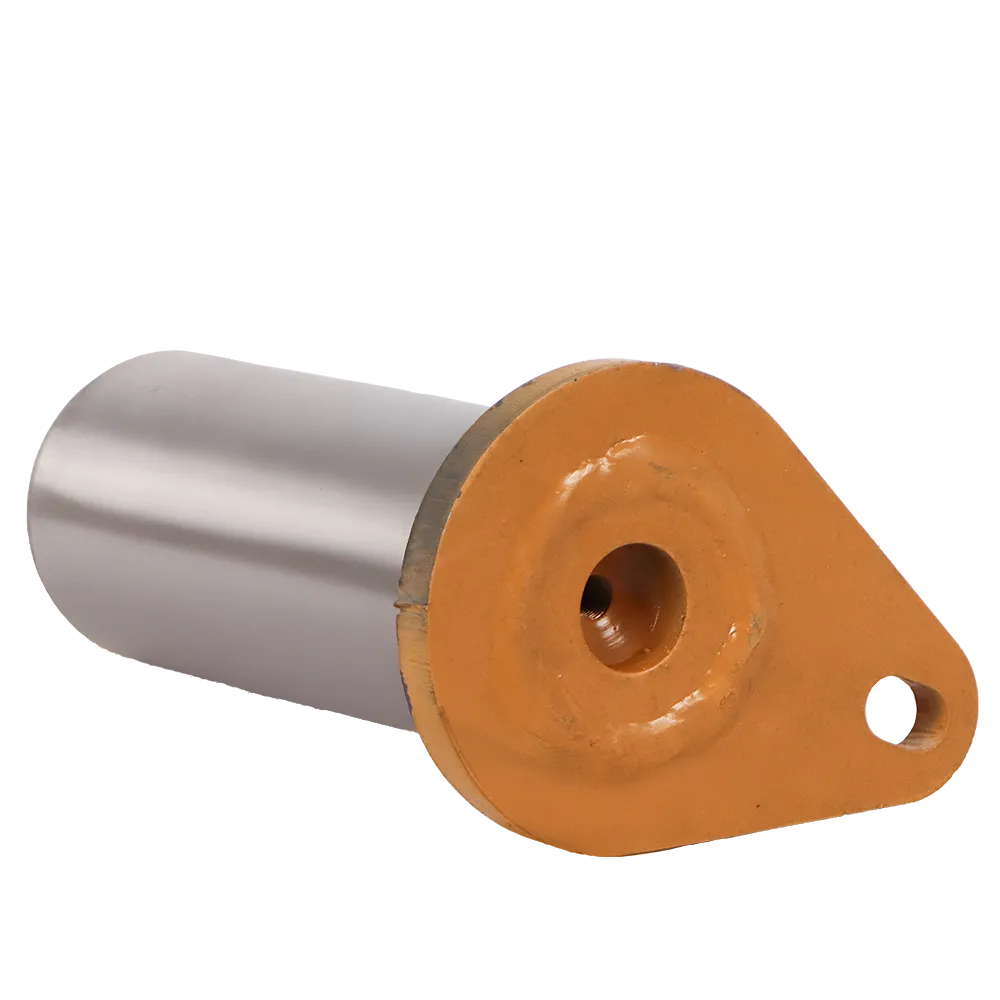

The 61N8-05010 PIN HYUNDAI is specifically designed to serve as the rotating or pivoting shaft that connects major structural components in excavators. It is engineered from a durable alloy steel base material, then subjected to induction hardening for surface wear resistance. The design includes an orange flange with pre-drilled mounting holes for easy alignment and secure installation.

The pin surface is precision-ground to achieve exact tolerances, ensuring a snug fit inside matching bushings, which eliminates unnecessary play and reduces stress points. Additionally, the integrated grease channel allows for consistent lubrication, minimizing friction, heat, and wear over time.

This pin is ideal for HYUNDAI machines operating in:

• Earthmoving

• Quarrying

• Road construction

• Foundation work

• General civil engineering

Its robustness and longevity make it a preferred choice for both field service repairs and preventive maintenance tasks.

---



Key Features

• High Load Tolerance: Handles dynamic loads, lateral forces, and vibration with ease.

• Precision Fit: Manufactured to exact standards for perfect alignment with bushings and bores.

• Hardened Surface: Resists abrasion, scarring, and metal fatigue under stress.

• Flanged Design: Reinforced mounting for stable operation and load distribution.

• Serviceable: Includes lubrication port for grease injection, extending operational life.

• OEM-Standard Replacement: Compatible with multiple HYUNDAI excavator models.

• Fast Delivery Worldwide: Supplied by 3GEN Export with global shipping in just 5 working days.

---



Compatible HYUNDAI Models

The 61N8-05010 PIN HYUNDAI is commonly used in mid- to large-sized HYUNDAI excavators, especially in boom, arm, and bucket linkage areas. Confirmed compatible models include:

• HYUNDAI R210LC-7

• HYUNDAI R210NLC-7

• HYUNDAI R220LC-9S

• HYUNDAI HX220L

• HYUNDAI R225LC-7

• HYUNDAI R210W-9

• HYUNDAI R215-9

This pin is typically installed in the arm-to-boom or arm-to-bucket joint. However, final verification is recommended based on your machine’s service manual or serial number.

---



Role in Excavator Mechanics

Pins are the backbone of any excavator’s pivot system. They serve as the mechanical axis around which boom arms and buckets rotate. Without a properly manufactured pin like the 61N8-05010, premature wear, misalignment, and costly machine downtime can occur.

This pin:

• Transmits the load from hydraulic cylinders to linkages.

• Maintains consistent articulation alignment.

• Works in tandem with bushings to reduce surface friction.

• Extends overall machine life by reducing wear in key joints.

---



Maintenance & Installation Guidelines

Regular maintenance ensures optimal function and longevity of pins and their corresponding bushings. Here’s how to manage the 61N8-05010 PIN HYUNDAI:

• Inspection Interval: Every 500 hours or during bushing replacement.

• Installation: Use a hydraulic press or pin tool. Align flange bolt holes before final seating.

• Lubrication: Apply heavy-duty grease through the center hole at service intervals.

• Replacement Tip: Replace with bushings as a pair to avoid uneven wear.

Any signs of play, scoring, or noise during motion indicate the need for immediate inspection or replacement.

---



Why Choose 3GEN Export

At 3GEN Export, we understand the crucial role every part plays in your machinery. That’s why we provide the 61N8-05010 PIN HYUNDAI as a top-quality, OEM-compliant spare part ready for global dispatch.

• OEM-grade engineering for critical applications

• Reliable stock with no delay

• Global delivery in just 5 working days

• Technical support for fitment and application guidance

• Preferred by contractors, rental fleets, and service workshops worldwide

We don’t just supply parts—we deliver trust with every shipment.

---



Conclusion

The 61N8-05010 PIN HYUNDAI is engineered for strength, durability, and precision. Whether you’re replacing a worn-out part or performing preventive maintenance, this pin provides the assurance your HYUNDAI excavator will operate at full capacity. Backed by 3GEN Export’s worldwide logistics and customer-focused service, it’s the smart choice for professionals who demand performance and reliability.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
