6343267375 / 63432-67375 BUSHING KAWASAKI

The fastest way a high-tonnage loader turns into an unpredictable, noisy, fuel-hungry machine is not a dramatic failure. It is slow, silent wear happening inside a pivot point. The joint keeps moving, the operator keeps working, and the bore keeps losing its perfect circle—until one day the machine feels “loose,” the bucket motion becomes less precise, and a simple service job becomes a structural repair.

63432-67375 BUSHING KAWASAKI is designed to prevent that story.

This part (also written as 6343267375) is a heavy-duty, precision-machined bushing engineered to sit between a pin and a housing in Kawasaki wheel loader assemblies. It carries load, controls alignment, reduces friction, and protects high-value components from direct contact during repeated articulation. In simple terms: it is the replaceable surface you want wearing out, so the arm, chassis, or bracket does not.

3GEN Export supplies 63432-67375 BUSHING KAWASAKI as an OEM-standard replacement and delivers worldwide in 5 working days, helping you turn downtime into a planned stop instead of an operational crisis.

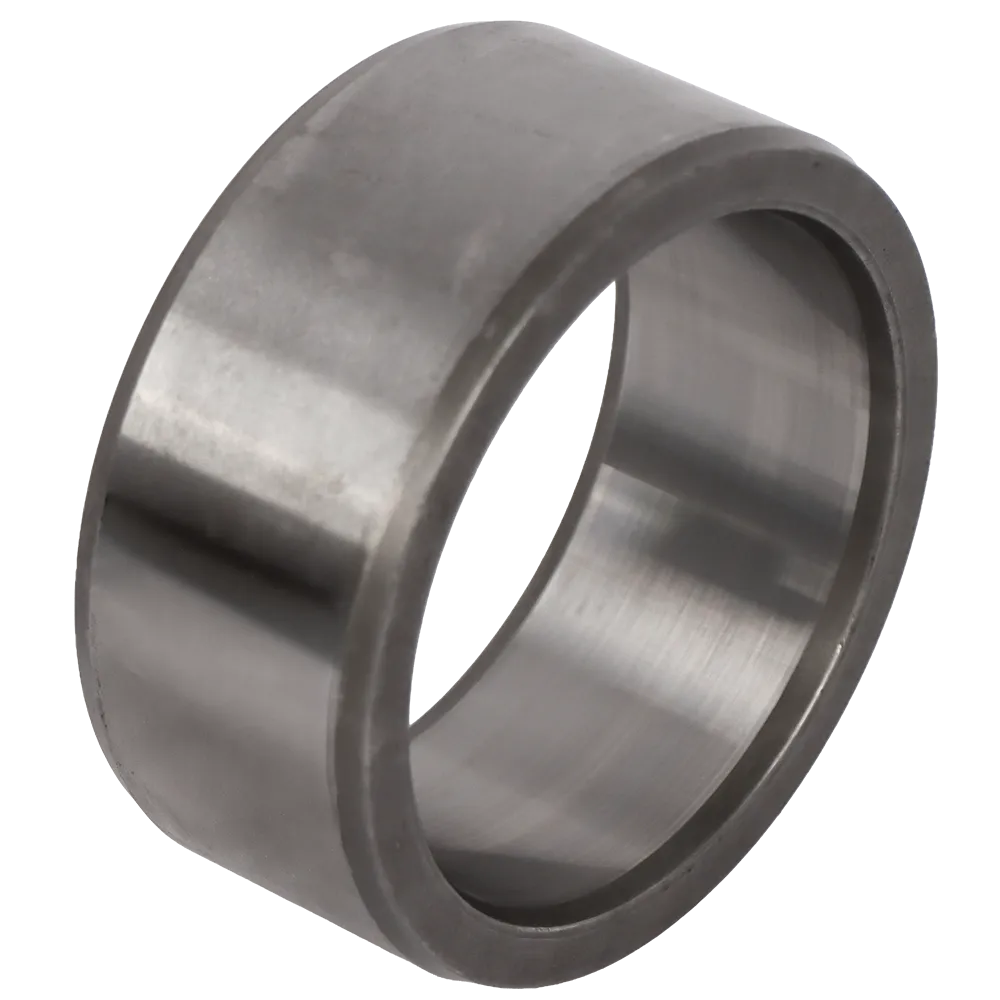

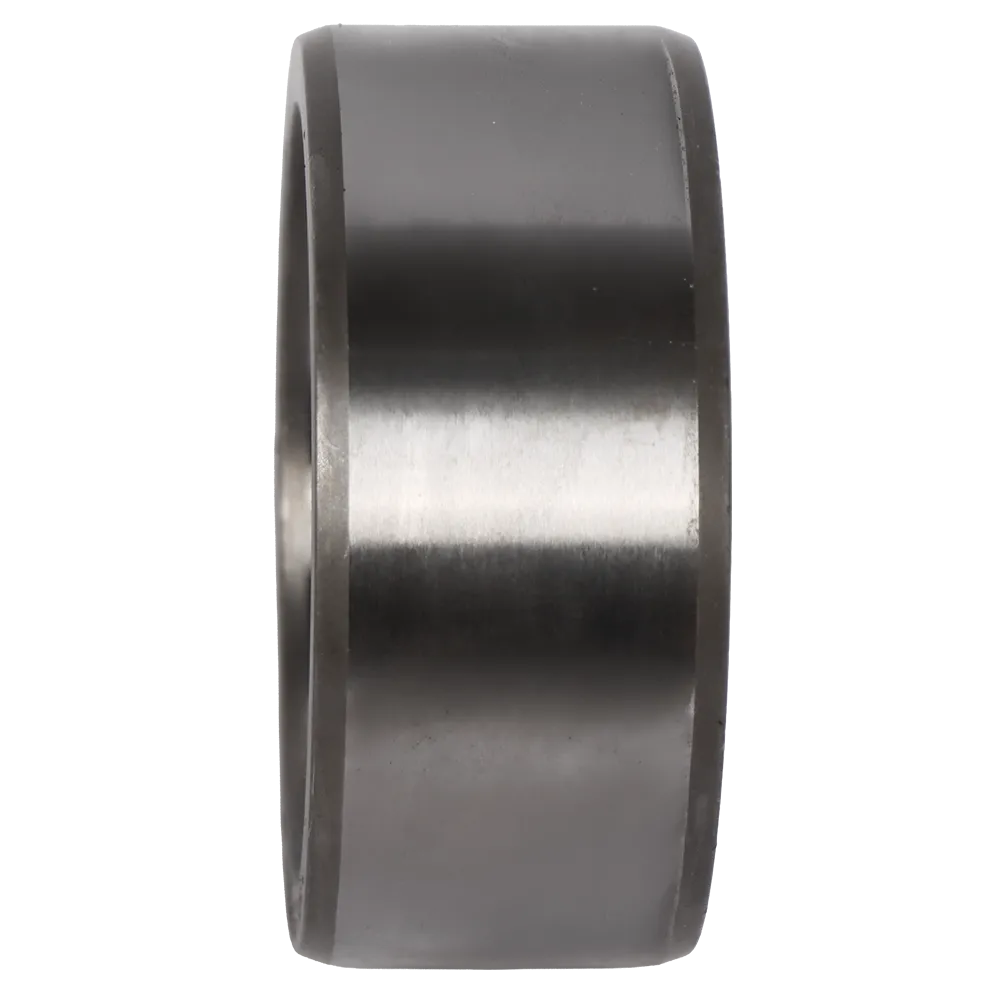

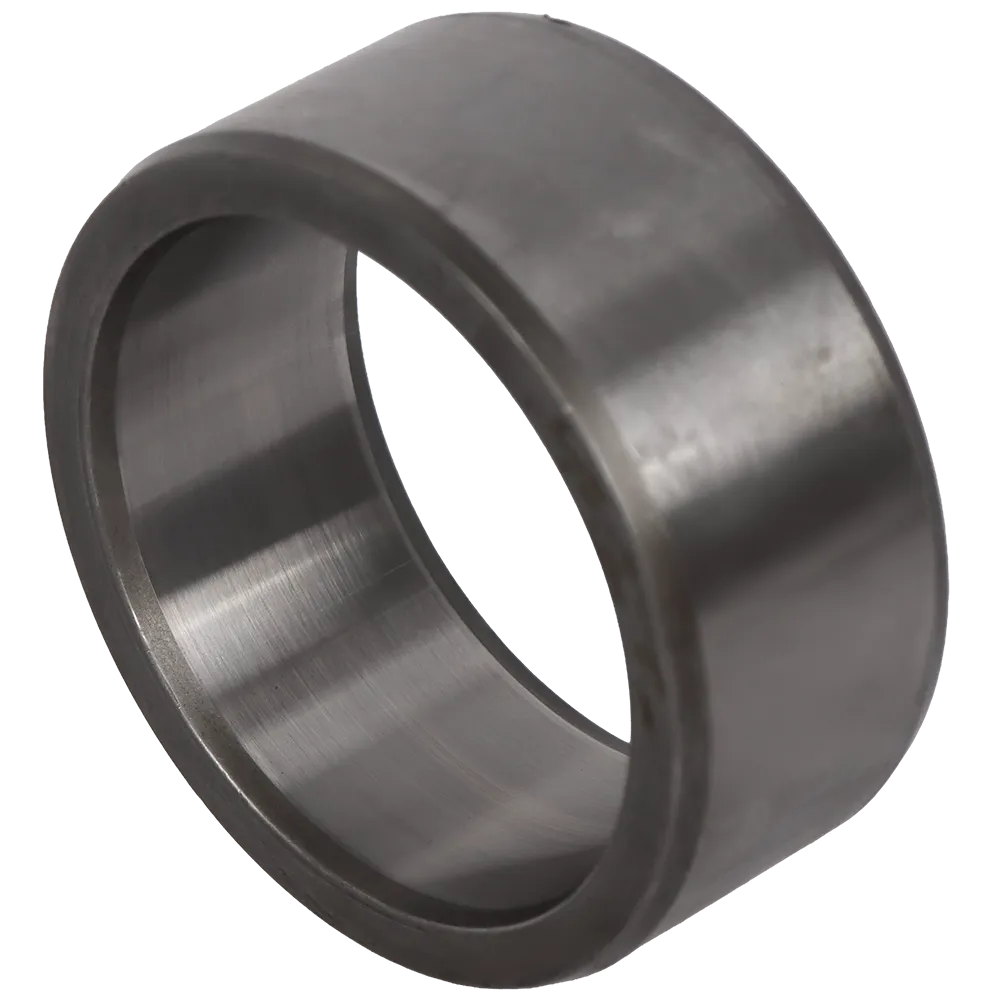

What you can tell from the images

The images show a robust cylindrical bushing with:

A thick-wall body for high load capacity

A smooth, finely finished inner diameter (bearing surface)

Clean, square faces for stable seating in the bore

A consistent outer diameter designed for press-fit installation

That design profile is common in loader pivot locations where the motion is oscillating (back-and-forth articulation) rather than continuous rotation, and where shock loads are frequent. In these joints, the bushing is not a “simple sleeve.” It is a sacrificial wear interface that prevents the parent metal from taking damage.

When you install 63432-67375 BUSHING KAWASAKI correctly and maintain lubrication, you preserve joint geometry, reduce pin wear, and keep the machine’s handling sharp—especially in demanding conditions like quarry work, demolition, scrap yards, and high-cycle material handling.

What 63432-67375 BUSHING KAWASAKI does inside a Kawasaki loader

A wheel loader’s performance is not only engine power or hydraulic flow. It is also precision: how tight the linkage feels, how stable the bucket is under load, and how accurately the machine responds to small control inputs.

63432-67375 BUSHING KAWASAKI supports that precision through four critical functions.

1) It prevents direct metal-to-metal contact

Pins are hardened, housings and bores are not always as forgiving. Without a proper bushing, the pin starts to work directly against the bore. That is when wear becomes expensive because you are no longer replacing a small part—you are restoring a major structure.

63432-67375 BUSHING KAWASAKI creates a controlled bearing surface so wear stays contained in a replaceable component.

2) It stabilizes alignment and load path

A worn bushing does not only create clearance; it creates misalignment. As clearance grows, the pin shifts under load. That shift changes the load path through the joint, increasing edge loading and accelerating wear on both pin and bore.

By keeping tolerances stable, 63432-67375 BUSHING KAWASAKI helps the joint carry load evenly, reducing localized stress and preventing the joint from “walking.”

3) It reduces friction and heat

Friction is a hidden cost. It increases operating temperature in the joint, thins grease film, and invites scoring. With a proper finish and correct fit, 63432-67375 BUSHING KAWASAKI supports smoother articulation and more stable lubrication behavior.

4) It protects the machine from progressive damage

Bushing wear is predictable. Bore wear is not. When a bore wears, the machine can lose structural integrity at a pivot point, requiring welding, line boring, oversize pins, or complete component replacement.

Replacing 63432-67375 BUSHING KAWASAKI on schedule is one of the most effective ways to avoid that escalation.

Where 6343267375 / 63432-67375 BUSHING KAWASAKI is used

Online parts references associate 63432-67375 BUSHING KAWASAKI with Kawasaki wheel loader families such as 70ZV, 80ZV, and 90ZV.

In addition, a Kawasaki 85ZV-2 parts catalog listing includes 63432-67375 BUSHING in a rear chassis group, indicating usage within chassis/pivot-related assemblies on that model family.

From a practical maintenance perspective, parts of this type commonly appear in:

Rear chassis pivot areas

Linkage joints where oscillating motion is constant

High-load connection points where alignment must remain stable under repeated shock

Because configurations can vary by serial range, region, and options, the most reliable confirmation is matching the part number 63432-67375 (or 6343267375) to your machine’s parts manual and serial number break.

Compatible Kawasaki models (commonly referenced)

Based on published compatibility notes, 63432-67375 BUSHING KAWASAKI is commonly referenced for these Kawasaki wheel loader models:

Kawasaki 70ZV wheel loader

Kawasaki 80ZV wheel loader

Kawasaki 90ZV wheel loader

Kawasaki 85ZV-2 (parts catalog listing includes 63432-67375 BUSHING)

Important note for your product page: keep both number formats visible. Some buyers search the hyphen format (63432-67375), others search the continuous format (6343267375). Including both improves discoverability across global markets.

Why OEM-standard manufacturing matters for 63432-67375 BUSHING KAWASAKI

In a loader pivot, millimeters matter. Even small tolerance errors can trigger a chain reaction of wear.

If the outer diameter is undersized, the bushing can rotate in the bore, damaging the housing.

If the outer diameter is oversized, press-fit installation can distort the bushing, tightening the inner diameter and increasing friction.

If the inner diameter is too loose, clearance grows quickly, impact loads rise, and pin wear accelerates.

If the inner diameter is too tight, grease film fails, heat increases, and scoring begins.

That is why 63432-67375 BUSHING KAWASAKI must be consistent in geometry, surface finish, and stability during press-fit. This is exactly how 3GEN Export approaches supply: OEM-standard replacement quality for heavy-duty field conditions, with worldwide delivery in 5 working days.

Typical symptoms of a worn pivot bushing

A pivot point rarely fails without warning. The signs appear gradually, often mistaken for “normal machine aging.”

Early-stage wear

Slight play when rocking the bucket or linkage

Dry squeak during articulation

Grease purging quickly or appearing contaminated

Subtle knock during load transitions

In early-stage wear, replacing 63432-67375 BUSHING KAWASAKI often restores tightness and prevents pin damage.

Mid-stage wear

Noticeable clunk when changing direction

Bucket feels less stable under load

Visible polishing or fretting around the joint

Pin shows scoring or uneven wear patterns

At this stage, replacing 63432-67375 BUSHING KAWASAKI may also require pin inspection, and sometimes pin replacement, depending on surface condition.

Late-stage wear

Severe joint movement

Misalignment visible at the pivot

Accelerated wear of seals and adjacent components

Bore damage begins (the expensive failure)

Late-stage wear is where downtime becomes costly and repair scope grows fast. Planned replacement of 63432-67375 BUSHING KAWASAKI is the simplest way to avoid reaching this point.

How 63432-67375 BUSHING KAWASAKI handles real working conditions

Heavy equipment joints do not live in clean environments. They live in a world that tries to destroy lubrication and tolerances daily.

Dust and abrasive contamination

Fine dust turns into abrasive paste inside a joint if seals fail or greasing is ignored. A bushing provides a replaceable surface that can tolerate controlled wear without sacrificing the bore.

Shock loads and edge loading

A loader does not carry load gently. The bucket hits resistance. The machine pushes. Impact loads spike. A thick-wall bushing design helps distribute those forces and protects the joint from localized stress.

High cycle counts

Even moderate duty cycles become extreme over time. A joint that cycles thousands of times a week needs stable geometry and reliable lubrication behavior. 63432-67375 BUSHING KAWASAKI is built for that reality: repeated articulation under load.

Installation guide for 6343267375 / 63432-67375 BUSHING KAWASAKI

Correct installation is not optional. A high-quality bushing can fail early if installed with distortion, contamination, or misalignment.

Tools recommended

Hydraulic press (preferred)

Correct bushing driver sleeve (supports the face evenly)

Caliper or micrometer for quick verification

Cleaning solvent and lint-free cloth

Grease specified for your loader’s pivot points

Step-by-step installation

Step 1: Prepare the bore

Clean the bore thoroughly.

Remove old grease, rust, paint, and embedded grit.

Inspect for ovaling, scoring, or burrs.

If the bore is damaged, installing a new 63432-67375 BUSHING KAWASAKI without correcting the bore can lead to repeat wear.

Step 2: Inspect the pin

A worn pin will destroy a new bushing quickly.

Check for scoring, taper, or uneven wear.

Replace the pin if the surface is compromised.

Step 3: Press-fit the bushing

Align 63432-67375 BUSHING KAWASAKI square to the bore.

Press slowly and evenly.

Use a driver that contacts the bushing face uniformly.

Avoid impact installation. Hammering can deform the bushing and create tight spots.

Step 4: Verify movement and lubrication

Insert the pin and confirm smooth articulation.

Grease the joint thoroughly.

Cycle the joint to distribute grease and confirm consistent movement.

If your joint uses paired bushings, replacing both as a set is often best practice to keep load distribution balanced.

Maintenance practices that extend bushing life

Most bushing failures are not material failures. They are maintenance failures.

To extend the service life of 63432-67375 BUSHING KAWASAKI:

Grease at the correct interval for your working environment (increase frequency in dust, mud, or washdown conditions).

Inspect dust seals and caps; replace them before they fail.

Monitor play monthly; small changes in clearance are early warnings.

Avoid pressure washing directly into pivot seals; water carries grit into the joint.

Keep pins clean during service work.

When you treat 63432-67375 BUSHING KAWASAKI as part of a maintenance system rather than a standalone component, the joint stays tight longer and the machine maintains predictable handling.

Technical overview (practical, field-focused)

Exact dimensions are determined by the machine group and serial break. However, 63432-67375 BUSHING KAWASAKI typically aligns with heavy equipment bushing expectations:

Thick-wall steel bushing format designed for high load pivot applications

Precision-machined inner bearing surface for controlled pin clearance

Outer diameter engineered for interference press fit

Stable geometry designed to resist deformation under press-fit and shock loads

Surface finish intended to support grease film and reduce scoring tendency

This is the standard required for loader pivot points where replacement parts must survive impact, vibration, and contamination.

Approximate weight (KG)

Published compatibility references often do not list the standalone shipping weight for each bushing, and it can vary slightly based on production spec and exact dimensions.

Based on the bushing’s visible size and thick-wall construction, a realistic listing estimate is:

Estimated weight: 0.9 to 1.6 kg

If you provide three quick measurements (outer diameter, inner diameter, and width), I can refine the estimate into a tighter single-number value for your catalog.

Why choose 3GEN Export for 63432-67375 BUSHING KAWASAKI

When a loader is down, the cost is not only the part. It is lost production, delayed schedules, and the ripple effect across the site.

3GEN Export supplies 63432-67375 BUSHING KAWASAKI as an OEM-standard replacement solution, and we deliver worldwide in 5 working days so you can restore uptime fast.

If you manage a fleet, the value is even clearer: consistent supply, predictable replacement cycles, and fewer emergency repairs caused by delayed bushing service.
