9V7710, 9V-7710 SPIDER & BEARING CATERPILLAR

Premium Universal Joint Assembly for Caterpillar Heavy Machinery

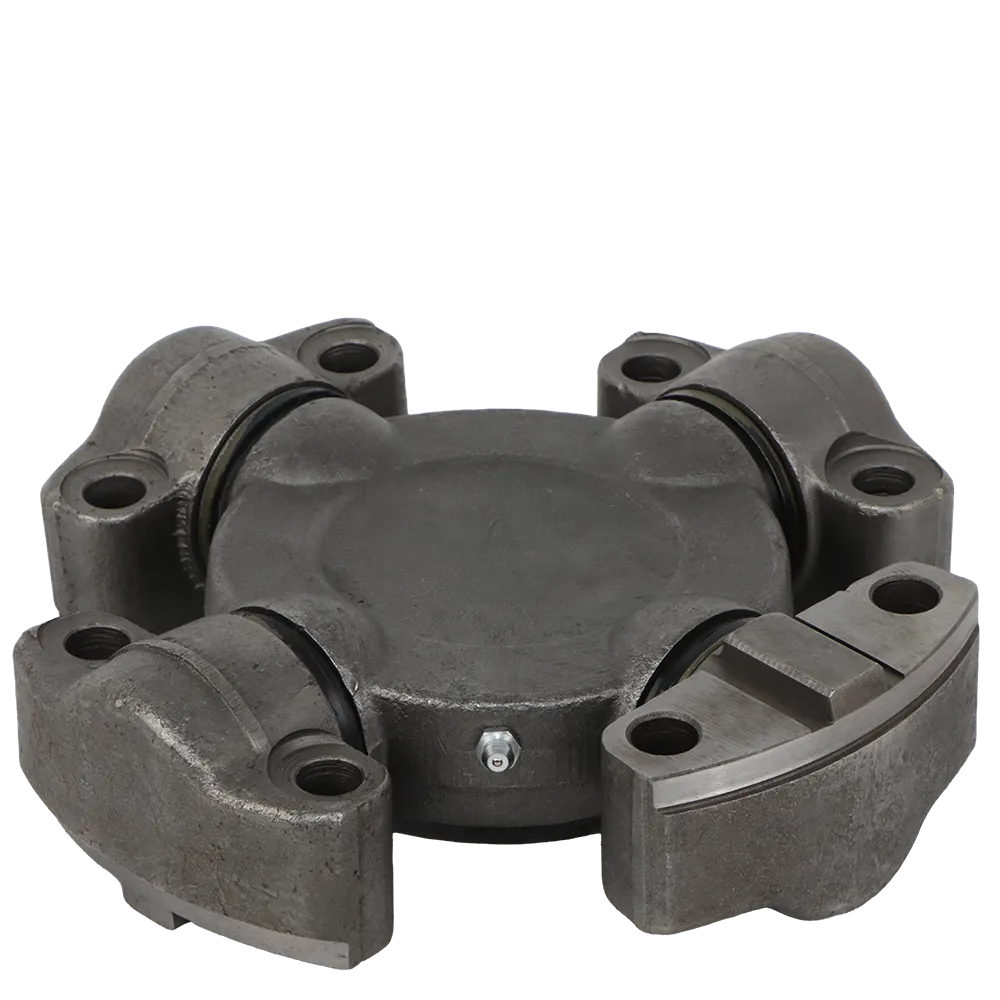

The 9V7710 SPIDER & BEARING CATERPILLAR (also written as 9V-7710) is a high-performance universal joint assembly engineered for superior torque transmission, reliability, and endurance in Caterpillar heavy-duty machines. As a vital link between drive shafts, this component enables efficient power transfer, allowing smooth operation even when shafts are misaligned or under fluctuating load conditions.

Manufactured from forged steel and fitted with precision needle bearings, the 9V7710 SPIDER & BEARING CATERPILLAR guarantees stability, reduced vibration, and exceptional wear resistance in harsh working environments. Supplied globally by 3GEN Export, this OEM-standard part ensures an exact fit and uncompromised durability, meeting the high demands of Caterpillar machinery used in construction, mining, and earthmoving industries.

Function and Importance of the 9V7710 SPIDER & BEARING CATERPILLAR

The 9V7710 SPIDER & BEARING CATERPILLAR functions as the central cross assembly within the universal joint. Its primary purpose is to connect two rotating shafts that operate at different angles while transmitting torque efficiently.

In the driveline system, the spider serves as the pivot point, and the bearings housed at each arm enable smooth rotational motion. This design allows Caterpillar machines to maintain optimal drivetrain performance even during articulation, uneven terrain travel, or high torque applications.

By reducing vibration and absorbing dynamic stresses, this part prevents misalignment, premature wear, and mechanical imbalance — all of which are crucial for extending the service life of the entire drivetrain system.

Key Features and Benefits

1. Forged Steel Construction

The 9V7710 SPIDER & BEARING CATERPILLAR is forged from high-strength alloy steel, ensuring resistance to fatigue and torsional stress. The dense metal structure achieved through forging guarantees long-term durability and dimensional stability.

2. Precision Needle Bearings

Each bearing cap contains micro-tolerance needle rollers that enable smooth rotation while minimizing friction. This precision engineering enhances torque efficiency and reduces wear in adjoining components.

3. Centralized Lubrication System

A central grease fitting provides easy maintenance and uniform lubrication distribution to all bearings, ensuring continuous smooth operation and preventing overheating.

4. Corrosion-Resistant Finish

The surface is treated with a phosphate coating that protects against rust, oxidation, and chemical degradation, even in humid or abrasive environments.

5. OEM-Grade Compatibility

Supplied by 3GEN Export, this component adheres to Caterpillar’s OEM design standards, guaranteeing perfect alignment, sealing, and fitment without the need for modification.

Technical Specifications

Compatible Caterpillar Models

The 9V7710 SPIDER & BEARING CATERPILLAR is used in a variety of Caterpillar machines, particularly those requiring high-torque driveline stability. Compatible models include:

• Caterpillar 12G, 120G, and 140G Motor Graders

• Caterpillar 966E, 966F, and 980C Wheel Loaders

• Caterpillar D6H, D7G, and D8N Track-Type Tractors

• Caterpillar 815F and 826K Compactors

• Caterpillar 730, 740, and 745C Articulated Dump Trucks

• Caterpillar 320D, 325C, and 330D Hydraulic Excavators

• Caterpillar 950H and 962G Wheel Loaders

• Caterpillar 973D and 963D Track Loaders

• Caterpillar C9 and C13 Engine Driveline Assemblies

This part’s wide compatibility ensures it can be installed across numerous Caterpillar models where robust torque transfer and driveline articulation are required.

Engineering and Manufacturing Quality

Forging Process

The spider body is precision-forged under controlled heat and pressure to ensure uniform metal grain orientation and eliminate micro-defects. This results in superior mechanical strength and load-bearing capacity.

Heat Treatment

Post-forging heat treatment optimizes the material’s core strength and surface hardness, achieving an ideal balance between durability and flexibility.

Machining Accuracy

Each bearing seat is CNC-machined for a perfect interference fit, ensuring concentric alignment and preventing unwanted vibration or imbalance during high-speed rotation.

Assembly Precision

The bearings are press-fitted using hydraulic tools for maximum stability and sealing performance. All components are balanced to Caterpillar’s OEM tolerance levels.

Performance Advantages

• Enhanced Torque Transfer: Maintains stable power flow even under dynamic shaft angles.

• Low Friction Operation: Needle bearing design ensures reduced rotational drag.

• Long Service Life: Wear-resistant surfaces and advanced sealing systems extend lifespan.

• Reduced Maintenance Needs: Central grease fitting minimizes downtime.

• Smooth Operation: Balances mechanical loads, reducing vibration and noise.

Functional Applications in Caterpillar Systems

The 9V7710 SPIDER & BEARING CATERPILLAR is essential in various powertrain and driveline systems, including:

• Transmission Assemblies: Facilitates efficient torque transfer between gearbox and axle shafts.

• Drive Shafts: Allows flexibility and smooth rotation between misaligned or moving shafts.

• Differential Couplings: Maintains equal rotational distribution between axles.

• Hydraulic Drives: Absorbs torsional vibration and alignment shifts.

Its high tolerance for load variation and temperature makes it ideal for Caterpillar’s demanding operational environments.

Installation and Maintenance

Installation Procedure

1. Clean all contact surfaces before installation.

2. Position the 9V7710 SPIDER & BEARING CATERPILLAR into the yoke assembly.

3. Secure the bearing caps evenly with OEM torque values.

4. Lubricate using a high-quality lithium-based grease via the central fitting.

5. Recheck alignment and torque after the first 10 operating hours.

Maintenance Recommendations

• Lubricate every 250 operating hours or as per Caterpillar’s service guidelines.

• Inspect for play, noise, or leakage during each maintenance cycle.

• Replace seals immediately if grease loss is detected.

• Ensure bolts are retorqued periodically under heavy-duty applications.

Following these steps ensures optimum reliability and operational longevity.

Quality Assurance and Testing

Every 9V7710 SPIDER & BEARING CATERPILLAR supplied by 3GEN Export undergoes rigorous multi-stage testing:

• Dimensional Verification: ±0.02 mm tolerance compliance.

• Hardness and Metallurgical Testing: Confirms heat treatment uniformity.

• Dynamic Load Testing: Simulates real-world driveline stresses.

• Vibration and Balance Testing: Guarantees smooth rotation at high torque.

• Corrosion Resistance Evaluation: Exposed to 120-hour salt spray conditions.

Only components meeting or exceeding OEM performance benchmarks are approved for export.

Environmental and Safety Compliance

This product is manufactured under ISO 9001 (Quality Management) and ISO 14001 (Environmental Management) certification systems.
All materials used are RoHS and REACH compliant, ensuring environmental safety and sustainability throughout production.

Packaging and Delivery

Each 9V7710 SPIDER & BEARING CATERPILLAR is individually packed in anti-rust wrapping and labeled for easy identification. Bulk shipments are packed in reinforced wooden crates to ensure safety during international transit.

Delivery Time: 3GEN Export guarantees worldwide delivery within 5 working days, with comprehensive export documentation for customs clearance.

Why Choose 3GEN Export

• OEM-Quality Guarantee: Built to match Caterpillar’s engineering standards.

• Worldwide Delivery: Fast global logistics with tracking and full documentation.

• Technical Expertise: Expert assistance for product fitment and compatibility.

• Sustainability: Environmentally responsible production methods.

• Comprehensive Catalog: Thousands of Caterpillar-compatible spare parts in stock.

When you order from 3GEN Export, you get OEM-grade reliability, tested performance, and global support from a supplier trusted by industries worldwide.

Summary

The 9V7710 SPIDER & BEARING CATERPILLAR is a heavy-duty universal joint assembly designed for Caterpillar equipment that demands high torque efficiency, long service life, and mechanical precision. Manufactured from premium forged steel, fitted with precision bearings, and protected by anti-corrosion coating, it delivers unmatched performance under demanding conditions.

Backed by 3GEN Export’s OEM expertise and global 5-day delivery, the 9V7710 SPIDER & BEARING CATERPILLAR ensures operational stability, durability, and total reliability for your Caterpillar machinery.

Order your 9V7710 SPIDER & BEARING CATERPILLAR today from 3GEN Export — your trusted source for OEM-quality heavy machinery spare parts.
