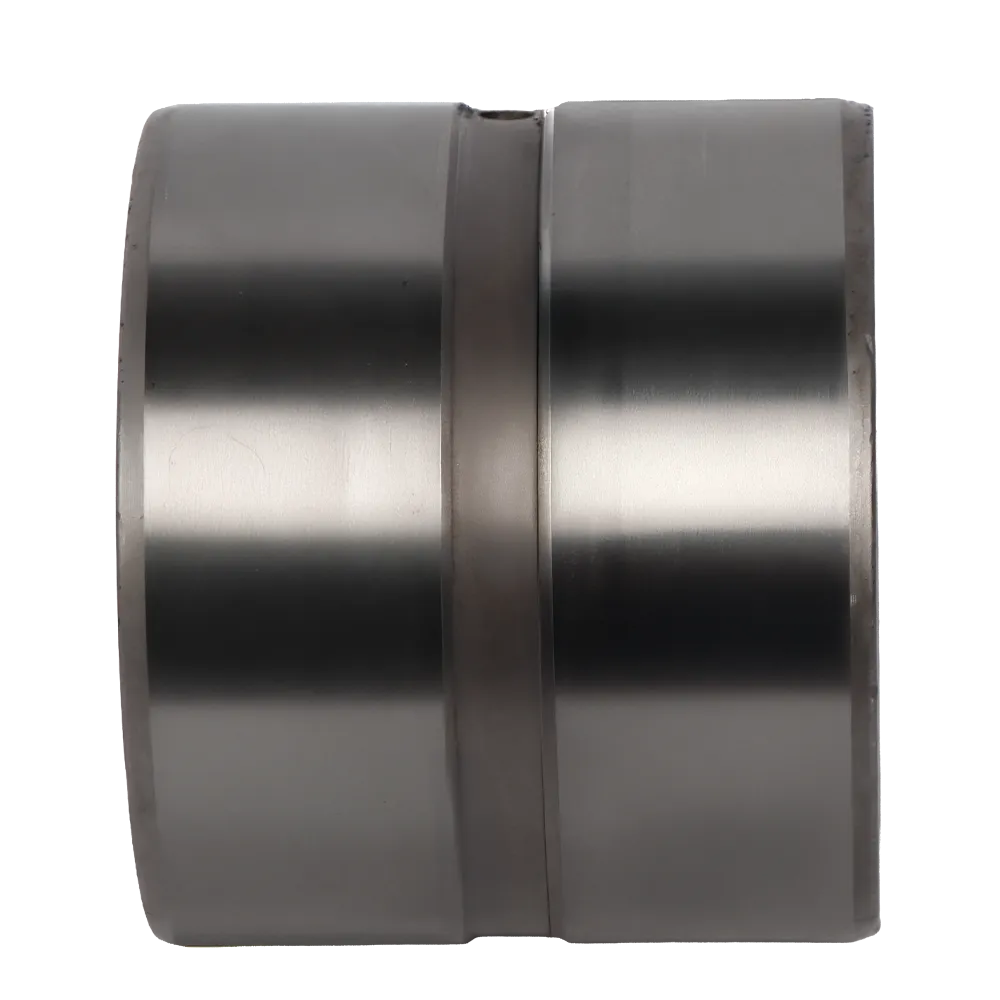

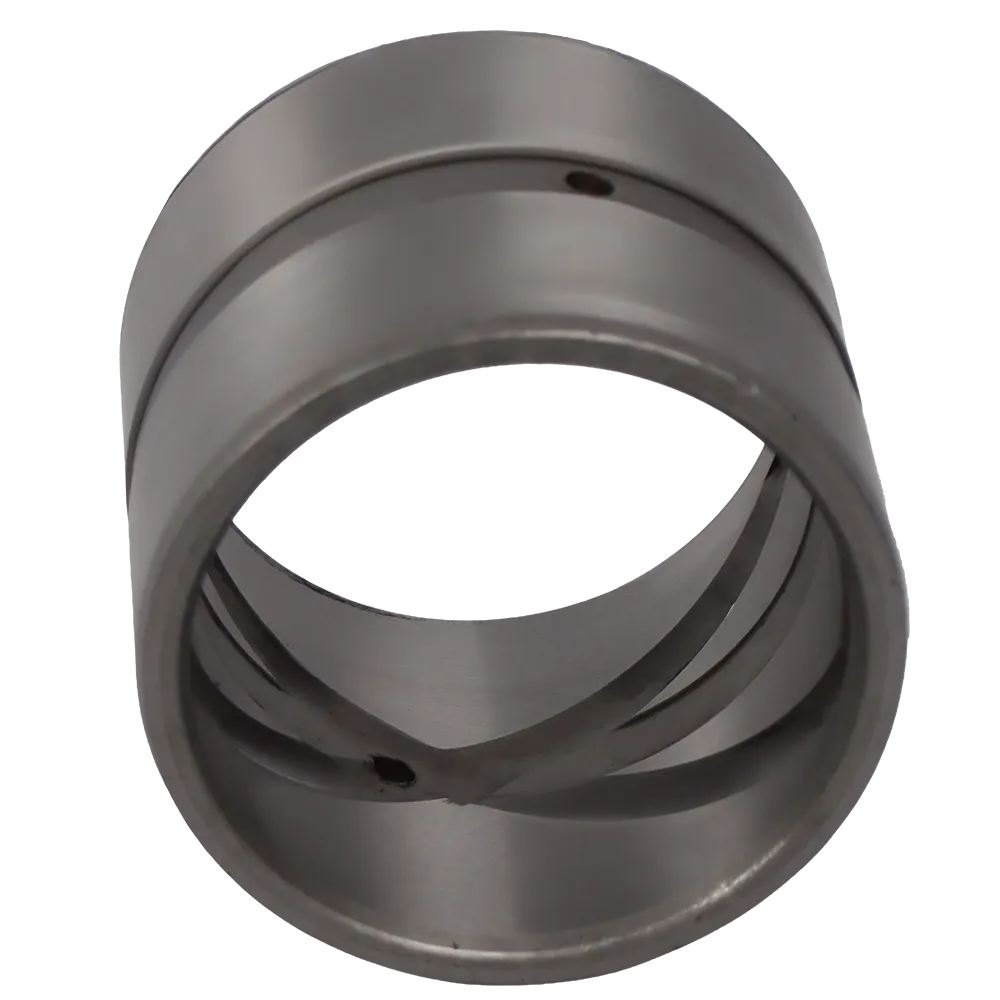

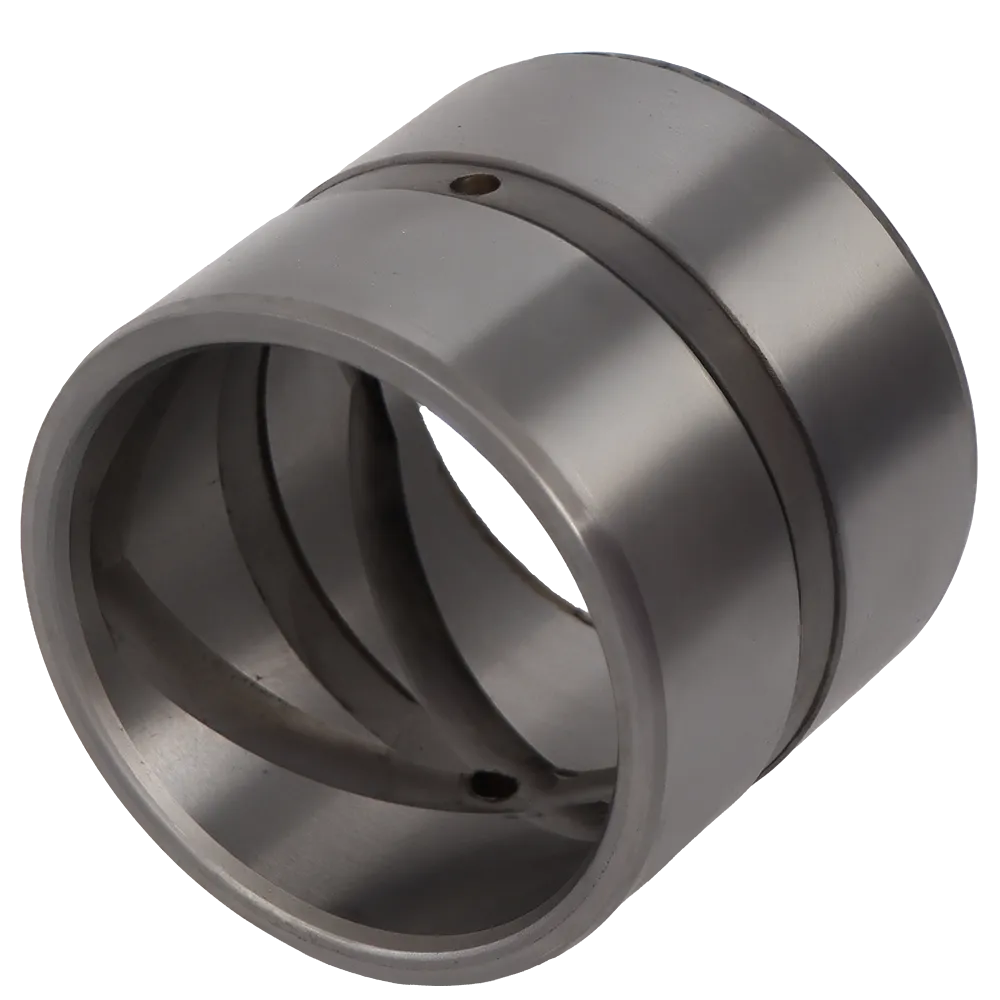

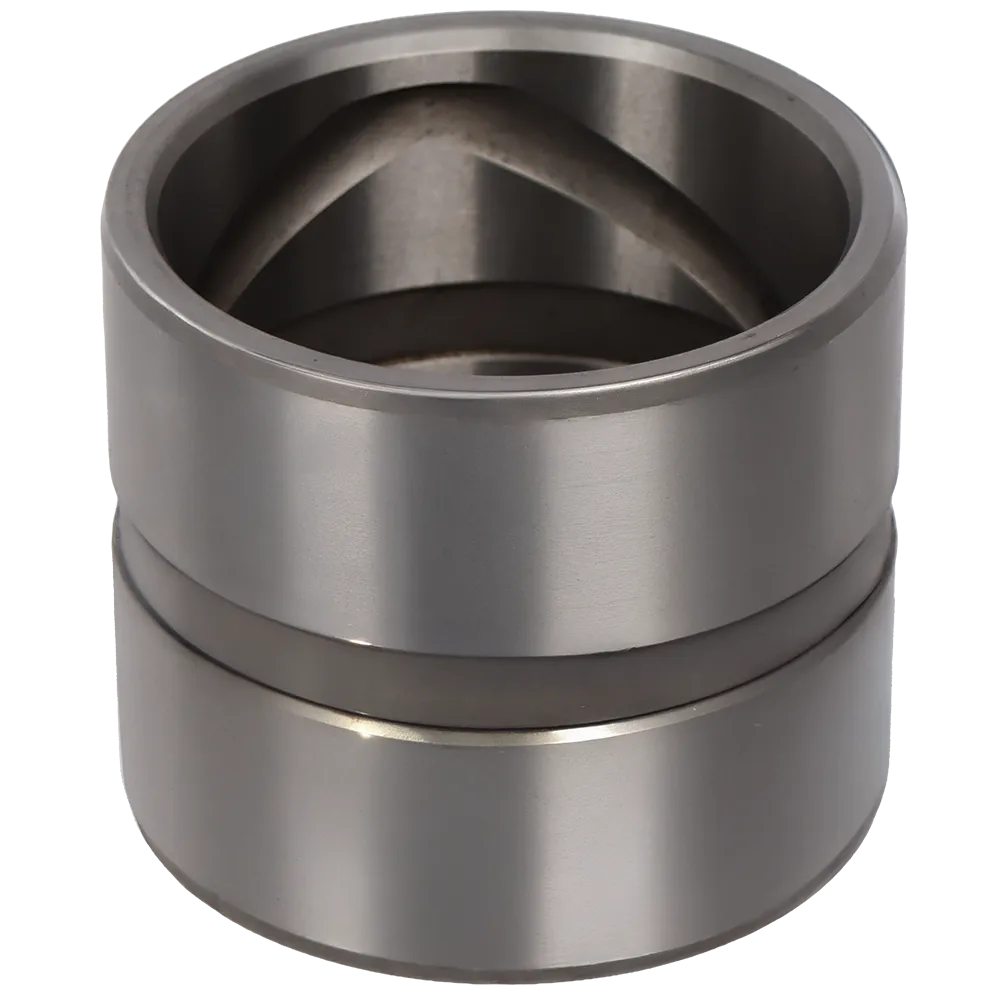

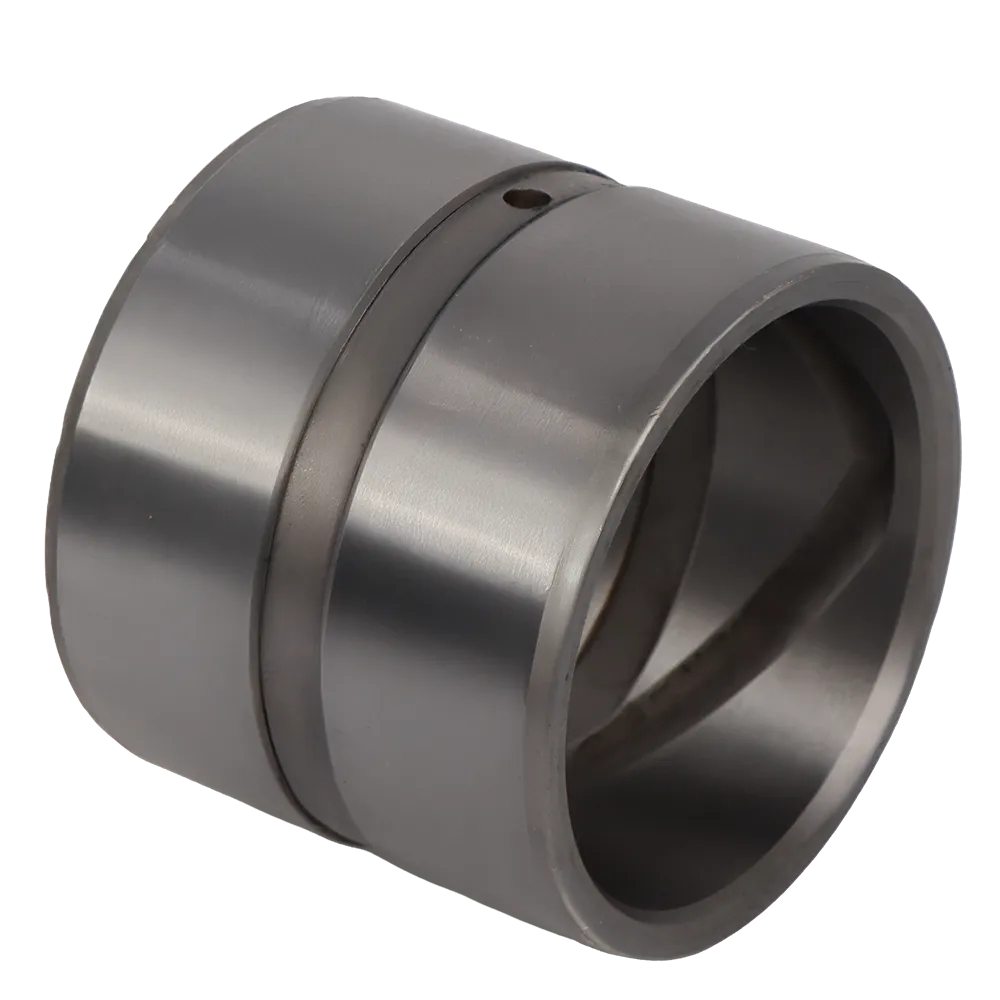

KBV1358 BUSHING CASE

---

Overview of KBV1358 BUSHING CASE

The KBV1358 BUSHING CASE is a high-precision structural component developed for CASE heavy machinery, engineered to deliver consistent performance in extreme operating conditions. Built to absorb heavy loads, minimize vibration, and maintain precise alignment, this bushing enhances machine stability and extends service life.

Manufactured with hardened alloy steel and precision ground for seamless fitting, the KBV1358 BUSHING CASEensures that every movement within your loader, backhoe, or excavator runs with minimal friction. Whether your CASE equipment operates on urban construction sites or rough quarry terrain, this bushing guarantees uncompromising durability, long-term wear resistance, and maximum machine uptime.

At 3GEN Export, each KBV1358 BUSHING CASE** is tested, measured, and certified to OEM specifications, providing operators around the world with confidence in every installation. Our parts don’t just replace — they restore performance to factory levels.

---

Function and Role in CASE Heavy Machinery

Within CASE’s hydraulic and mechanical assemblies, the KBV1358 BUSHING CASE functions as a critical interface between moving components. Its primary purpose is to support rotational and oscillating motion while preventing direct metal-to-metal contact between the housing and the shaft or pin.

Key Functions

• Load Distribution: Evenly spreads radial and axial forces during digging, lifting, or articulation.

• Wear Reduction: Protects linkages, arms, and joints by minimizing friction.

• Alignment Control: Keeps shafts and pins properly centered to prevent deformation under pressure.

• Noise and Vibration Damping: Reduces operational vibration, increasing operator comfort and precision control.

This bushing is typically found in:

• Loader arm joints

• Boom-to-stick connections

• Backhoe pivot points

• Swing-frame bearing assemblies

• Cylinder mounting interfaces

Its robust geometry and inner lubrication groove design allow the KBV1358 BUSHING CASE to endure repetitive shock loads without micro-cracking or dimensional distortion.

---

Engineering, Materials & Manufacturing Precision

Each KBV1358 BUSHING CASE is forged from premium alloy steel, subjected to controlled heat treatment, and precision-ground using CNC technology. The combination of mechanical strength, surface hardness, and dimensional accuracy results in exceptional endurance under continuous load cycles.

Material Highlights

• Material: High-carbon, chromium-molybdenum alloy steel

• Hardening: Induction-hardened surface (HRC 58 – 62)

• Core Toughness: Maintains flexibility to absorb dynamic shock

• Surface Finish: Mirror-polished for frictionless contact

• Internal Grooves: Machined to ensure optimal lubricant distribution

Each piece undergoes ultrasonic testing and CMM (Coordinate Measuring Machine) verification to confirm perfect concentricity, guaranteeing that it seats into the housing bore without misalignment or resistance.

This manufacturing precision allows the KBV1358 BUSHING CASE to achieve a balance between rigidity and elasticity — the hallmark of durable, high-performance bushings in CASE heavy-duty assemblies.

---

Technical Specifications

---

Compatible CASE Models for KBV1358 BUSHING CASE

The KBV1358 BUSHING CASE fits a wide range of CASE construction equipment. Its compatibility ensures easy integration with original linkages and hydraulic assemblies, making it ideal for both scheduled maintenance and performance rebuilds.

Compatible Models Include:

• CASE 580 Super N / 580 Super ST / 580 Super M Series 2

• CASE 590 Super M / 590 Super N Backhoe Loaders

• CASE 695 SM / 695 ST Loader Backhoes

• CASE CX75 / CX80 Mini Excavators

• CASE CX130 / CX145 Crawler Excavators

• CASE 821 G / 921 G Wheel Loaders

• CASE WX125 / WX145 Wheeled Excavators

• CASE SR210 / SV250 Skid Steer Loaders

Each of these machines relies on precise movement between linkage pins and the main structural frame — a relationship safeguarded by the integrity of the KBV1358 BUSHING CASE.

Because this part is engineered to OEM dimensions, installation requires no modification or adjustment, ensuring a perfect fit right out of the box.

---

Installation Guidelines for Optimal Performance

Correct installation is key to achieving the designed performance of your KBV1358 BUSHING CASE.

Step-by-Step Process

1. Preparation: Thoroughly clean housing surfaces; remove debris, rust, or old lubricant.

2. Alignment: Verify alignment between grease holes in the housing and bushing.

3. Lubrication: Apply high-pressure assembly grease on both outer and inner surfaces.

4. Insertion: Use a hydraulic press for a controlled, even press fit; never hammer the part.

5. Final Check: Ensure pin rotation is smooth and free of binding or lateral play.

Maintenance Tips

• Lubricate at manufacturer-recommended intervals.

• Inspect regularly for radial wear or scoring.

• Replace if play exceeds 0.5 mm or visual cracks appear.

• Always use clean, high-quality lubricants to prevent contamination.

Following these procedures guarantees optimal service life and operational consistency.

---

Performance Benefits and Operational Advantages

1. Reduced Wear: Hardened bearing surfaces resist abrasion and extend component lifespan.

2. Smooth Operation: Polished internal surfaces minimize resistance and friction.

3. Enhanced Machine Stability: Maintains alignment in high-stress articulations.

4. Corrosion Protection: Coated and heat-treated for moisture and dust resilience.

5. Extended Service Intervals: Requires fewer lubrication cycles, lowering maintenance costs.

6. Cost Efficiency: Prevents premature failure of expensive pins and linkages.

7. Universal Fit: Designed for interchangeability across multiple CASE models.

In harsh construction environments, where hydraulic pressure, load variation, and vibration converge, the KBV1358 BUSHING CASE ensures consistent motion and dependable performance shift after shift.

---

Precision Manufacturing & Quality Assurance

At 3GEN Export, every KBV1358 BUSHING CASE undergoes a meticulous multi-stage inspection before shipping. Our precision production process adheres to ISO 9001 and ISO 14001 standards, ensuring the reliability expected from OEM-grade components.

Quality Control Includes:

• Hardness and microstructure verification via Rockwell tests.

• Dimensional accuracy check using coordinate-measuring machines (CMM).

• Surface roughness analysis ensuring Ra ≤ 0.4 μm.

• Grease channel flow testing to confirm proper lubrication efficiency.

This rigorous testing process guarantees that each KBV1358 BUSHING CASE performs flawlessly from installation through thousands of work hours.

---

Why Choose 3GEN Export as Your OEM Supplier

3GEN Export stands at the forefront of global OEM-grade heavy-machinery spare-parts distribution. Our products are designed for perfect compatibility, certified performance, and rapid worldwide delivery.

Key Advantages

• OEM-Level Engineering: Precision-machined for perfect fit and reliability.

• 5-Day Worldwide Delivery: Fast dispatch through DHL, UPS, and FedEx.

• Technical Verification: Compatibility confirmation for all CASE models before shipping.

• Comprehensive Warranty: 1-year guarantee covering material and performance defects.

• Dedicated Support: Expert customer assistance and documentation for every order.

By choosing 3GEN Export, you’re choosing a trusted partner with years of experience supplying premium bushings and wear components to global clients in mining, construction, and civil engineering sectors.

---

Global Delivery and After-Sales Support

3GEN Export maintains an optimized logistics network designed to get your KBV1358 BUSHING CASE to you quickly and securely. Each order is professionally packaged with anti-corrosion protection, serial number identification, and sealed for moisture control.

Delivery Highlights

• Orders dispatched within 5 working days worldwide.

• Full tracking and customs support included.

• Certificates of Origin and Compliance available on request.

• Sustainable packaging aligned with international export standards.

Our after-sales team monitors shipment progress and supports clients through installation and performance queries, ensuring a seamless ownership experience.

---

Applications Across Industries

The KBV1358 BUSHING CASE is not limited to CASE construction equipment. Its strength and precision make it suitable for a variety of industrial applications, including:

• Quarry and aggregate machinery

• Forestry and logging equipment

• Agricultural loaders and diggers

• Road maintenance and earth-compacting machines

• Material handling and crane assemblies

These industries rely on components that can withstand dynamic forces and maintain tight mechanical clearances — qualities the KBV1358 BUSHING CASE delivers consistently.

---

Environmental Resilience

Engineered for longevity, the KBV1358 BUSHING CASE undergoes surface treatments that protect against abrasion, oxidation, and corrosion. The bushing is resistant to:

• Moisture Exposure: Anti-rust coating for humid or coastal regions.

• Dust and Sand: Micro-seal grooves reduce particle infiltration.

• Temperature Fluctuations: Maintains stability from –40 °C to +180 °C.

• Hydraulic Fluid Contact: Chemical-resistant finish prevents degradation.

This makes the KBV1358 BUSHING CASE ideal for machines operating in both tropical and arid environments without performance loss.

---

Maintenance Schedule for Maximum Durability

• Lubricate every 100–150 operating hours under standard conditions.

• Inspect bushings every 500 hours for wear patterns.

• Clean grease nipples to prevent blockages.

• Replace if any surface pitting or oval wear exceeds OEM tolerances.

Adhering to this schedule ensures that your KBV1358 BUSHING CASE continues to perform at OEM-level standards for years of reliable service.

---

Sustainability & Recyclability

3GEN Export is committed to environmental responsibility. Each KBV1358 BUSHING CASE is produced through low-emission processes, and the materials are fully recyclable. Our eco-friendly manufacturing and packaging approach reduces waste while delivering maximum value to clients and future generations.

---

Conclusion

The KBV1358 BUSHING CASE stands as a symbol of precision, durability, and OEM-grade reliability. Its role in CASE heavy machinery extends far beyond mechanical movement — it represents the connection between engineering perfection and long-term performance.

Crafted with superior materials and delivered under the strictest quality controls, this bushing ensures smooth articulation, reduced maintenance costs, and consistent operation through thousands of hours of hard work.

When sourced through 3GEN Export, the KBV1358 BUSHING CASE becomes more than a component — it’s a commitment to quality, efficiency, and global service excellence. Backed by fast delivery, technical support, and an OEM guarantee, this part is the ideal choice for professionals who demand the best for their CASE machines.

---

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
