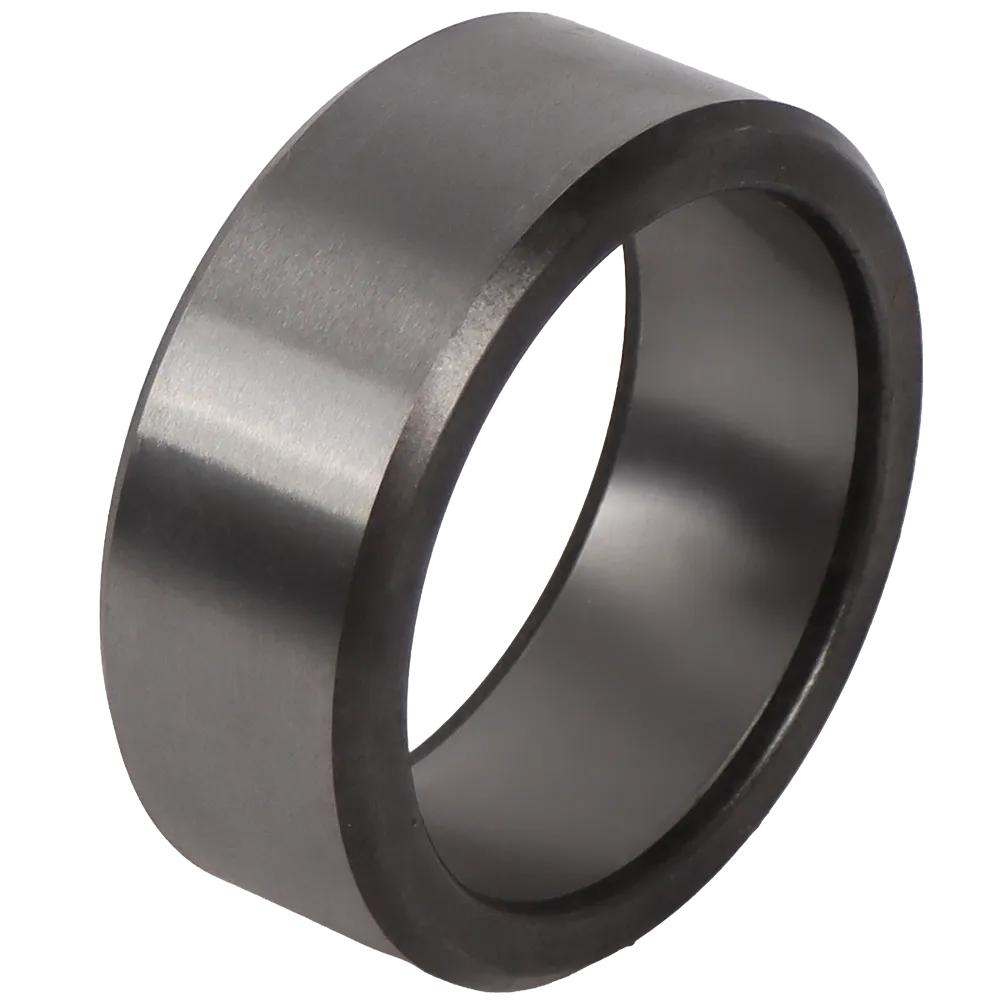

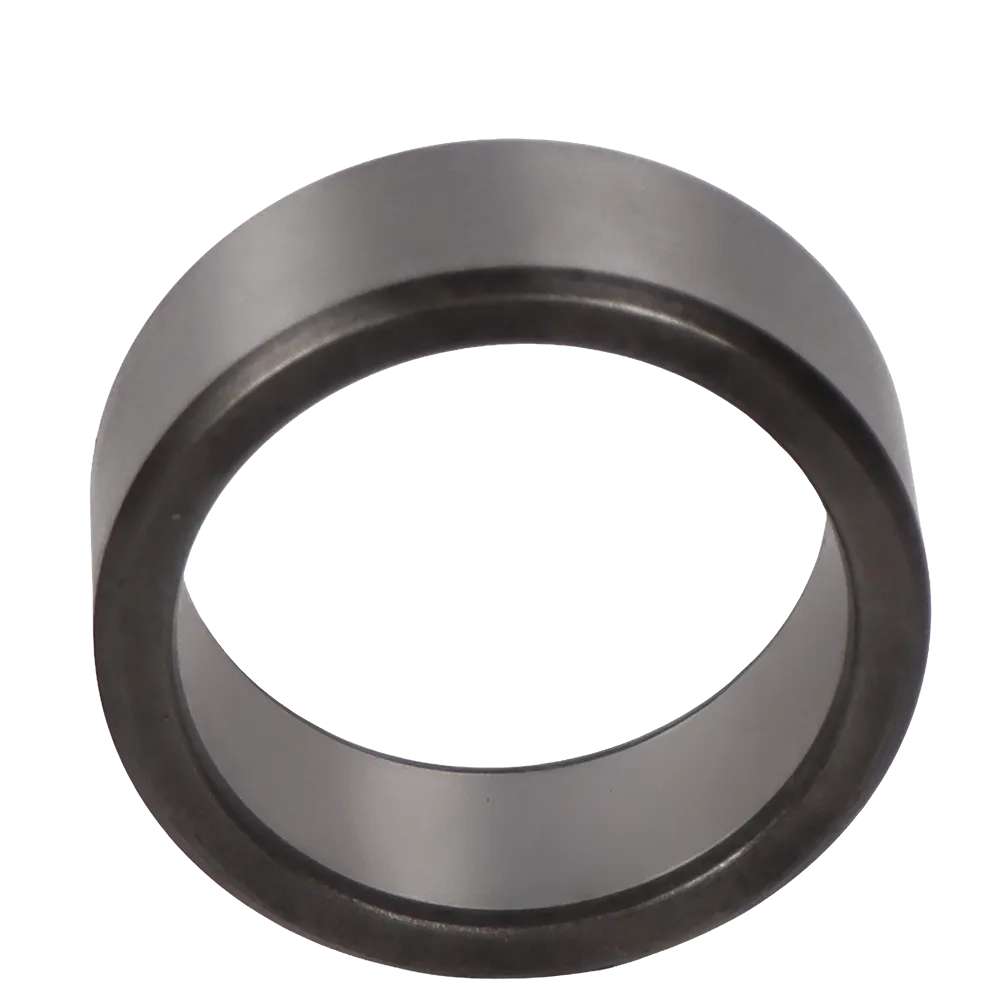

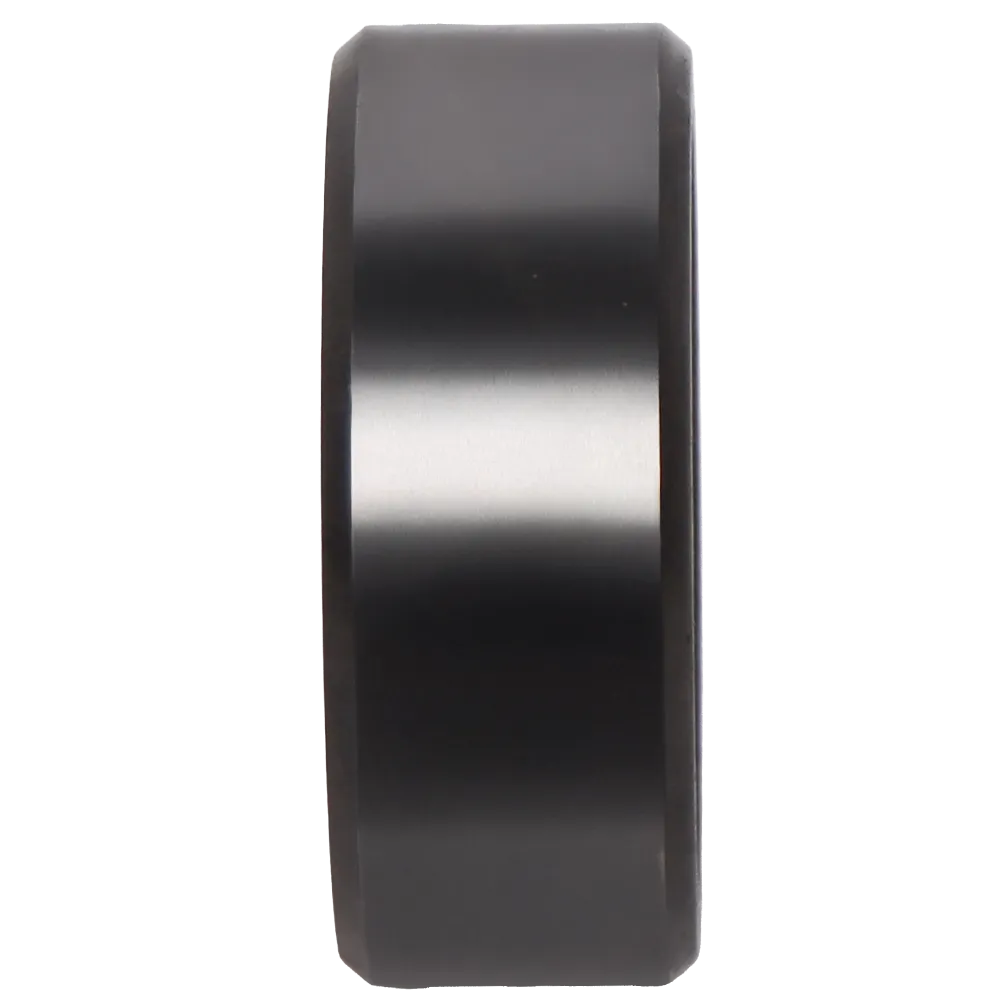

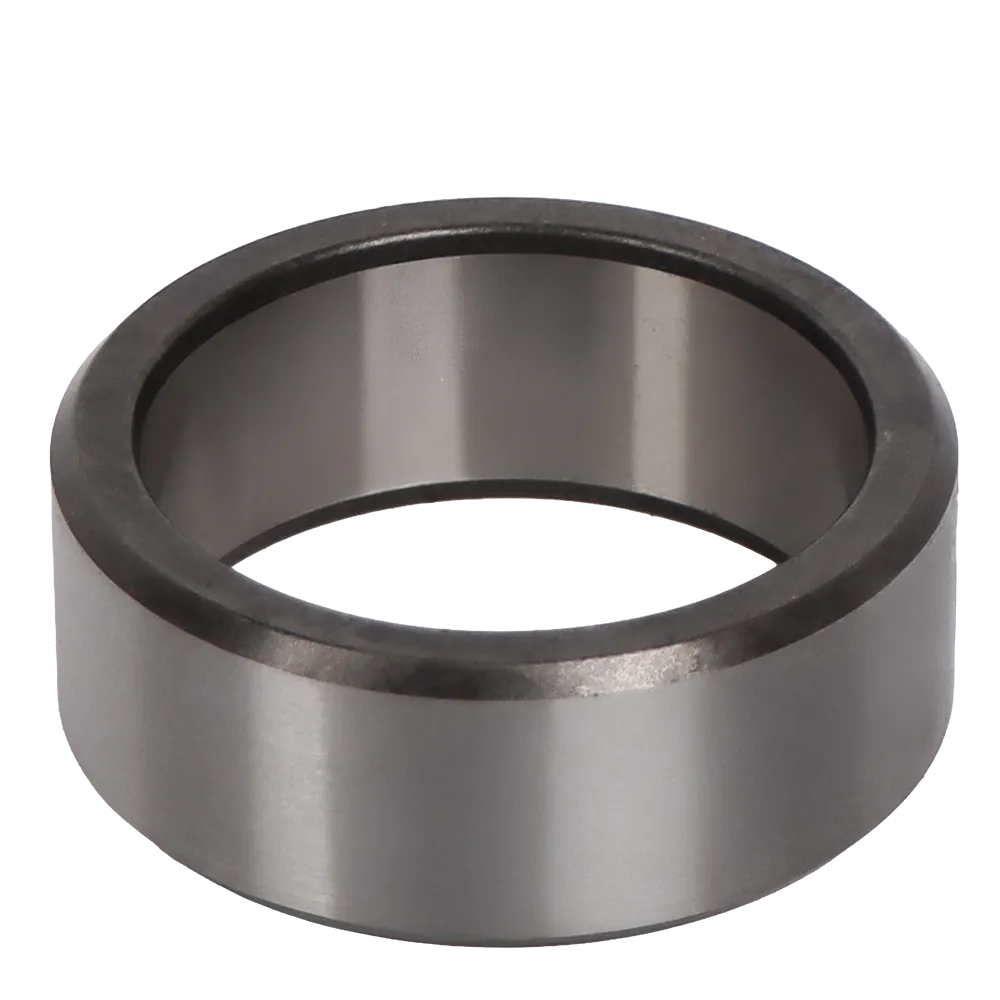

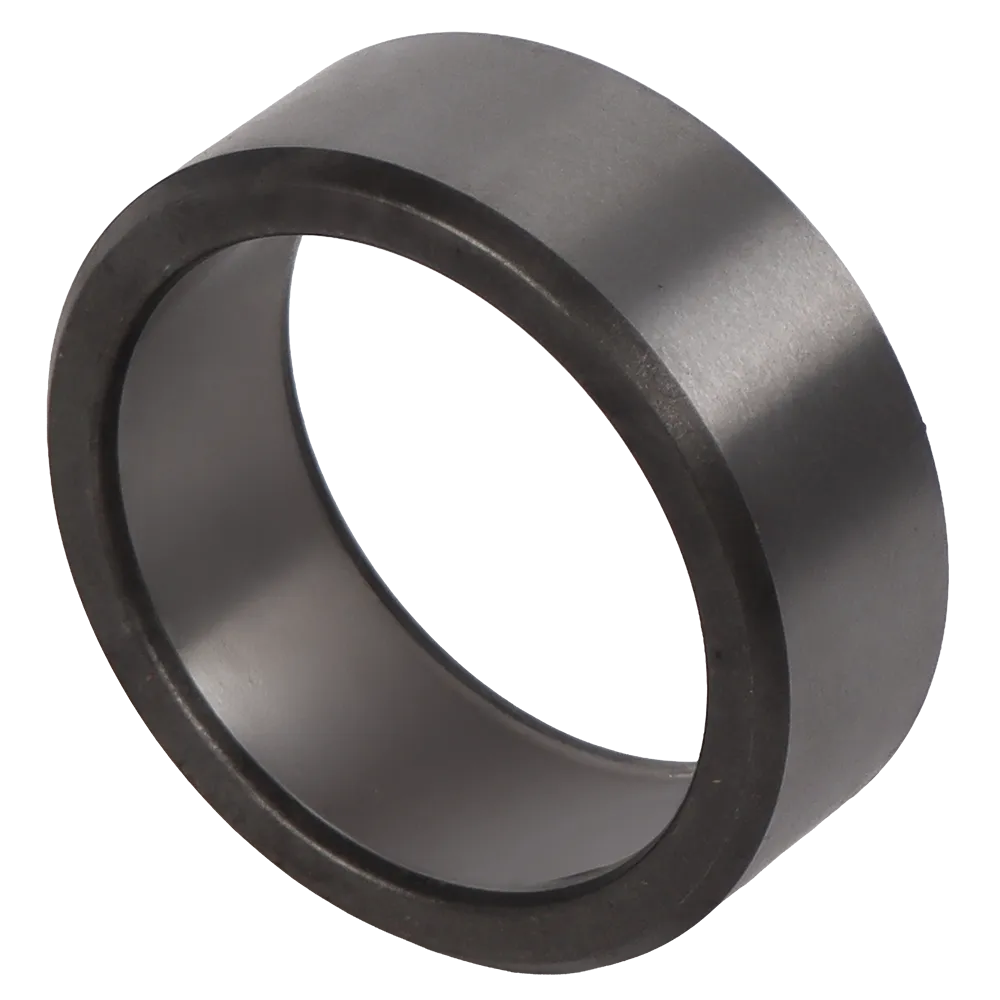

L118862 SPACER CASE

Heavy-Duty Precision Spacer for CASE Construction Equipment

The L118862 SPACER CASE is a precision-engineered mechanical component designed to provide optimal load distribution, alignment, and dimensional stability within CASE heavy machinery systems. Crafted from high-grade alloy steel and manufactured to OEM-equivalent standards by 3GEN Export, this spacer ensures long-term reliability and performance across diverse applications such as excavators, backhoe loaders, and wheel loaders.

Built to perform under extreme pressure, the L118862 SPACER CASE supports the mechanical structure of moving parts by maintaining precise gaps between rotating or fixed components. It plays a vital role in preventing friction, vibration, and misalignment—enhancing operational efficiency and prolonging the service life of related assemblies.

---

Overview

The L118862 SPACER CASE is an integral part of CASE machinery, especially in systems where precision alignment is crucial—such as axle assemblies, swing arms, booms, and hydraulic pivots. Acting as a critical intermediary between heavy-duty components, this spacer ensures that rotational and oscillatory forces are distributed evenly, preventing premature wear and ensuring consistent machine performance.

In high-demand work environments such as construction, mining, and agriculture, mechanical tolerances can determine the difference between smooth operation and costly downtime. The L118862 spacer maintains these tolerances flawlessly. Its uniform surface finish, heat-treated hardness, and corrosion resistance make it ideal for continuous duty in rugged outdoor conditions.

---

Key Features and Advantages

• OEM-Standard Precision: Manufactured with exact dimensional tolerances, ensuring flawless installation in all compatible CASE models.

• High-Strength Alloy Composition: Built from heat-treated steel to deliver superior resistance to deformation, fatigue, and surface wear.

• Anti-Corrosion Surface Treatment: Coated with oil and phosphate layers to prevent rust and oxidation during long-term use.

• Enhanced Load Distribution: Evenly spreads axial and radial loads across connecting parts, reducing stress concentration.

• Perfect Dimensional Accuracy: CNC-machined to within ±0.01 mm tolerance for consistent fit and alignment.

• Long Service Life: Designed for durability and minimal maintenance in high-load applications.

• Universal Compatibility: Used across multiple CASE machinery systems, including backhoe loaders, excavators, and wheel loaders.

---

Technical Specifications

---

Compatibility with CASE Models

The L118862 SPACER CASE is designed to fit a wide range of CASE construction machinery models. It provides the precise clearance and structural support required in the linkage, boom, or axle assemblies of these machines:

• CASE 580N / 580SN / 580ST Backhoe Loaders

• CASE 590SN / 590ST Loaders

• CASE 695ST Backhoe Loader

• CASE CX130 / CX145 / CX160 Excavators

• CASE WX148 / WX168 Wheeled Excavators

• CASE 721F / 821G / 921F Wheel Loaders

• CASE 770EX / 851EX / 1107EX Series

These models rely on spacers like the L118862 SPACER CASE to maintain the correct mechanical geometry in their working systems. By ensuring proper alignment between pins, bushings, and bearings, this spacer minimizes stress on high-load joints, improving both performance and durability.

---

Material and Design Engineering

At 3GEN Export, the L118862 SPACER CASE is engineered using state-of-the-art manufacturing processes. Each spacer undergoes a series of precision operations, including CNC turning, grinding, and surface finishing, to achieve a flawless geometry that guarantees seamless fitment and maximum load-bearing capability.

Metallurgical Excellence

• Alloy Composition: Made with a combination of chromium, molybdenum, and carbon steel for superior hardness and flexibility.

• Heat Treatment Process: Uniform induction hardening provides a balance between surface durability and internal strength.

• Microstructure Stability: Controlled grain refinement prevents cracking under thermal or mechanical stress.

This design ensures that the L118862 SPACER CASE can handle high torque, impact shocks, and environmental corrosion while retaining its structural precision over time.

---

Operational Performance

When installed correctly, the L118862 SPACER CASE serves as a stabilizing component between connecting parts that undergo frequent motion. Its primary role is to:

• Prevent axial displacement of rotating components.

• Maintain parallel alignment between adjoining surfaces.

• Absorb vibration and stress, reducing mechanical noise.

• Protect pins, bushings, and bearings from premature wear.

The precision fit minimizes micro-gaps that often lead to metal fatigue or friction-related heat buildup. The result is smoother machine motion, improved operator control, and extended service intervals.

---

Applications

The L118862 SPACER CASE is used across multiple functional systems in CASE machinery, including:

• Boom and Arm Assemblies: Maintains clearance and stability in hydraulic linkages.

• Pivot Joints: Ensures proper rotational motion under high pressure.

• Axle and Hub Assemblies: Provides accurate spacing between load-bearing parts.

• Hydraulic Cylinder Mounts: Keeps components perfectly aligned to avoid side-loading.

• Frame Connections: Balances stress during heavy lifting and repetitive motion cycles.

Its versatility allows the same spacer type to serve both static and dynamic load applications — making it a key spare part for CASE service teams and global maintenance networks.

---

Installation and Maintenance

Installing the L118862 SPACER CASE is straightforward but requires professional attention to detail.

Installation Steps:

1. Clean all contact surfaces before inserting the spacer.

2. Check pin and bushing tolerances to ensure compatibility.

3. Apply a thin film of high-quality grease for easier fitment.

4. Align accurately before pressing into position.

5. Recheck clearances after installation to confirm precision alignment.

Maintenance Tips:

• Inspect regularly during scheduled servicing for surface scoring or deformation.

• Replace immediately if corrosion or wear is observed.

• Always use OEM-quality replacements such as L118862 SPACER CASE to maintain proper geometry and load balance.

When maintained properly, this spacer can last several thousand working hours even under harsh outdoor conditions.

---

Manufacturing and Quality Assurance

Every L118862 SPACER CASE manufactured by 3GEN Export passes through multiple quality control stages before leaving the factory. Each batch is tested for mechanical hardness, concentricity, and microstructural integrity to ensure performance under CASE’s demanding operational standards.

Quality Control Process

• Dimensional Accuracy Testing: Laser micrometers verify tolerances to within ±0.01 mm.

• Hardness Verification: Samples undergo Rockwell testing to confirm uniformity.

• Surface Roughness Inspection: Ensures smooth finishes that minimize friction.

• Load Simulation: Random units are tested under dynamic loads to replicate real-world conditions.

These steps guarantee that every L118862 SPACER CASE delivers the same level of precision and durability as the original component.

---

Packaging and Global Delivery

To maintain product integrity during shipping, 3GEN Export uses industry-grade export packaging.

Each L118862 SPACER CASE is:

• Coated in protective oil to prevent corrosion.

• Vacuum-sealed in moisture-resistant film.

• Placed in shock-absorbent export cartons or wooden crates.

With optimized logistics and global partnerships, we ensure rapid dispatch and reliable delivery.

Delivery Details:

• Worldwide shipping within 5 working days.

• Fully traceable logistics with insured transport.

• Flexible order quantities — single units or bulk supply available.

---

Why Choose 3GEN Export?

3GEN Export is a global OEM-level supplier specializing in high-quality heavy machinery components. We supply thousands of precision-engineered parts for brands like CASE, Volvo, Komatsu, and Caterpillar. Every product, including the L118862 SPACER CASE, is manufactured under strict quality management systems (ISO-certified) and verified through advanced inspection technologies.

Our Advantages:

• OEM-equivalent products at competitive export prices.

• 5-day global shipping guaranteed.

• Comprehensive part compatibility support.

• Professional after-sales assistance and technical documentation.

• Trusted by dealers, contractors, and fleet owners across 60+ countries.

When you choose 3GEN Export, you’re not just buying a part — you’re investing in reliability, safety, and continuity of your operations.

---

Environmental and Sustainability Standards

Every L118862 SPACER CASE is produced under eco-conscious manufacturing practices. 3GEN Export’s production facilities employ energy-efficient processes, low-waste material recycling, and environmentally responsible coating solutions to minimize environmental impact.

By adhering to sustainable industrial principles, we ensure that performance never comes at the expense of environmental responsibility.

---

Longevity and Cost Efficiency

Replacing worn-out components with high-precision parts like the L118862 SPACER CASE is not only essential for machine reliability but also cost-effective in the long term. A properly functioning spacer reduces friction, extends the lifespan of nearby parts, and prevents costly breakdowns.

Fleet operators and service centers using 3GEN Export parts experience:

• Reduced repair frequency.

• Longer machine uptime.

• Lower lifetime maintenance costs.

• Improved resale value of heavy equipment.

---

Summary

The L118862 SPACER CASE is a precision-machined spacer designed for high-load CASE heavy machinery applications. Engineered for durability, perfect dimensional accuracy, and corrosion resistance, this part ensures smooth operation and prolonged life of your construction equipment.

Manufactured and supplied by 3GEN Export, it meets strict OEM-level quality standards and is available for global delivery within 5 working days.

---

Weight: 0.38 kg
Delivery: Worldwide in 5 working days via 3GEN Export

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
