T1413-107-01 BUSHING
Description

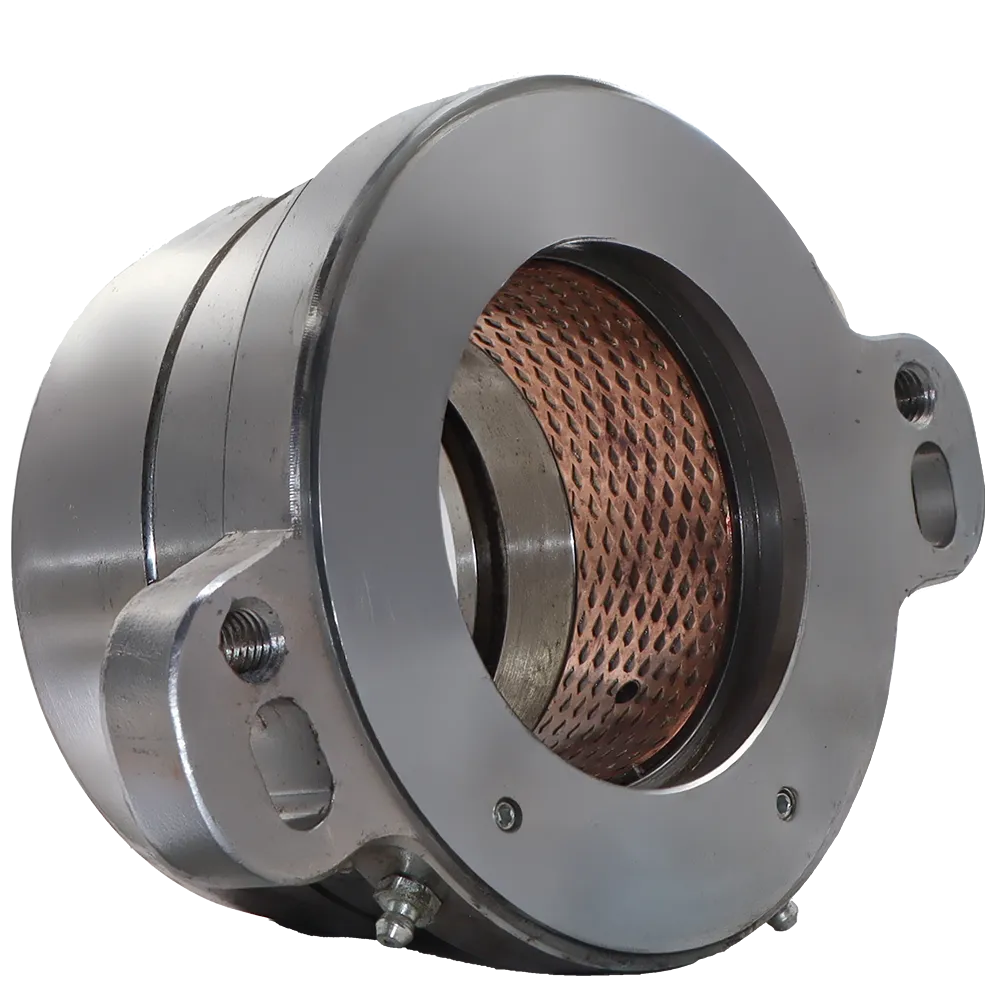

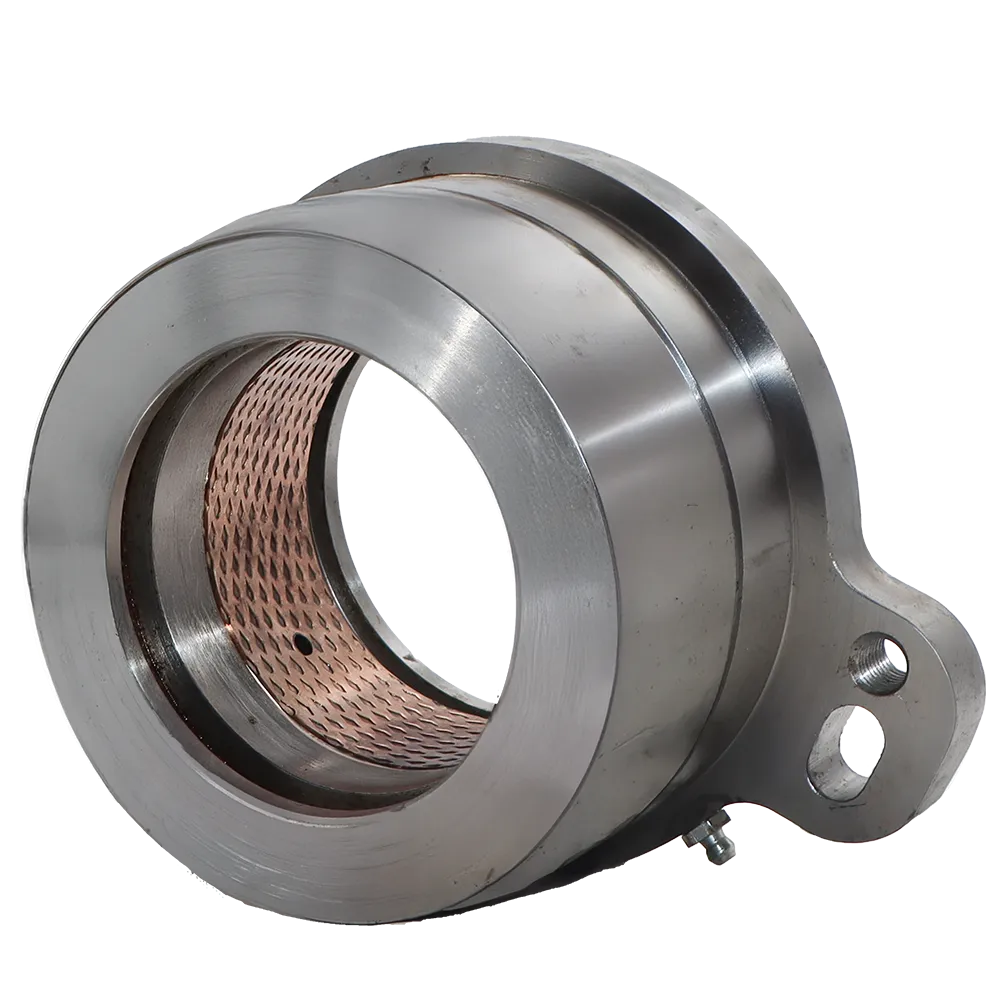

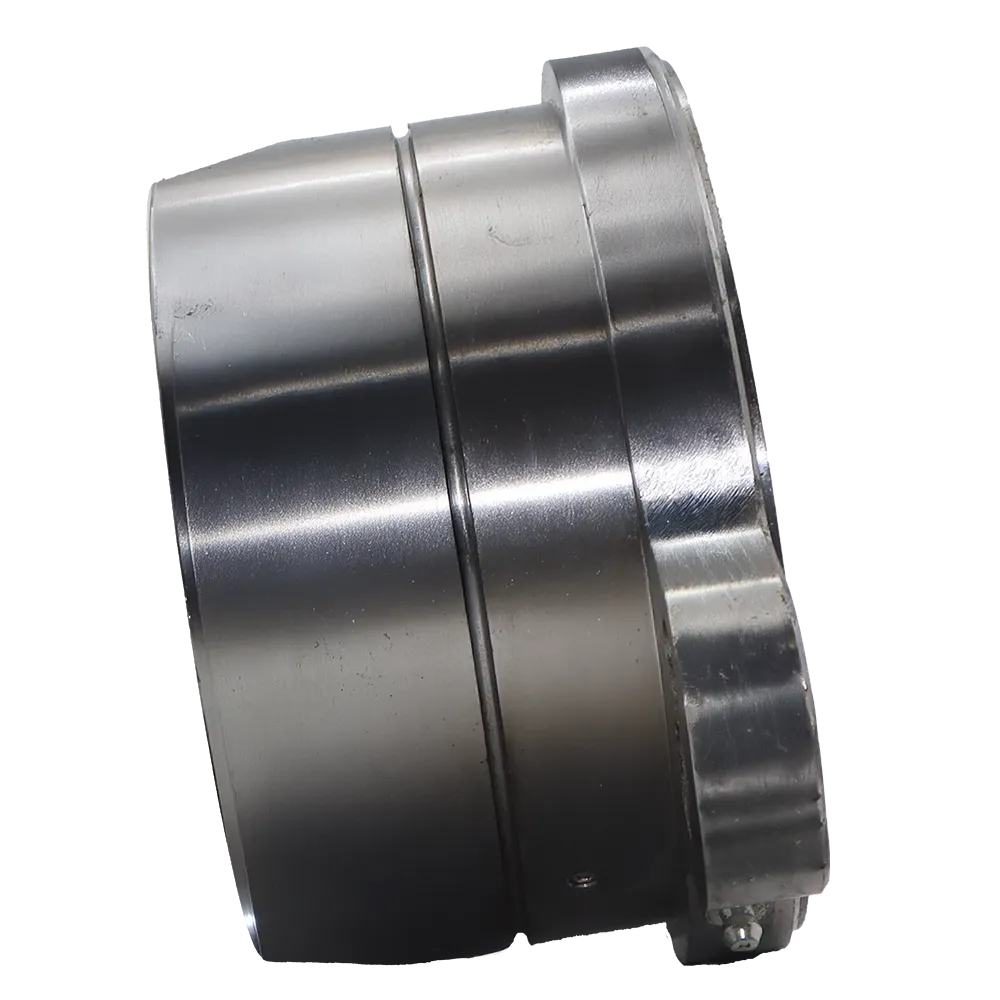

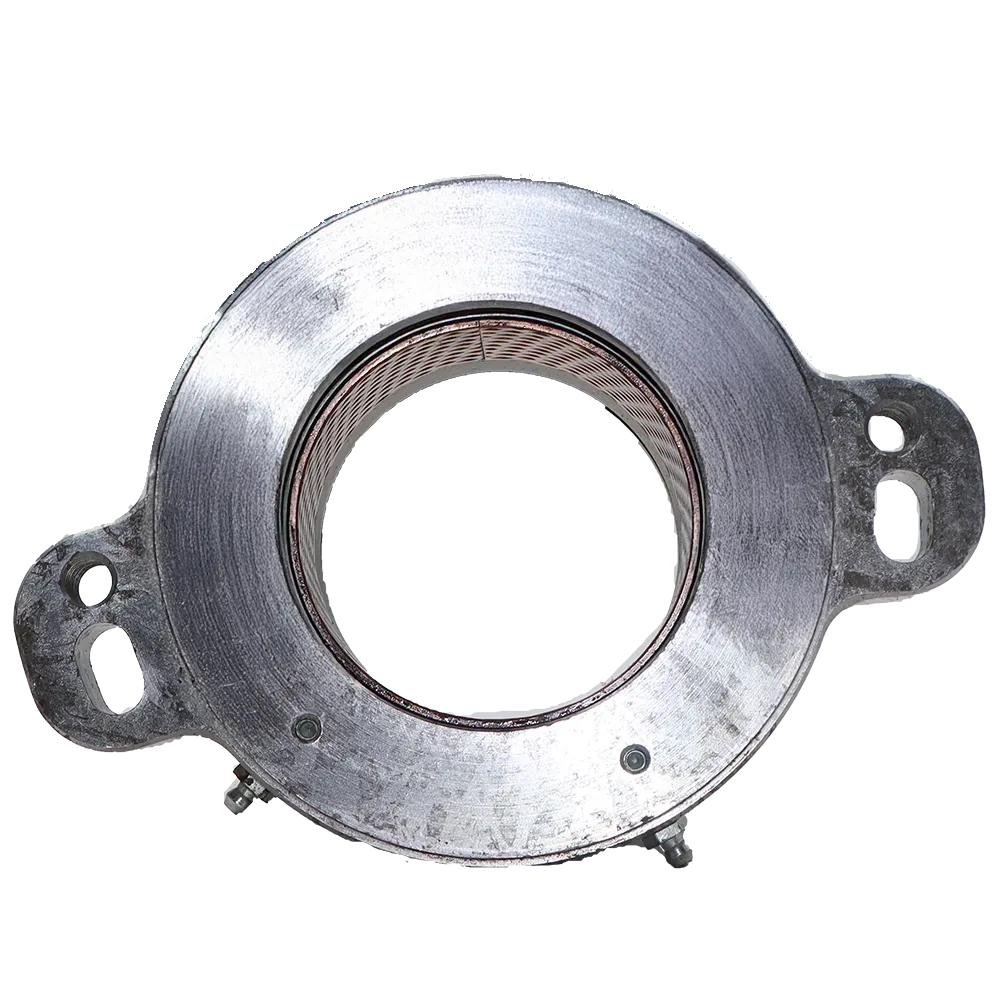

T1413-107-01 BUSHING TITAN – High-Precision Bronze-Lined Bushing for TITAN Rock Drilling Systems The T1413-107-01 BUSHING TITAN is a high-performance, bronze-lined mechanical bushing designed specifically for rock drilling equipment used in heavy-duty applications. This component is essential for the stable, efficient, and vibration-free operation of TITAN drill systems. Its robust dual-material design – featuring an outer alloy-steel housing and a finely perforated bronze inner sleeve – provides unmatched wear resistance and excellent heat dissipation, even under high-speed, high-load conditions. With integrated flange mounts and multiple lubrication ports, the T1413-107-01 bushing is optimized for both performance and maintenance. It’s an ideal fit for TITAN machinery operating in quarrying, mining, tunneling, and heavy construction environments. Product Summary Part Name: T1413-107-01 BUSHING TITAN Function: Rotational interface & vibration damper Type: Bronze mesh lined bushing with integrated flange Mount Style: Flanged with bolting & grease nipples Material Composition: Alloy steel outer shell, sintered bronze inner sleeve Use Case: Rock drill rotary heads, pivot mechanisms, hydraulic systems Distinctive Features of the T1413-107-01 BUSHING TITAN Dual-Material Strength: This bushing combines the toughness of alloy steel with the low-friction and heat-resistant properties of bronze. The result is a high-strength, long-life component built to handle constant movement and extreme pressure. Precision Lining: The internal bronze sleeve is structured with a cross-perforated pattern, which promotes optimal grease retention and distribution across the shaft. Integrated Grease Ports: Designed for continuous lubrication during operation, minimizing wear and extending service intervals. Easy Fit & Removal: The external flange allows for secure bolting to the housing, while pre-drilled holes assist in guided installation and safe extraction. Corrosion Protection: Machined surfaces are treated with an anti-corrosion finish to endure outdoor, dusty, or wet job site conditions. Compatible TITAN Models The T1413-107-01 BUSHING TITAN is compatible with the following TITAN heavy machinery systems: TITAN TRX-120 HD TITAN HammerMaster H20 & H35 TITAN Rotary Drill 600 Series TITAN DRX-450 Tunnel Series TITAN TX-C Hydraulic Systems For precise verification, always cross-reference with the OEM service manual or consult with our team at 3GEN Export. Technical Specifications Property Specification Outer Diameter (OD) Approx. 140 mm Inner Diameter (ID) Approx. 100 mm Length 80 mm Flange Thickness 10 mm Weight Approx. 4.8 kg Material (Outer Shell) Forged Alloy Steel Material (Liner) Sintered Bronze, Cross-Perforated Hardness (Outer) HRC 58–62 Liner Structure Grease retention pattern (mesh style) Lubrication Multiple grease nipples for maintenance Installation & Maintenance Guidelines Mounting: Use torque-calibrated fasteners to secure the flange. Ensure shaft and housing bores are cleaned before fitting. Lubrication: Fill grease ports using standard pressure grease guns. Use a high-temperature lithium-based grease for optimal results. Inspection Interval: Every 250–400 operating hours, depending on the duty cycle and operating environment. Replacement Trigger: Excessive play, grooved liner, or irregular shaft movement. Application Environments Ideal for applications where continuous drilling and pivot movement occurs, such as: Rotary drill motor supports Swing arm articulation points Tunnel borer drive train interfaces Rock drill boom stabilizers Foundation and piling rigs This bushing’s ability to maintain shaft alignment, reduce radial movement, and absorb vibrational loads makes it indispensable in rough environments where TITAN machinery is deployed. Why Order From 3GEN Export? As a trusted OEM supplier, 3GEN Export delivers critical TITAN spare parts like the T1413-107-01 BUSHING TITAN with industry-leading precision, speed, and reliability. All parts undergo strict quality control and are shipped globally within 5 working days . OEM-grade manufacturing Worldwide express shipping 1-year quality guarantee Expert fitment support Transparent, secure transactions Your equipment deserves parts built to last. We make sure you get them fast. Final Note Keep your TITAN drilling system operating at peak performance with reliable, well-fitted bushings. The T1413-107-01 BUSHING TITAN offers the strength, lubrication, and durability required in high-stakes drilling operations. Engineered to reduce friction, protect shafts, and prevent unplanned downtime — it’s a core component for those who build the world. Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
