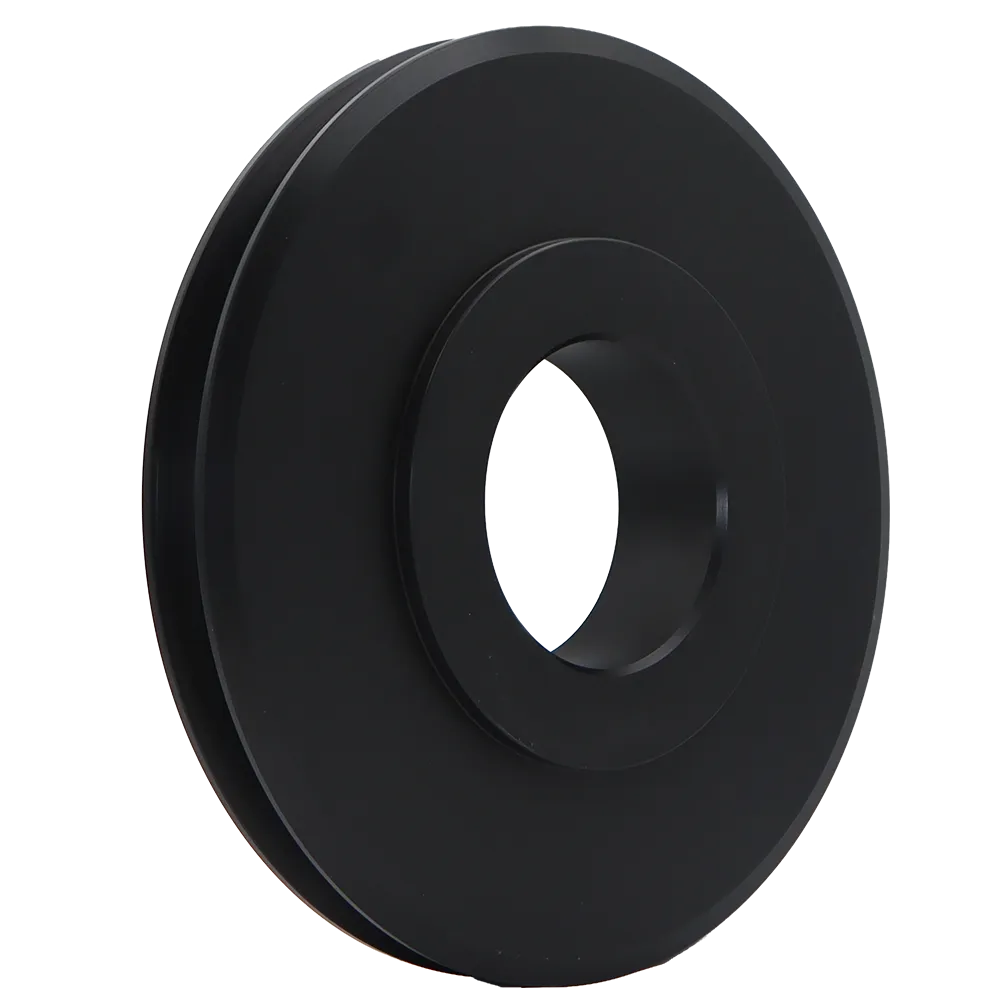

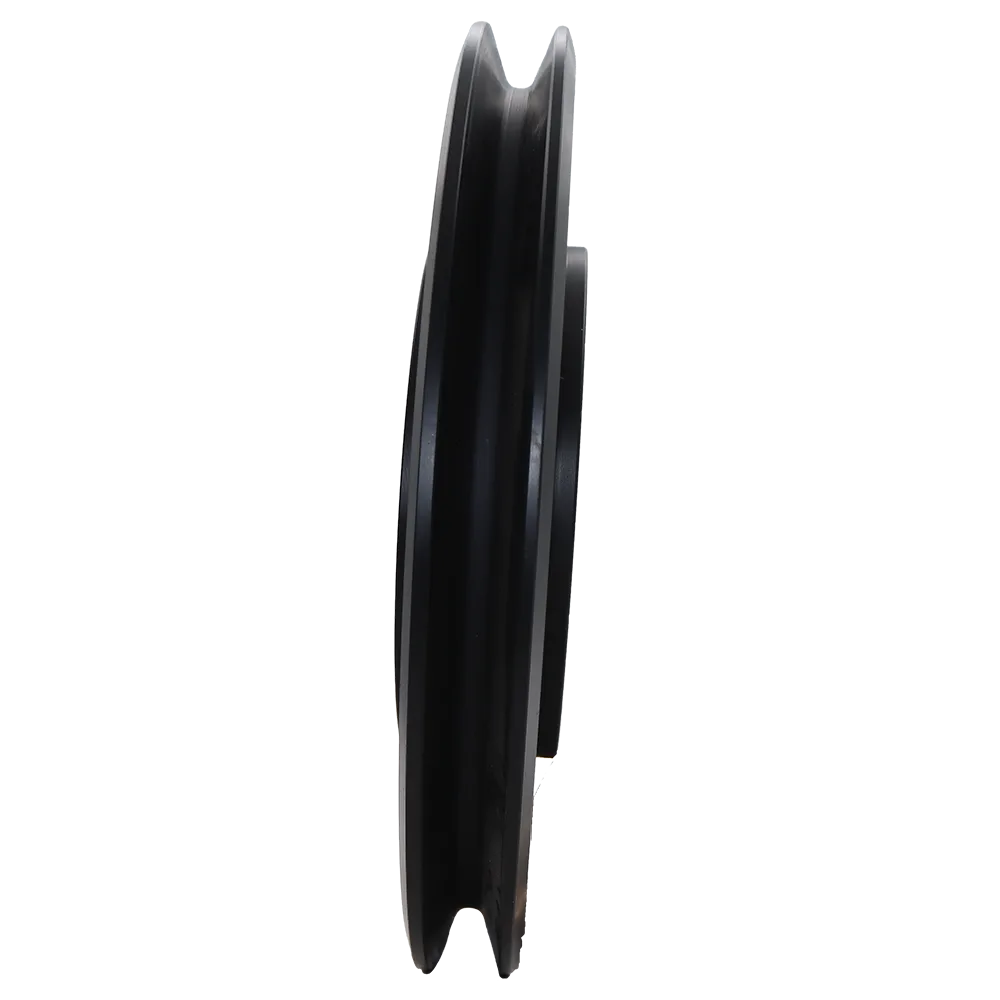

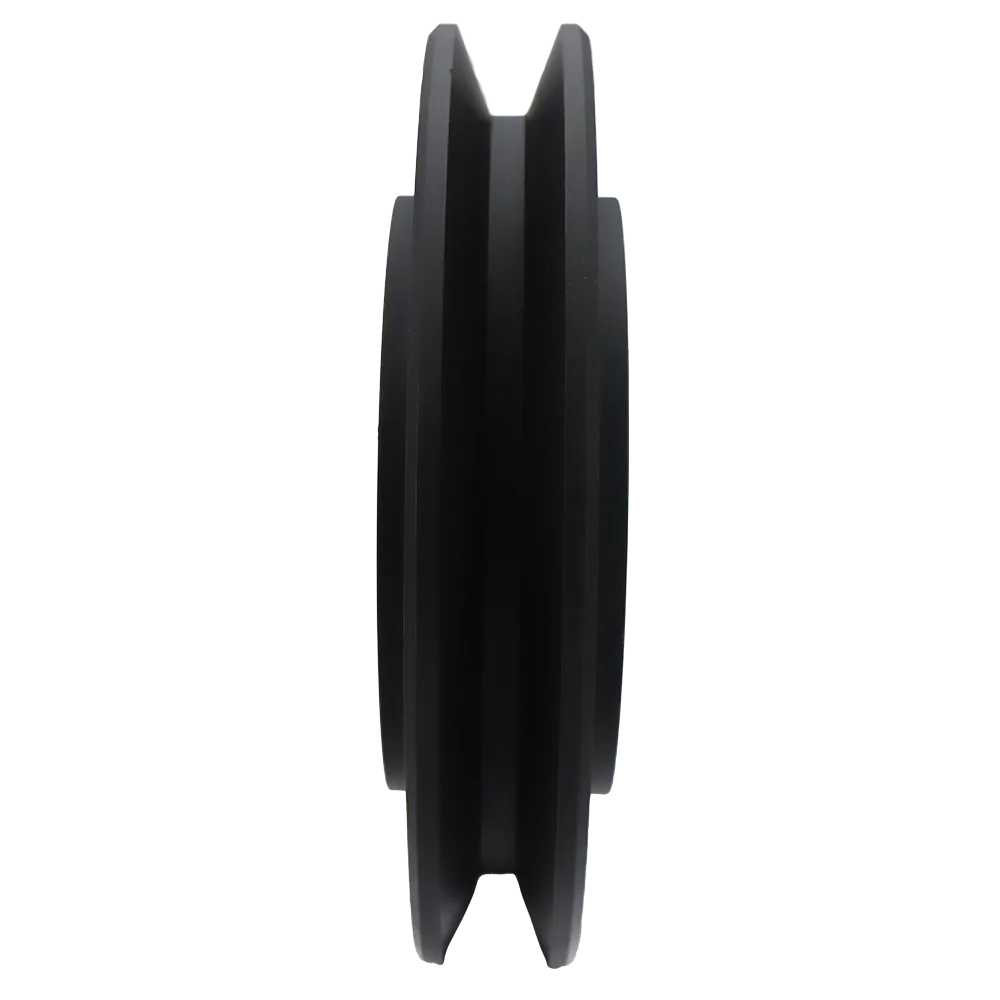

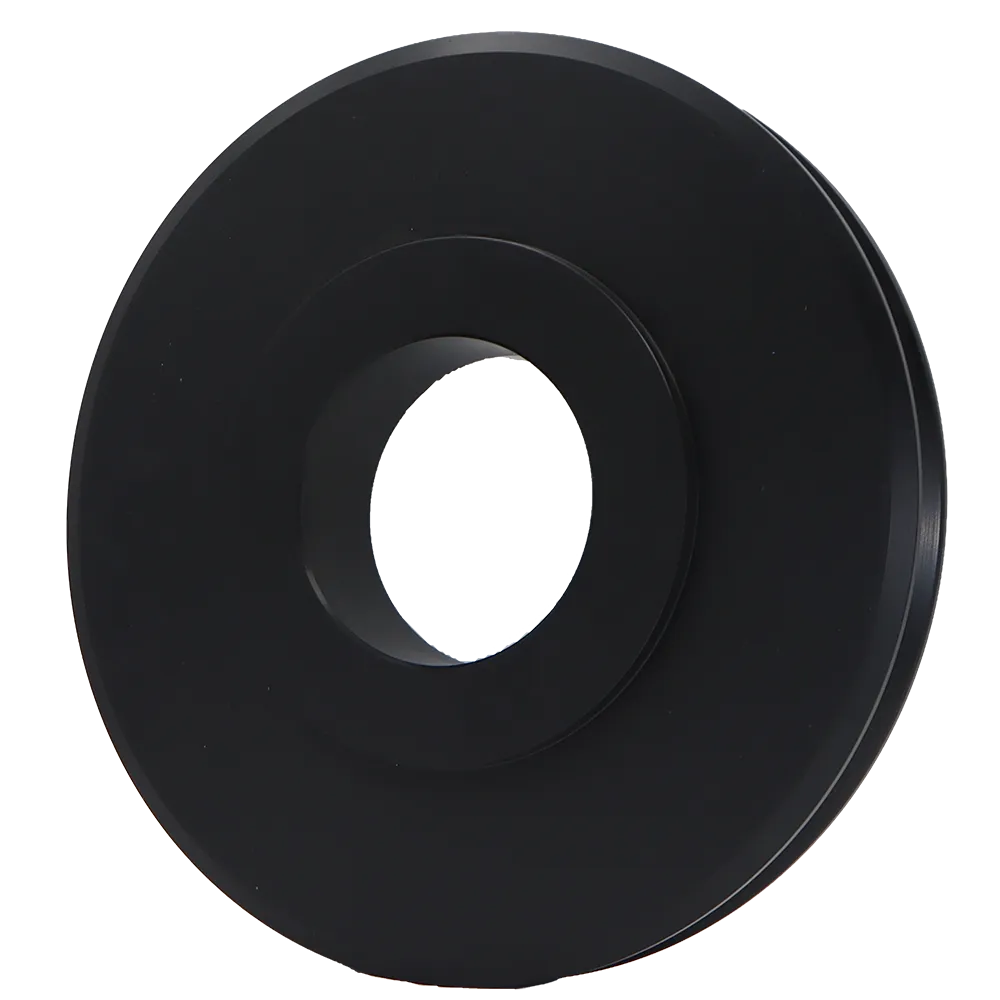

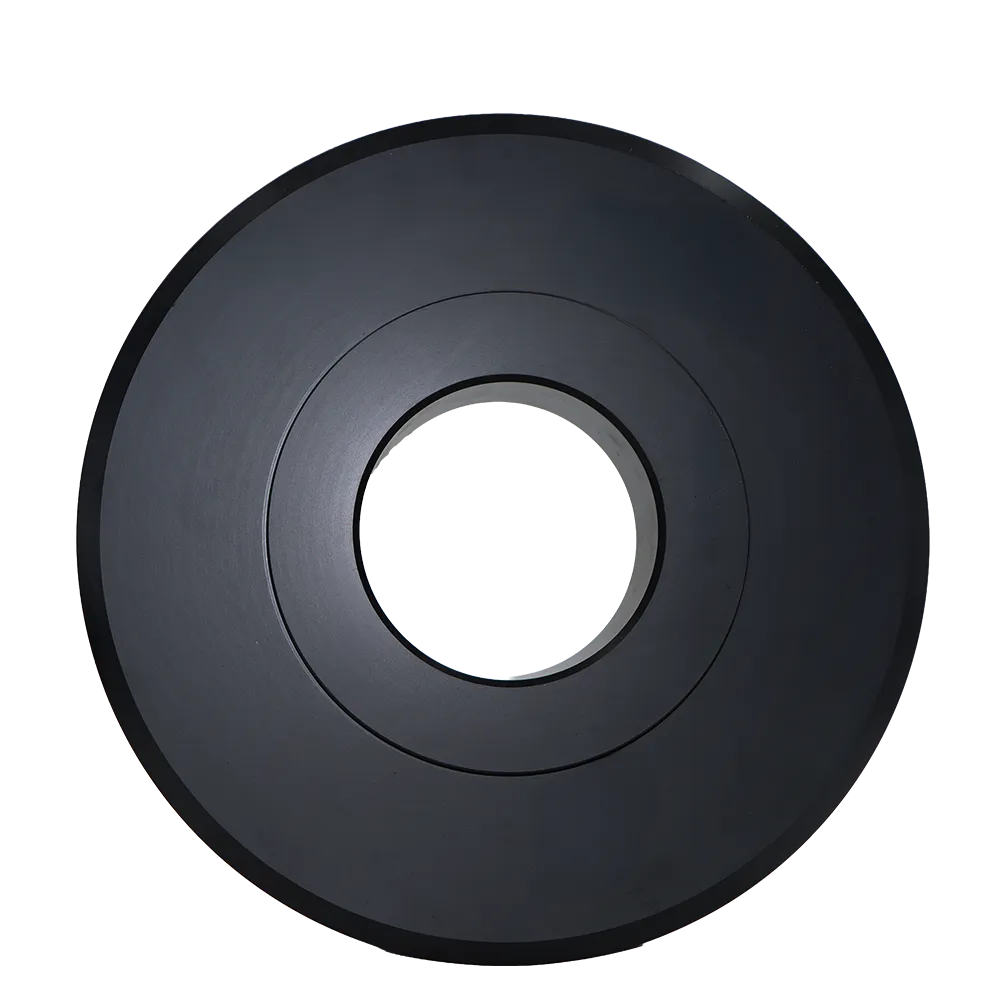

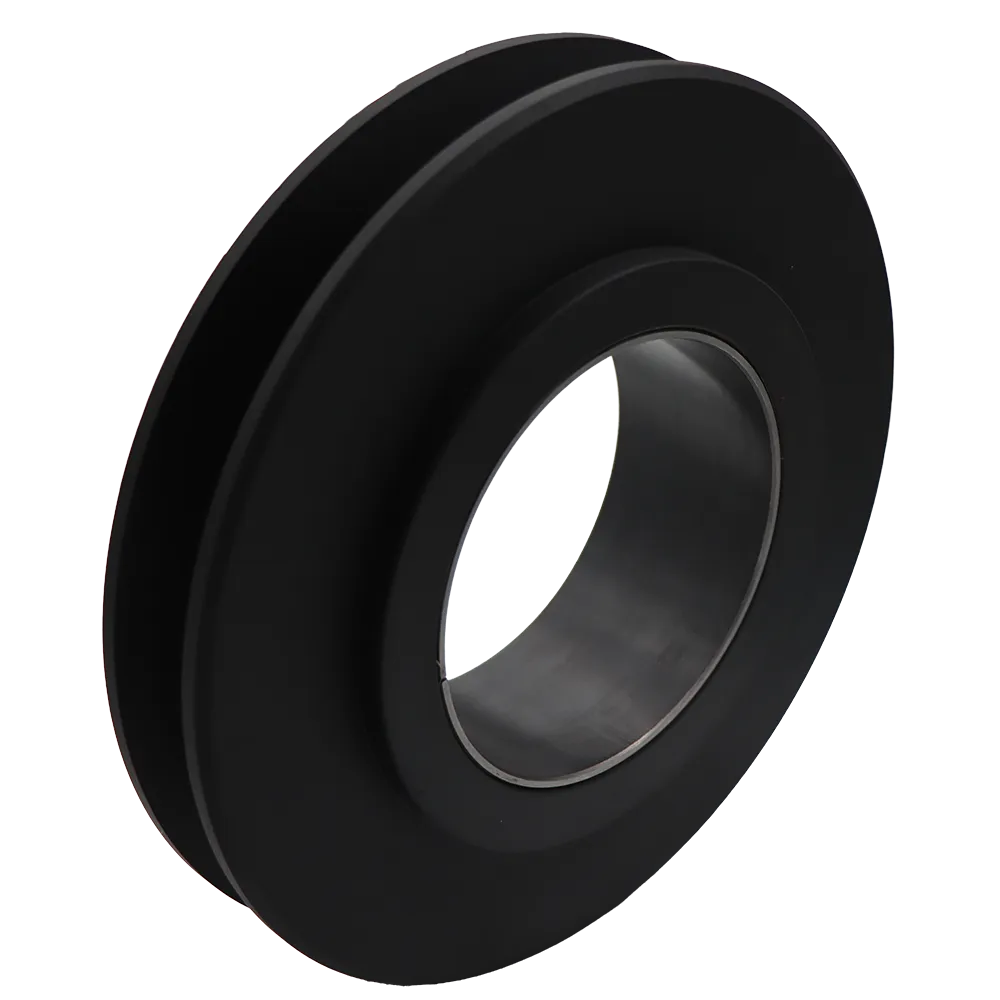

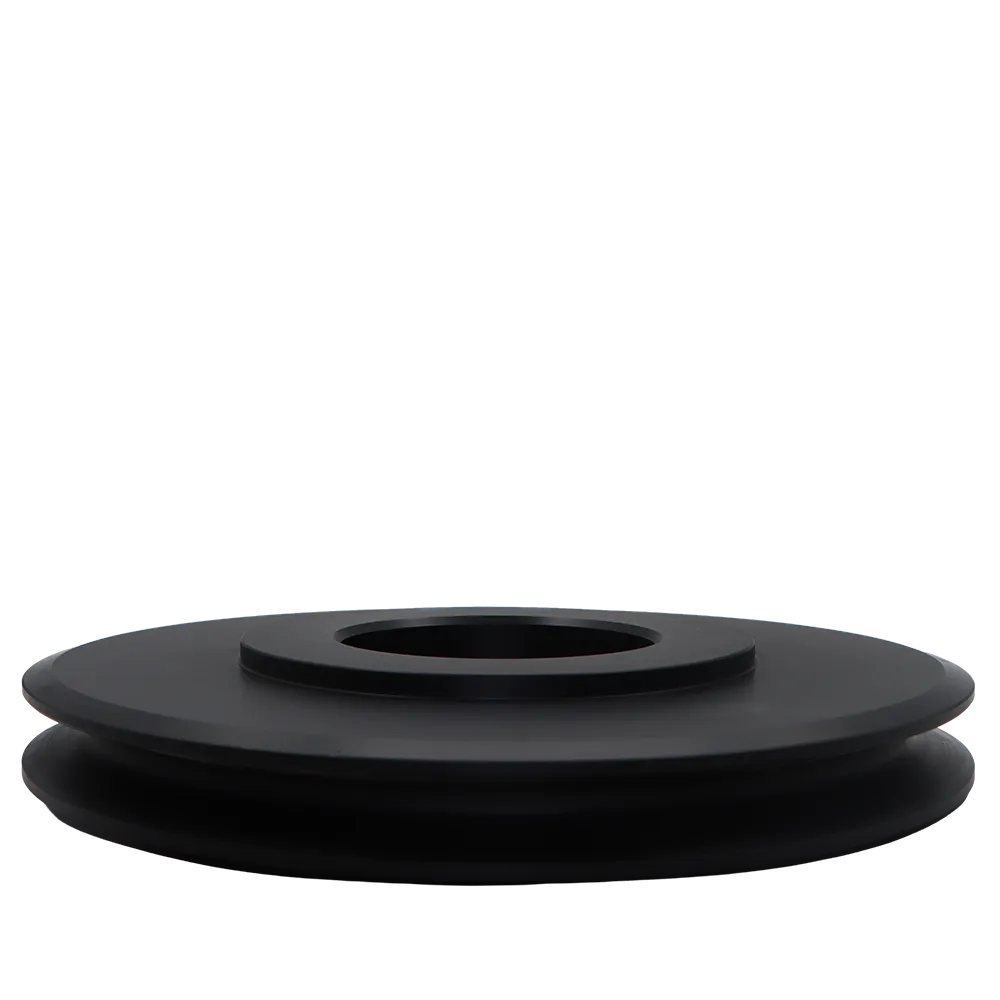

3222309437, 3222 3094 37 PULLEY WHEEL ATLAS COPCO

When your drill rig is working at full load, “small” rotating parts are the ones that quietly decide whether your day runs smoothly or turns into downtime. The 3222309437, 3222 3094 37 PULLEY WHEEL ATLAS COPCO is built to handle exactly that reality: repeated cycles, tension changes, vibration, dust, and the kind of harsh operating rhythm that rock drilling equipment sees every single shift.

This component is commonly referenced as a pulley wheel and is also associated with the ATLAS D7 application. In working terms, it supports controlled routing and stable movement of lines (such as hose/cable runs depending on the configuration), helping the machine maintain consistent operation without unnecessary friction, misalignment, or irregular tension.

At 3GEN Export, we supply this part as an OEM supplier, prepared for fast international dispatch. If you need the 3222 3094 37 PULLEY WHEEL ATLAS COPCO or the 3222309437 reference, we can support global delivery in 5 working days, so you can replace the worn component and get the rig back to production without stretching downtime across weeks.

What the 3222 3094 37 Pulley Wheel Does in Real Operation

A pulley wheel in heavy-duty drilling equipment is not just a “wheel.” It’s a control point.

It helps guide movement under load and keeps a line following the intended path. In a drilling environment, that matters because uncontrolled line movement creates secondary problems:

• Abrasion on hoses or cables from rubbing against frames and edges

• Unstable tension that stresses connectors and fittings

• Misalignment that accelerates wear in nearby parts

• Vibration-induced chatter that can damage surfaces and reduce service life

The 3222309437, 3222 3094 37 PULLEY WHEEL ATLAS COPCO is designed to hold geometry under real field conditions—meaning it’s made for machines that work, not machines that sit.

Where This Pulley Wheel Is Used

This part is listed in association with ATLAS D7. Depending on the build and options, pulley wheels in this family may be used to route and stabilize hose/cable paths and keep movement predictable during boom positioning, feed travel, or service-related line management.

Because machine configurations can vary by year and region, the safest way to confirm fitment is to match:

• Part number: 3222309437

• Spaced format: 3222 3094 37 / 3222-3094-37

• Machine family reference: ATLAS D7

If your plate, manual, or parts list shows these references, you’re in the right place.

Weight and Handling

The listed weight for this pulley wheel is 13.2 kg.

That weight tells you two important things:

1. This is not a lightweight guide roller—it’s built for durability and stability.

2. Installation should be treated like a proper mechanical replacement (safe handling, correct support, and correct fastener torque).

When ordering internationally, weight also matters for shipping planning. At 3GEN Export, we prepare the part for secure packaging so the pulley surface and edges are protected in transit.

Why Pulley Quality Matters More Than Most People Think

If a pulley wheel is slightly off-spec, the machine usually doesn’t fail instantly. Instead, it “starts a chain.”

A poor surface finish can increase friction.

Increased friction raises heat at contact points.

Heat accelerates wear on the line, and wear causes particles and debris.

Debris increases abrasive contact, and that slowly damages other elements around the system.

So the real value of the 3222 3094 37 PULLEY WHEEL ATLAS COPCO isn’t only that it spins—it’s that it helps protect the entire line path, reduces irregular wear, and prevents secondary damage that costs far more than the pulley itself.

Key Technical Characteristics You Should Expect

Exact dimensions can vary by revision and application, so you should verify against your parts book if you need millimeter-level confirmation. But in general, a pulley wheel for drilling equipment in this class should deliver:

1) Stable geometry under load

A pulley wheel must keep its shape and alignment even when tension changes rapidly. This reduces line drift and keeps routing consistent.

2) Controlled surface interaction

The contact zone should be engineered to avoid chewing into lines. That means the profile and edges are shaped for controlled movement rather than aggressive contact.

3) Durable material behavior

In drilling environments, the enemy is not only load—it’s dust, vibration, moisture, and temperature swing. A pulley wheel must hold up against all of it without surface breakdown.

4) Predictable mounting

A well-produced pulley wheel sits correctly on the assembly, maintains correct centering, and doesn’t introduce wobble that multiplies stress elsewhere.

Common Symptoms That Signal Replacement Is Needed

If the pulley wheel is wearing out, the machine often gives you warnings before a total failure happens. Watch for:

• Visible grooves or uneven wear marks on the pulley surface

• Polished bands where the line is slipping or tracking incorrectly

• Unusual noise during movement, especially when tension changes

• Line movement that looks “uneven” or slightly jerky

• Increased line wear (hose/cable outer surface showing early damage)

• Heat buildup near the routing area during operation

If you see these signs, replacing the 3222309437, 3222 3094 37 PULLEY WHEEL ATLAS COPCO early is usually cheaper than waiting—because waiting turns a pulley replacement into a hose/cable replacement plus labor plus downtime.

Installation Guidance

Below is a practical, field-friendly overview. Always follow your machine’s service manual for exact torque values and safety steps.

Step 1: Safety and access

• Park the rig on stable ground

• Lock out movement and isolate power

• Confirm the line is not under tension

• Use safe support if you’re working near suspended elements

Step 2: Inspect routing path before removal

Before pulling the old pulley wheel, look at the whole path:

• Are there rubbing marks on guards or frames?

• Is the line running straight or drifting to one side?

• Are nearby rollers or guides worn as well?

This step prevents replacing a pulley wheel and then discovering the real issue was alignment elsewhere.

Step 3: Remove and compare

When you remove the old unit, compare key points:

• Mounting surfaces

• Profile match

• Any spacers or washers used in the assembly

• Directional fit (if applicable)

Step 4: Install the new pulley wheel

Install the new pulley wheel cleanly:

• Clean the mounting interface

• Avoid contaminating the contact area

• Ensure the pulley sits centered and rotates smoothly

• Confirm the line path is correct before returning to full operation

Step 5: Post-install check

After installation:

• Run a slow functional movement first

• Observe tracking

• Listen for irregular contact

• Re-check fasteners after initial cycle if your maintenance practice requires it

Maintenance Tips That Extend Service Life

If you want the 3222 3094 37 PULLEY WHEEL ATLAS COPCO to last, treat it as part of a system:

• Keep routing areas clean—dust buildup can become grinding paste

• Inspect line condition regularly (a damaged line destroys pulleys faster)

• Watch alignment—misalignment is a silent life-shortener

• Replace worn adjacent guides/rollers in the same maintenance window when needed

• Train operators to report new noise early instead of “working through it”

A pulley wheel replacement is straightforward. Secondary damage is not.

Fitment and Identification Checklist (Before You Order)

To avoid mismatches, confirm at least two of the following:

• 3222309437

• 3222 3094 37 (or 3222-3094-37)

• Description reference: Pulley Wheel

• Machine reference: ATLAS D7

If you can match the part number and the machine family reference, ordering becomes simple and accurate.

Why Buy From 3GEN Export

Industrial customers don’t want “maybe it fits.” They want a part that arrives fast, fits correctly, and runs reliably.

With 3GEN Export:

• You work with an OEM supplier focused on industrial spare parts

• You get organized export handling and protective packing

• You can receive this item with global delivery in 5 working days

• You can request combined shipments if you’re building a maintenance kit

When you’re keeping drilling equipment running, speed and correctness matter just as much as the part itself.

FAQ

Is the 3222 3094 37 pulley wheel the same as 3222309437?

These formats are used as equivalents in listings for the same component family. Always verify using your parts documentation if your rig has special configuration.

What is the weight?

The listed weight is 13.2 kg.

Which machine uses it?

This pulley wheel is associated with ATLAS D7. If your machine documentation uses a slightly different naming convention for the D7 family, match the part number for confirmation.

What if I’m not sure about compatibility?

Send us your machine serial or a screenshot of your parts list reference. We’ll help you confirm the correct match before dispatch.

Ordering Notes

When requesting a quote, include:

• 3222309437

• 3222 3094 37 PULLEY WHEEL ATLAS COPCO

• Machine reference: ATLAS D7

This ensures the fastest response and reduces back-and-forth.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
