PF-SS 30-00
Description

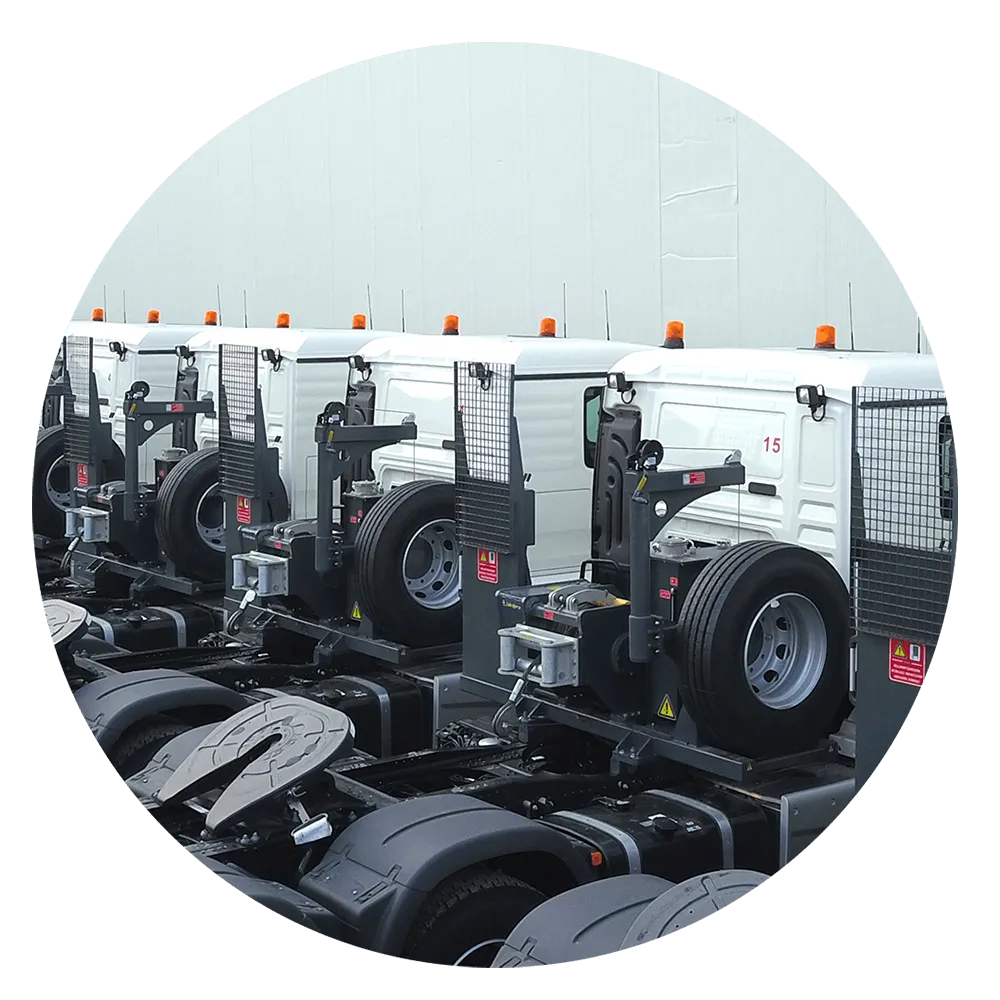

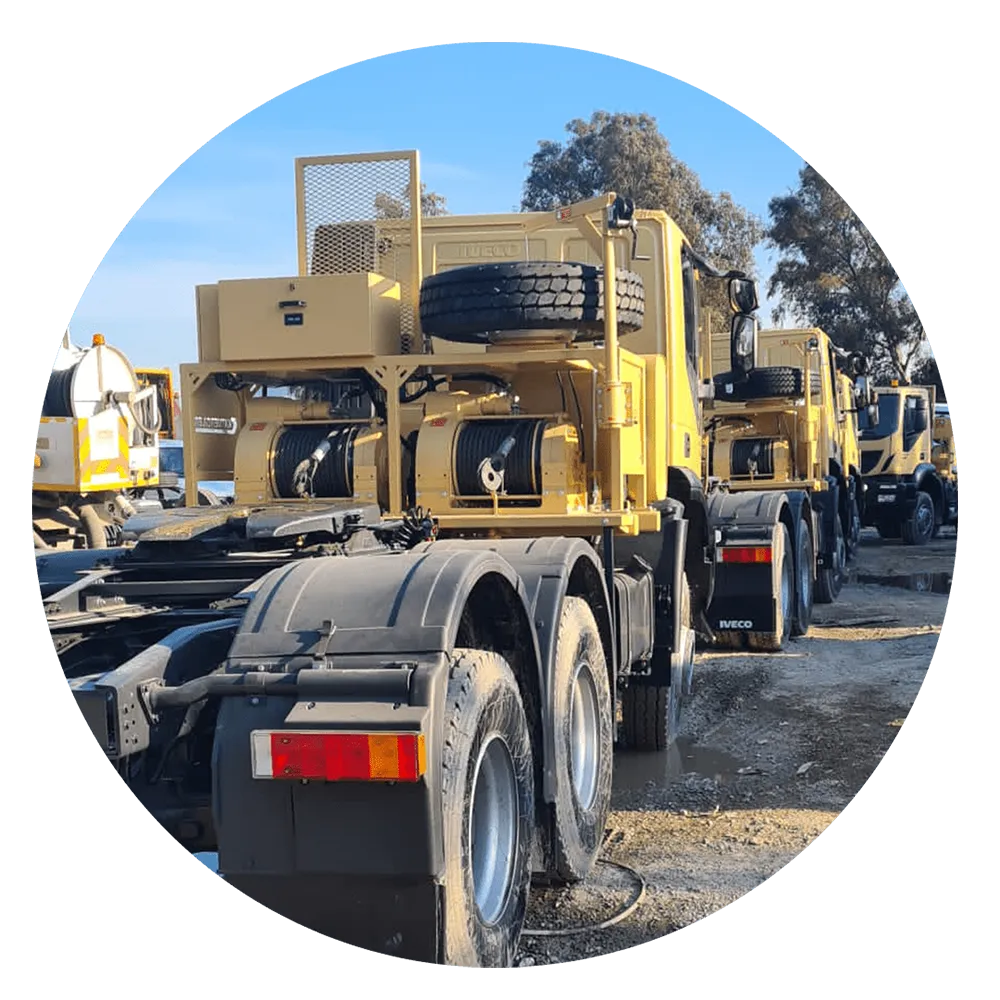

The PF-SS 30-00 Winch System is a double-speed hydraulic winch engineered for high-performance towing and recovery operations involving commercial and service vehicles. With a maximum pulling capacity of 30,000 kg (66,138 lbs) , this winch system delivers exceptional power and efficiency for demanding tasks. The robust design features a durable planetary gear system, a high-performance disc brake, an automatic roller fairlead, and a steel cast body, ensuring longevity and reliability even in the toughest conditions. Fully compliant with industry standards EN 14492 and SAE J706 , the PF-SS 30-00 provides peace of mind with its safe and effective operational performance. With a maximum rope length of 67 meters (220 ft) and a recommended wire rope size of 24 mm (1 5/16") , this winch is versatile enough for various industrial applications. Powered by a 130 cc high-torque hydraulic motor , the winch operates efficiently with a maximum pump flow rate of 75 l/min (19.81 gal/min) , ensuring consistent performance even under heavy loads. One of the key features of the PF-SS 30-00 is its dual-speed capability , allowing for both a high-speed mode for faster rope retrieval and a low-speed mode for enhanced control in more delicate recovery operations. Weighing 500 kg (1,100 lbs) , the system is built for strength and performance without compromising on portability. Custom configurations and additional accessories are available upon request to meet specific operational needs. Technical Specifications: Maximum Pulling Capacity: 30,000 kg (66,138 lbs) Maximum Rope Length: 67 m (220 ft) Recommended Wire Rope: 24 mm (1 5/16") High-Torque Hydraulic Motor: 130 cc (7.93 in³) Maximum Pump Flow Rate: 75 l/min (19.81 gal/min) Maximum Working Pressure: 200 bar (2,900 psi) Weight: 500 kg (1,100 lbs) Performance Data (Per Layer): 1st Layer Pulling Capacity: 30,000 kg (66,138 lbs) | Rope Speed: 6 m/min (19.6 ft/min) (High Speed Mode), 3 m/min (9.8 ft/min) (Low Speed Mode) | Rope Length: 13.25 m (43.5 ft) 2nd Layer Pulling Capacity: 25,384 kg (55,963 lbs) | Rope Speed: 7.1 m/min (23.3 ft/min) (High Speed Mode), 3.5 m/min (11.4 ft/min) (Low Speed Mode) | Rope Length: 28.9 m (94.8 ft) 3rd Layer Pulling Capacity: 22,000 kg (48,501 lbs) | Rope Speed: 8.4 m/min (27.5 ft/min) (High Speed Mode), 4.2 m/min (13.7 ft/min) (Low Speed Mode) | Rope Length: 46.9 m (153.8 ft) 4th Layer Pulling Capacity: 19,411 kg (42,795 lbs) | Rope Speed: 9.5 m/min (31 ft/min) (High Speed Mode), 4.8 m/min (15.7 ft/min) (Low Speed Mode) | Rope Length: 67 m (220 ft) Important Note: This winch is not suitable for lifting applications. For safety, ensure at least 5 wraps of wire rope remain on the drum during use. All performance data provided is based on maximum pressure and flow rates and should be used for reference only.
