PF-SS 40-00
Description

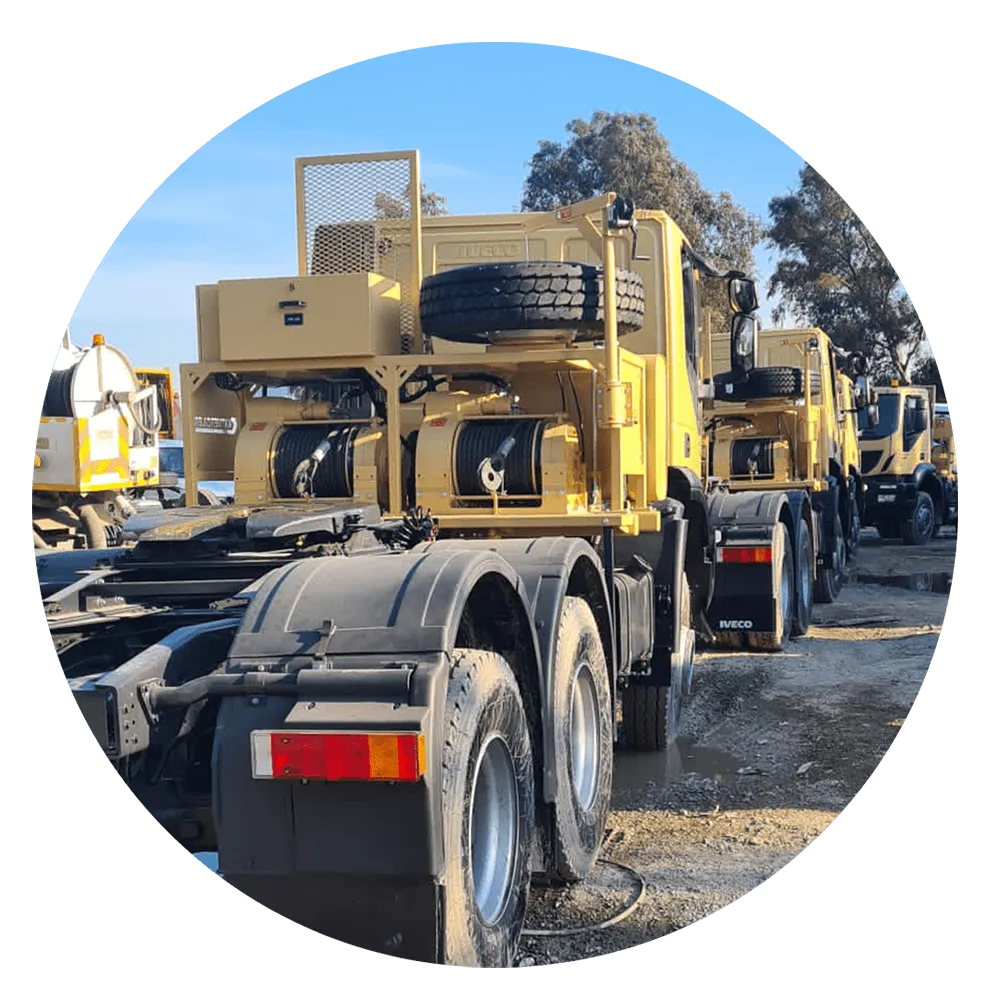

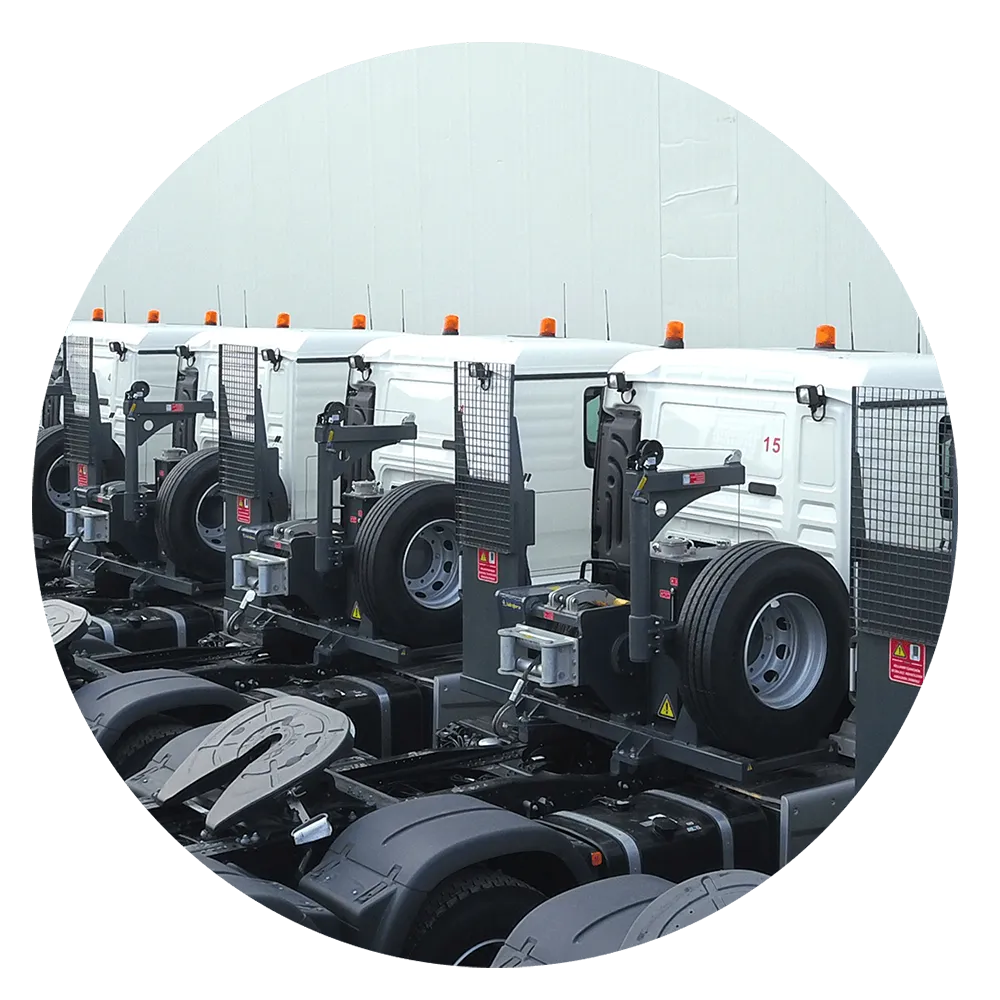

The PF-SS 40-00 Winch System is a high-capacity, double-speed hydraulic winch designed to excel in heavy-duty towing and recovery operations for commercial and service vehicles. With an impressive maximum pulling capacity of 40,000 kg (88,147.8 lbs) , this winch is engineered for the most demanding tasks in industrial and recovery settings. The system boasts a robust design featuring a rigid planetary gear system , disc brake system , automatic roller fairlead , and a steel cast body , ensuring maximum durability and long-lasting performance in challenging conditions. The PF-SS 40-00 is fully compliant with EN 14492 and SAE J706 standards , ensuring its operational safety and efficiency. It is equipped with a 100 cc high-torque hydraulic motor , capable of delivering a maximum pump flow rate of 75 l/min (19.81 gal/min) , providing smooth and consistent pulling power. This winch also supports a maximum rope length of 85 meters (278 ft) , making it versatile enough to tackle extended recovery tasks, and is designed to work with a recommended wire rope size of 28 mm (10/9") . One of the standout features of this winch is its dual-speed functionality , allowing operators to toggle between high-speed and low-speed modes depending on the specific task at hand. This dual-speed feature makes the PF-SS 40-00 perfect for applications where both speed and control are required, offering 7 m/min (22.9 ft/min) speed in high mode and 3 m/min (9.8 ft/min) in low mode during first layer operations. Weighing 775 kg (1,708 lbs) , this winch is built for power without compromising on mobility. Additional configurations and accessories can be customized upon request to meet specific operational requirements. Technical Specifications: Maximum Pulling Capacity: 40,000 kg (88,147.8 lbs) Maximum Rope Length: 85 m (278 ft) Recommended Wire Rope: 28 mm (10/9”) Hydraulic Motor: 100 cc (6.2 in³) Maximum Pump Flow Rate: 75 l/min (19.81 gal/min) Maximum Working Pressure: 210 bar (3,045 psi) Weight: 775 kg (1,708 lbs) Performance Data (Per Layer): 1st Layer Pulling Capacity: 40,000 kg (88,147.8 lbs) | Rope Speed: 7 m/min (22.9 ft/min) (High Speed Mode), 3 m/min (9.8 ft/min) (Low Speed Mode) | Rope Length: 17 m (55.7 ft) 2nd Layer Pulling Capacity: 34,425 kg (75,895 lbs) | Rope Speed: 8.2 m/min (26.9 ft/min) (High Speed Mode), 3.7 m/min (12.1 ft/min) (Low Speed Mode) | Rope Length: 37 m (121.4 ft) 3rd Layer Pulling Capacity: 30,218 kg (66,619 lbs) | Rope Speed: 9.4 m/min (30.8 ft/min) (High Speed Mode), 4.4 m/min (14.4 ft/min) (Low Speed Mode) | Rope Length: 60 m (197 ft) 4th Layer Pulling Capacity: 26,925 kg (59,359 lbs) | Rope Speed: 10.5 m/min (34.4 ft/min) (High Speed Mode), 5 m/min (16.4 ft/min) (Low Speed Mode) | Rope Length: 85 m (278 ft) Important Note: The PF-SS 40-00 winch is not suitable for lifting operations. Ensure that at least 5 wraps of wire rope remain on the drum during operation. The provided performance data is based on maximum pressure and flow rates and is intended for reference only.
