01643-31232 Washer Komatsu D155AX5 (Assembly Diagram)
Description

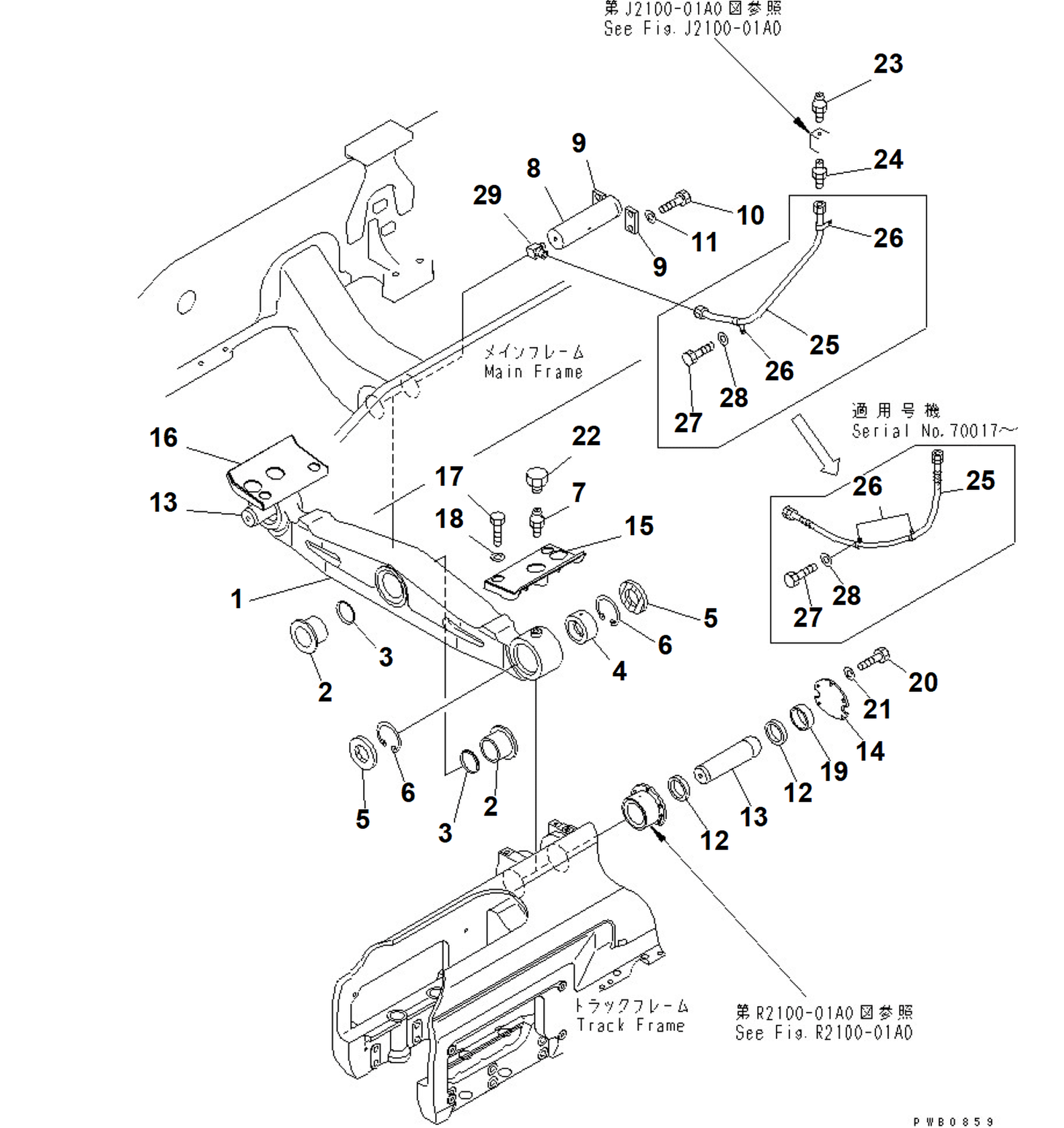

Washer reference 01643-31232 is listed in the Komatsu D155AX5 Equalizer Bar Assembly source parts table. The drawing shows the assembly, not an individual-part photograph. Exact machine and serial fitment needs manual confirmation. Related parts in the Komatsu D155AX5 Equalizer Bar Assembly Open the Komatsu D155AX5 Equalizer Bar Assembly assembly blueprint index. Callouts 24, 17: 01010-61630 — Bolt (BOM quantity 4 per listed source row) Callout 10: 01010-61640 — Bolt (BOM quantity 4) Callout 27: 01010-81220 — Bolt (BOM quantity 2) Callout 20: 01010-81240 — Bolt (BOM quantity 10) Callouts 20, 25, 35, 11, 18: 01643-31645 — Washer (BOM quantities 4, 6, 8 across listed source rows) Callout 6: 04065-01204 — Ring (BOM quantity 4) Callout 9: 04082-00616 — Lock (BOM quantity 2) Callouts 7, 36, 49, 23: 07020-00000 — Fitting,Grease (BOM quantities 1, 2 across listed source rows) Callout 44: 07213-50710 — Connector (BOM quantities 1, 2 across listed source rows) 176-43-41350 — Elbow (BOM quantity 1 per listed source row) 17A-50-00011 — Equalizer Bar Ass’Y (BOM quantity 1) Callout 1: 17A-50-12112 — Equalizer Bar (BOM quantity 1) Callout 8: 17A-50-12121 — Shaft (BOM quantity 1) Callout 12: 17A-50-12181 — Bushing (BOM quantity 4) Callout 14: 17A-50-12211 — Cover (BOM quantity 2) Callout 2: 17A-50-12270 — Bushing (BOM quantity 2) Callout 5: 17A-50-12291 — Seal (BOM quantity 4) Callout 4: 17A-50-12310 — Bushing (BOM quantity 2) Callout 25: 17A-50-12321 — Tube (BOM quantity 1) Callout 19: 17A-50-12331 — Spacer (BOM quantity 2) Callout 13: 17A-50-12391 — Pin (BOM quantity 2) Callout 15: 17A-50-12411 — Cover,L.H. (BOM quantity 1) Callout 16: 17A-50-12421 — Cover,R.H. (BOM quantity 1) Callout 3: 17A-50-12441 — Seal (BOM quantity 2) Callouts 38, 25: 17M-03-26140 — Hose (BOM quantity 1 per listed source row) Callout 22: 195-50-22990 — Plug (BOM quantity 2) Callouts 39, 26: 198-904-4280 — Clip (BOM quantity 2 per listed source row) Callouts 42, 29: 202-62-21430 — Elbow (BOM quantity 1 per listed source row) Callouts 37, 24: 203-62-21740 — Nipple (BOM quantity 1 per listed source row) 21T-38-11330 — Clip (BOM quantity 2) Related parts in Komatsu D61EX Final Drive Assembly Open the assembly blueprint index. 134-27-00113 — Final Drive Assembly,L.H. (source BOM quantities: 1) 134-27-00111 — Final Drive Assembly,L.H. (source BOM quantities: 1) 134-27-00110 — Final Drive Assembly,L.H. (source BOM quantities: 1) 134-27-00123 — Final Drive Assembly,R.H. (source BOM quantities: 1) 134-27-00122 — Final Drive Assembly,R.H. (source BOM quantities: 1) 134-27-00121 — Final Drive Assembly,R.H. (source BOM quantities: 1) 134-27-00120 — Final Drive Assembly,R.H. (source BOM quantities: 1) Callout 1: 134-27-61113 — Case,L.H. (source BOM quantities: 1) 134-27-61112 — Case,L.H. (source BOM quantities: 1) 134-27-61123 — Case,R.H. (source BOM quantities: 1) 134-27-61122 — Case,R.H. (source BOM quantities: 1) Callout 2: 134-27-61133 — Cover,L.H. (source BOM quantities: 1) 134-27-61132 — Cover,L.H. (source BOM quantities: 1) 134-27-61143 — Cover,R.H. (source BOM quantities: 1) 134-27-61142 — Cover,R.H. (source BOM quantities: 1) Callout 3: 01010-82060 — Bolt (source BOM quantities: 13) Callout 4: 01643-32060 — Washer (source BOM quantities: 13) Callout 5: 07044-13620 — Plug (source BOM quantities: 2) Callout 6: 07002-13634 — O-Ring (source BOM quantities: 2) Callout 7: 07043-70312 — Plug (source BOM quantities: 2) Callout 8: 134-27-61481 — Cover,L.H. (source BOM quantities: 1) 134-27-61491 — Cover,R.H. (source BOM quantities: 1) Callout 9: 01010-81225 — Bolt (source BOM quantities: 2) Callout 11: 134-27-61170 — Cover (source BOM quantities: 1) Callout 12: 01010-81235 — Bolt (source BOM quantities: 10) Callout 14: 07000-15320 — O-Ring (source BOM quantities: 1)
