15271108, 152 711 08 BUSHING BEARING SANDVIK

When a rock drill is working at full load, the smallest contact surfaces carry some of the biggest responsibilities. 15271108, 152 711 08 BUSHING BEARING SANDVIK is one of those parts: a precision wear component designed to support rotating and sliding interfaces, keep clearances stable, and protect higher-cost assemblies from accelerated wear. In practical terms, this bushing-bearing style ring works like a controlled “sacrificial interface” between moving parts—absorbing friction, distributing load evenly, and helping the drifter maintain smooth, predictable operation.

At 3GEN Export, we supply 15271108, 152 711 08 BUSHING BEARING SANDVIK as an OEM-grade spare part manufactured to match the required geometry, hardness, and surface finish expectations used in drilling applications. That matters because this component lives in a harsh reality: vibration, rock dust, flushing media, heat, and intermittent shock loads. A well-produced bearing bushing helps reduce micro-scoring, prevents uneven contact patterns, and supports stable alignment through long drilling cycles.

If you’re building a maintenance plan, this part is rarely the “headline” item—but it is often the difference between a drifter that feels tight and efficient versus one that gradually develops noise, heat, play, and performance loss.

What this part does inside the drilling system

A bearing bushing is typically used where you need:

• A consistent low-friction interface

• Controlled internal clearance between mating components

• Load distribution across a wider contact area

• Protection of shafts/housings from direct metal-to-metal wear

In a drifter environment, these functions become even more critical because the system is not just rotating—it’s also experiencing percussion energy and torsional spikes. 15271108, 152 711 08 BUSHING BEARING SANDVIK supports stable motion and reduces the chance that vibration turns into premature wear at the adjacent components.

Why stable tolerances matter

Even slight changes in internal diameter or roundness can create:

• Eccentric wear patterns

• Higher heat generation

• Reduced lubrication film stability

• Secondary damage to shafts, sleeves, and housings

That’s why OEM-grade manufacturing is not just a buzzword here. It’s about consistent machining, clean surface finish, and reliable material behavior under load.

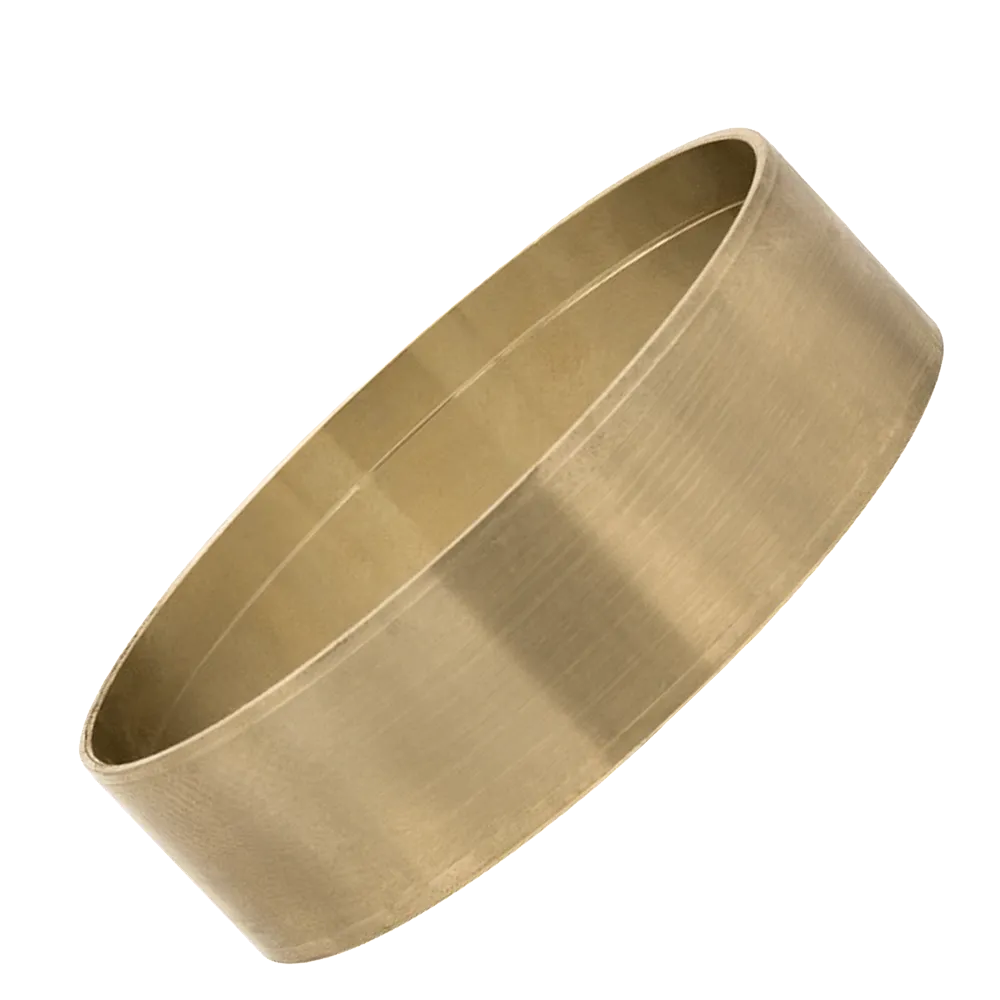

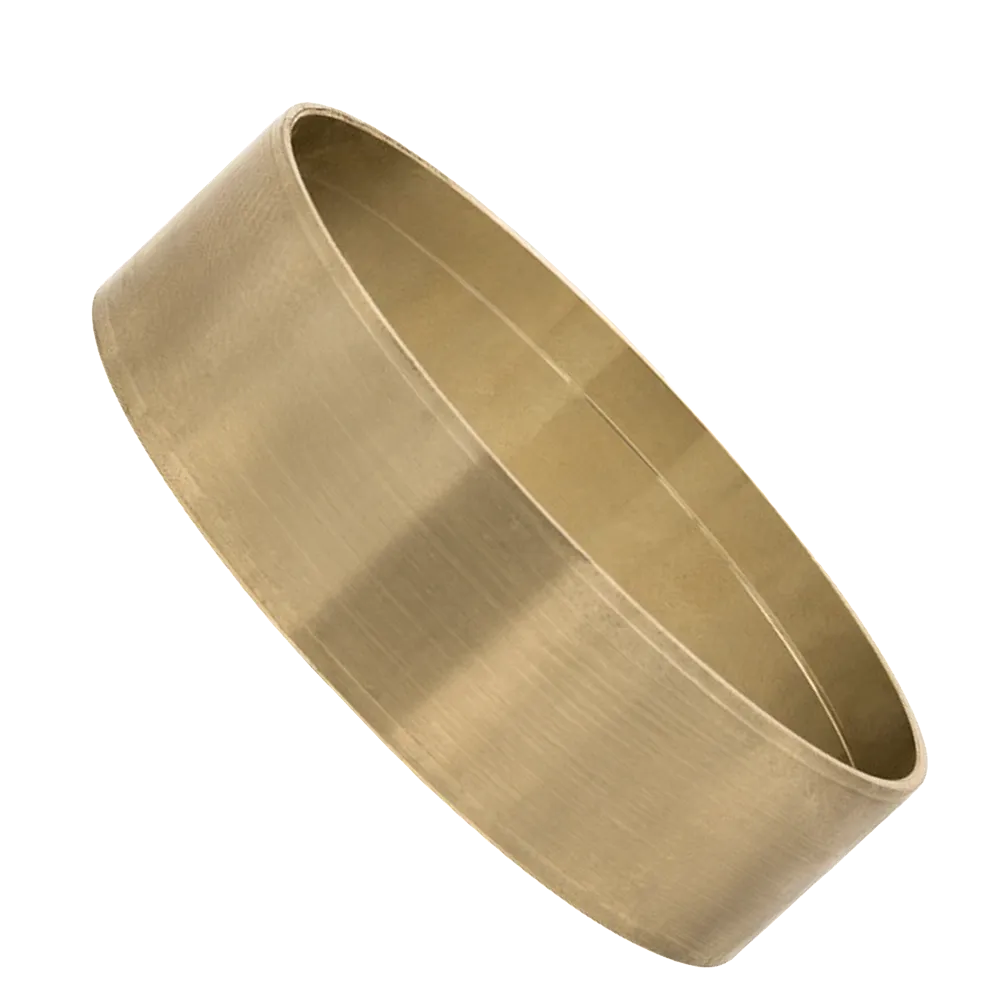

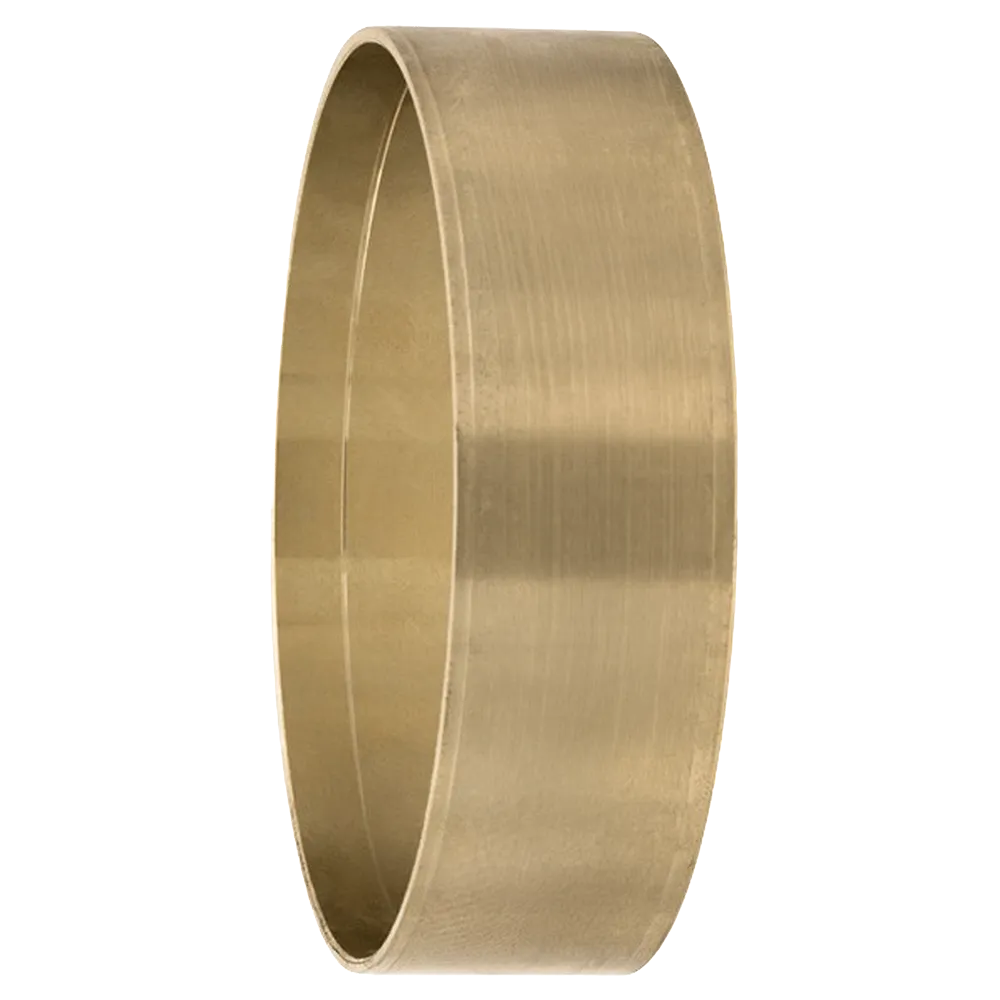

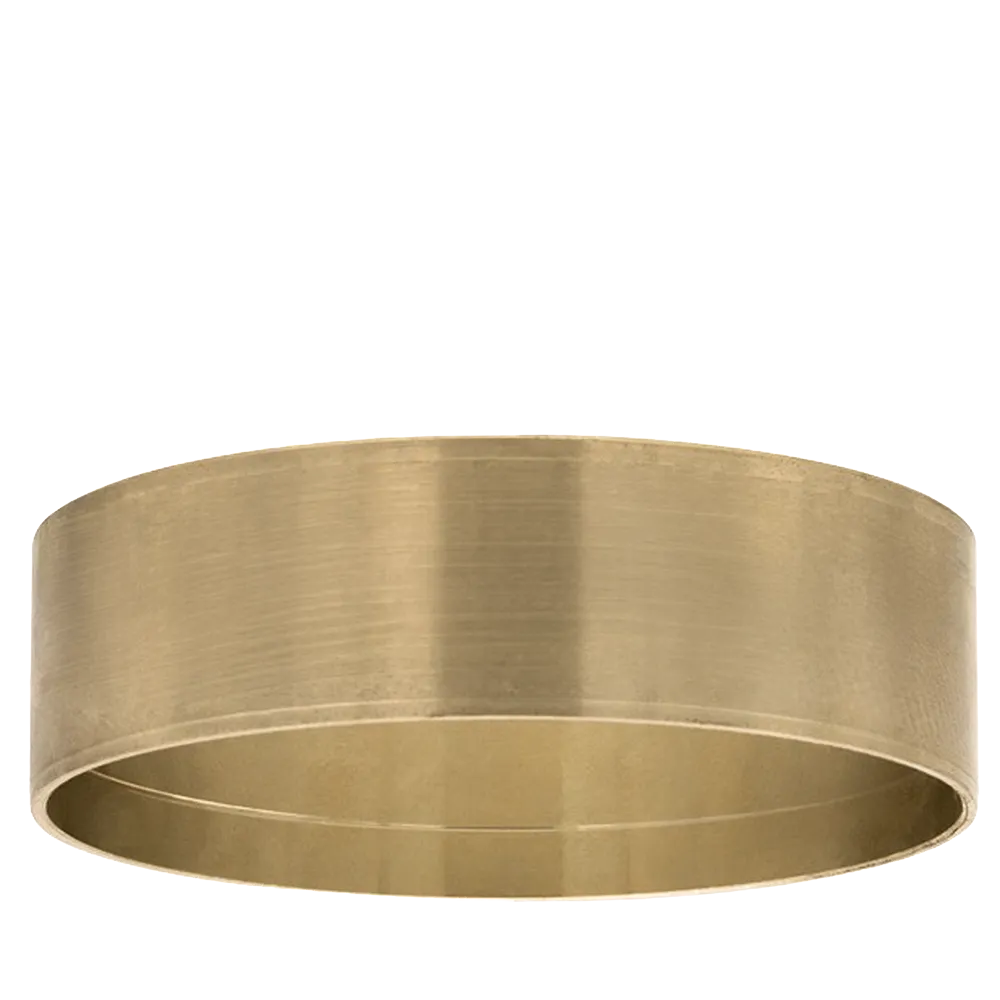

Visual notes from the product images

From the images you provided, the component appears as a cylindrical ring/bushing with a smooth outer surface and a precision inner diameter. The finish and uniform profile indicate it’s designed to sit concentrically in its seat and provide a stable bearing surface. This type of geometry is common for bearing bushings used in drifter assemblies where alignment and repeatable fit are essential.

Key benefits of using 15271108 in maintenance cycles

1) Protects high-value assemblies

Replacing a bearing bushing on schedule is far more cost-effective than waiting until the contact surfaces damage a shaft or housing. 15271108, 152 711 08 BUSHING BEARING SANDVIK is typically selected because it helps keep the “expensive” components in tolerance longer.

2) Helps maintain drilling consistency

As wear grows, the drill can feel less stable—more vibration, less efficiency, and more energy loss. A fresh 15271108, 152 711 08 BUSHING BEARING SANDVIK supports smoother load transfer and more consistent performance.

3) Reduces downtime risk

Worn bushings tend to accelerate wear around them. That chain reaction often turns a planned service into an unplanned stoppage. Proactive replacement helps keep your maintenance calendar in control.

4) Supports lubrication performance

A correctly sized bushing helps maintain an effective lubrication film. When clearances become too large, lubrication can become inconsistent—leading to heat and scoring.

Technical details and typical specifications (application-based)

Because Sandvik drifter configurations can vary by model and revision, the most reliable “specification” is correct part-number matching. That said, a bearing bushing like 15271108, 152 711 08 BUSHING BEARING SANDVIK is typically defined by:

• Precision-machined ring geometry

• Tight tolerance on ID/OD and roundness

• Wear-optimized material selection (commonly bronze-type bearing materials or alloyed wear metals, depending on design)

• Surface finish engineered to reduce friction and resist scoring

• Clean edges/chamfers for correct seating

If you share your drifter serial or assembly position, we can help confirm placement and pairing components in the same wear set.

Estimated weight (KG)

Based on the part’s ring-style geometry and typical dimensions for drifter bearing bushings, the estimated weight for 15271108, 152 711 08 BUSHING BEARING SANDVIK is:

• Approx. 0.4 – 0.9 kg

Exact weight can vary by revision and dimensions; for shipping accuracy, we recommend confirming via packing list or measured dispatch weight.

Compatible SANDVIK models (where this part number is used)

Common listed compatibility for 15271108, 152 711 08 BUSHING BEARING SANDVIK includes the following Sandvik equipment/drifter families: HFX5T, HLX5, HLX5T, and RDX5.

If your rig uses a drifter variant within those series, matching by part number is still the safest method—especially when there are sub-variants or updated assemblies.

Installation guidance and best practices

Below is a practical, field-friendly installation approach that aligns with how bearing bushings are typically handled in drifter maintenance.

Step 1: Clean and inspect the seating area

Before installing 15271108, 152 711 08 BUSHING BEARING SANDVIK, ensure the bore/seat is:

• Free of scoring, burrs, and embedded debris

• Cleaned of old lubricant residue and dust

• Checked for ovality or damage that could prevent full seating

A bushing installed into a damaged seat will not wear evenly.

Step 2: Confirm fit and orientation

Most ring bushings are symmetric, but always confirm:

• Correct part number

• Correct position in the assembly

• Any chamfer/edge requirement for seating

Even if it “fits,” incorrect placement can cause rapid wear.

Step 3: Use correct pressing method

Avoid hammering. Use:

• A proper press tool

• A sleeve driver that contacts the correct surface evenly

• Controlled force to prevent distortion

Uneven press force can deform the bushing and create tight spots.

Step 4: Check mating component condition

A new 15271108, 152 711 08 BUSHING BEARING SANDVIK installed against a scored shaft or worn counterpart will wear faster. Inspect:

• Shaft surface finish

• Signs of blueing/overheating

• Abnormal grooves or pitting

If the mating part is damaged, replace as a set when possible.

Step 5: Lubrication and run-in

After assembly:

• Apply recommended lubrication method for the drifter

• Run briefly at controlled conditions (where possible)

• Monitor heat, vibration, and unusual noise

This helps confirm the bushing is seated and aligned correctly.

Common failure symptoms and what they usually mean

Abnormal heat near the bearing area

Often linked to:

• Too-tight clearance

• Poor lubrication

• Misalignment

• Contamination

Metallic noise or “dry” running sound

Often linked to:

• Lubrication starvation

• Excessive clearance from wear

• Surface scoring

Rapid repeat wear after replacement

Often caused by:

• Damaged seat or shaft

• Contamination ingress (dust/flushing issues)

• Incorrect installation method

A bearing bushing is usually a “messenger” part—if it fails quickly, it’s reporting a deeper condition.

Why 3GEN Export for OEM-grade supply

3GEN Export supplies 15271108, 152 711 08 BUSHING BEARING SANDVIK as an OEM-grade spare part suitable for demanding drilling environments. We focus on consistent manufacturing standards, reliable sourcing, and practical logistics for operators who can’t afford downtime.

• OEM-grade supply (built to match functional requirements and fit)

• Worldwide shipping

• Delivery in 5 working days to most destinations (depending on customs/route)

Ordering notes (to avoid mismatches)

When ordering 15271108, 152 711 08 BUSHING BEARING SANDVIK, it helps to share:

• Drifter model (e.g., HLX5 / HLX5T / RDX5 family)

• Equipment serial number

• Any alternative part numbers

• Photos of the installed position (if available)

This reduces the risk of revision mismatch and helps confirm associated wear parts you may want to replace together.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
