15403688, 154 036 88 SEAL HOUSING SANDVIK

When uptime is everything, the smallest interfaces inside a rock drill can become the biggest decision-makers. The 15403688, 154 036 88 SEAL HOUSING SANDVIK is one of those “silent performance” components: a precision-machined housing designed to support a sealing arrangement, maintain alignment, and help manage the harsh realities of percussive drilling, pressure pulses, heat cycles, abrasive contamination, and heavy vibration.

In drifter and rock drill systems, sealing is never just about “stopping leaks.” It’s about controlling where energy goes, keeping lubrication where it belongs, protecting internal surfaces from scoring, and preventing dust-laden ingress that can accelerate wear across multiple assemblies. The 15403688 / 154 036 88 seal-housing body contributes to that control by providing a stable seat and geometry for seal elements and related hardware, helping the system stay consistent through long duty cycles.

At 3GEN Export, we supply this part as an OEM-standard manufactured replacement, produced with tight dimensional control and consistent metallurgy. We ship worldwide in 5 working days, helping drilling operations and service teams shorten downtime and avoid waiting on long procurement cycles.

What the Seal Housing Does in a Rock Drill System

A seal housing like 15403688, 154 036 88 SEAL HOUSING SANDVIK functions as a structural “home” for sealing components, typically O-rings, U-cup style seals, and/or other sealing rings depending on the design. Its job is to maintain the correct compression and positioning of the seal set, so sealing contact remains stable even when the tool is exposed to:

• High-frequency percussion impact loads

• Hydraulic pressure variation and transient spikes

• Heat generated by friction and energy transfer

• Fine dust, rock fines, and moisture

• Chemical exposure (lubricants, drilling fluids, cleaning solvents)

In practical terms, the 154 036 88 housing supports predictable sealing behavior. That predictability directly affects operating cleanliness, lubrication retention, and long-term wear patterns. A seal may be “the rubber,” but the housing is what makes the seal behave like a seal instead of becoming a consumable that fails early.

Why Housing Geometry Matters

Seal life is strongly influenced by housing geometry. The surface finish, groove dimensions, and alignment features help prevent:

• Seal extrusion under pressure

• Uneven contact that causes localized heat and rapid wear

• Misalignment that creates edge loading and tearing

• Micro-movement that leads to fretting and leakage paths

A well-machined 15403688 replacement helps keep sealing performance consistent and reduces the risk of repeat failures that look like “bad seals” but are actually caused by poor seating or distortion.

What You Can See From the Part Design

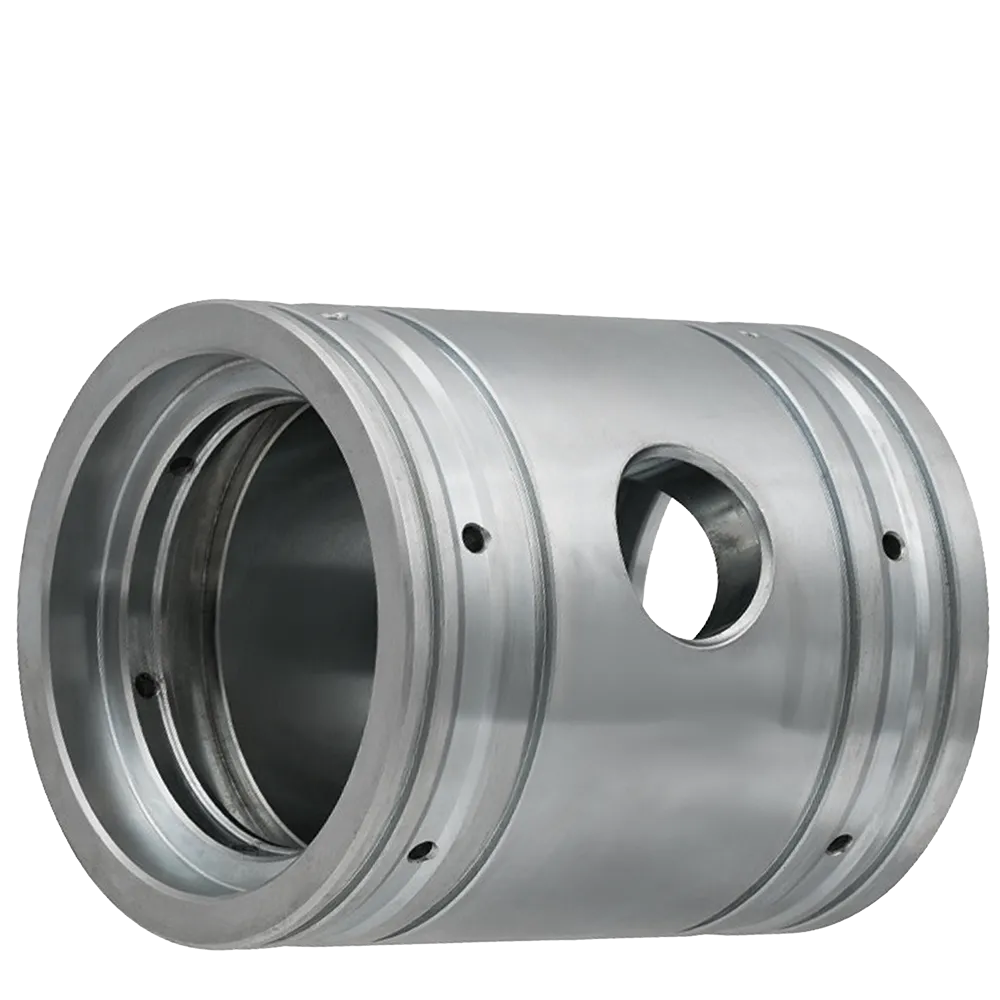

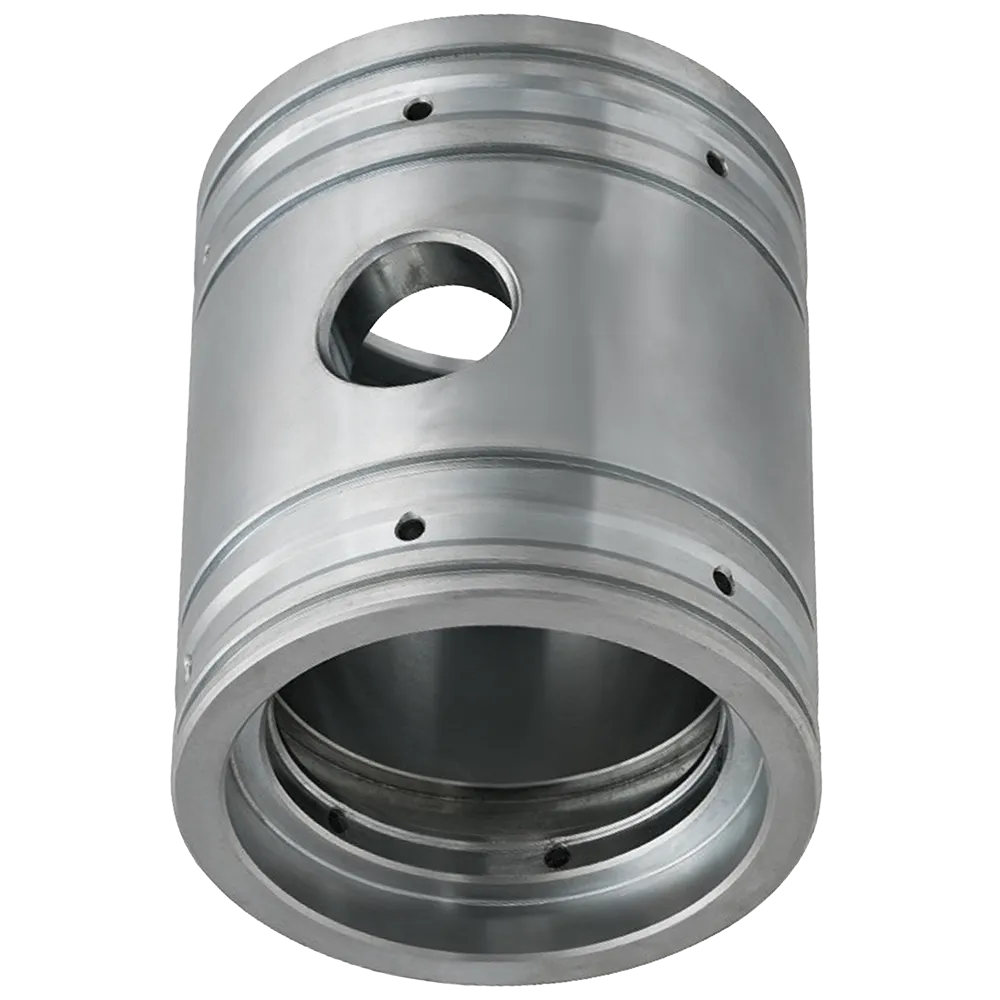

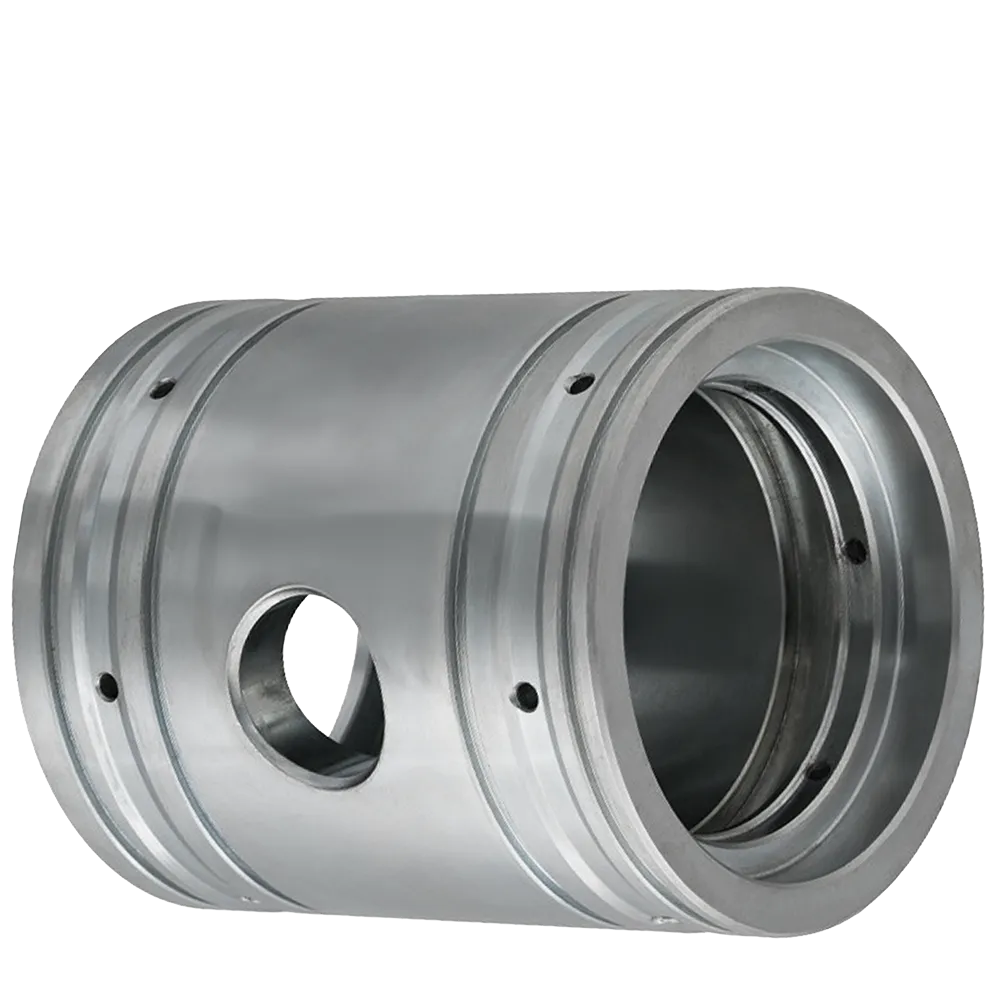

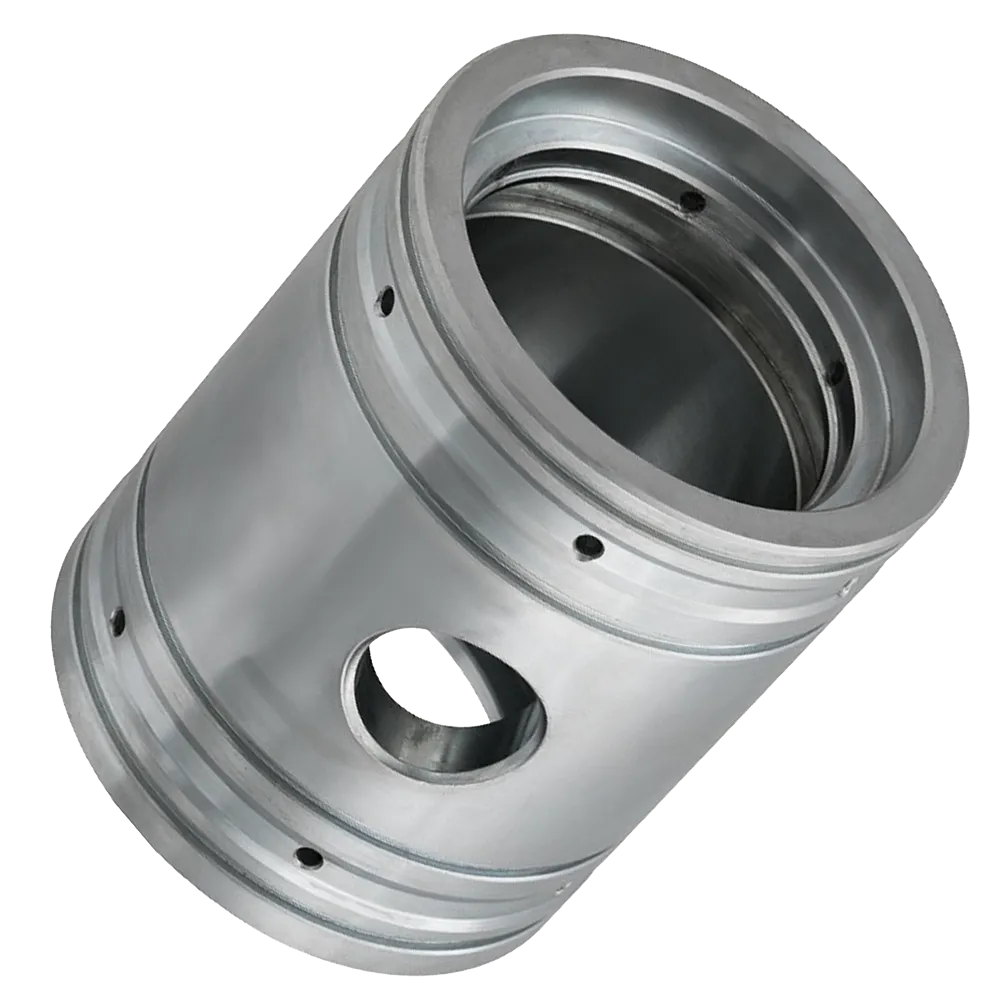

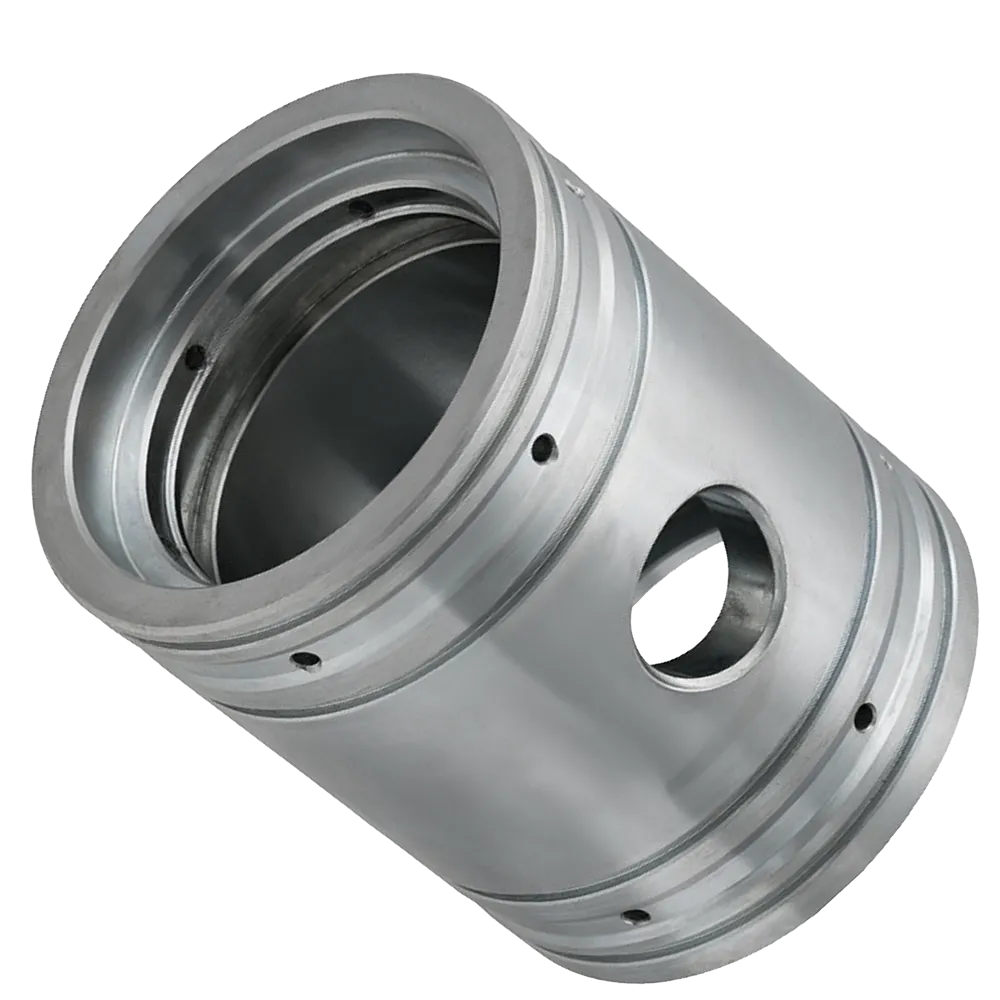

Based on the images, the 15403688, 154 036 88 SEAL HOUSING SANDVIK is a cylindrical precision-machined component with multiple small ports/holes and stepped internal features. Those design cues typically indicate:

• Controlled oil/grease paths or pressure equalization points

• Seating faces for seals and retaining elements

• Defined shoulders to position adjacent assemblies

• Machined lands that support concentric alignment

The external finish and visible machining lines suggest a part intended for exact-fit integration, important for drifter assemblies where even small deviations can translate into increased vibration, leakage, or heat.

Key Benefits of Using the Correct Seal Housing

Choosing the correct part number isn’t only about “fit.” It’s about how the whole system behaves after installation.

1) Better sealing stability under vibration

The 154 036 88 housing helps hold seal geometry steady. When vibration is constant, stable geometry is the difference between “runs clean” and “slowly starts sweating oil until it becomes a stop.”

2) Reduced contamination ingress

Rock drilling environments are brutal. When sealing geometry is compromised, dust ingress often accelerates wear far beyond the seal area. A correct-fit 15403688 housing helps protect internal surfaces from abrasive fines.

3) More consistent lubrication control

Seal systems in drifters frequently support lubrication retention. If lubrication migrates away from where it’s needed, friction climbs and temperatures rise. A properly machined housing helps keep lubrication behavior consistent.

4) Cleaner maintenance cycles

Unstable seals tend to create recurring troubleshooting: cleaning, re-sealing, re-checking, and repeat downtime. Installing the correct 15403688, 154 036 88 SEAL HOUSING SANDVIK helps maintenance teams stabilize that cycle and extend intervals.

Technical Overview and Expected Specifications

Exact dimensions can vary by configuration, but the part category and visual design allow a practical technical summary for buyers and service teams.

Material and manufacturing

• Material: typically high-grade alloy steel or equivalent engineering steel (application-dependent)

• Manufacturing: precision turning and internal machining

• Surface finish: controlled finish on sealing lands and seat areas

Functional features (typical)

• Stepped internal bore for seal seating

• Machined shoulders for axial positioning

• Small drilled ports for oil routing or equalization

• Concentric outer surface for alignment with adjoining assemblies

Estimated weight

Because weight depends on exact OD/ID and length, this is best treated as an estimate unless a parts book lists it.

• Estimated weight: 10.5 – 12.5 kg (packed) for the 15403688 / 154 036 88 housing based on visible mass and typical steel density.

If you share the bore/outer diameter/length (or your packing dimensions), I can tighten that estimate to a narrower range.

Installation Guidance

Correct installation helps the 15403688, 154 036 88 SEAL HOUSING SANDVIK perform as intended. The goal is to protect the sealing surfaces, maintain alignment, and avoid damage during assembly.

Pre-install checks

• Clean mating surfaces thoroughly (no grit, no metal chips)

• Inspect the housing for nicks on sealing lands and shoulders

• Confirm the ports/holes are clear and not obstructed

• Verify any associated O-rings/seals match the intended groove geometry

Assembly best practices

• Use compatible assembly lubricant for seals (avoid dry insertion)

• Align the housing square to the bore during insertion

• Apply even force, avoid hammering directly on finished sealing areas

• Torque fasteners/retainers to the correct spec for the assembly (per machine manual)

• After assembly, perform a leak-check/pressure stabilization test before returning to full duty

Common mistakes to avoid

• Installing seals without lubrication (can tear or roll the seal lip)

• Forcing the housing at an angle (can create micro-scoring)

• Reusing damaged seals because “it looked OK”

• Ignoring contamination, dust on assembly becomes abrasive inside operation

When to Replace the Seal Housing

A seal housing can look visually “fine” but still cause persistent problems. Replacement is recommended when you see:

• Repeated seal failures in short intervals

• Visible scoring on the sealing land area

• Ovality or distortion measured during inspection

• Evidence of fretting, polishing, or unusual wear at seat surfaces

• Leakage that persists after seal replacement and correct installation

In these cases, fitting a correct 15403688 / 154 036 88 housing often stabilizes the system more effectively than repeated seal changes.

Applications and Compatibility

Aftermarket catalogs and parts listings commonly associate 15403688, 154 036 88 SEAL HOUSING SANDVIK with drifter/rock drill assemblies in the HL series, especially HL1560T.

You may also see it referenced in listings connected to HL1010-tagged drifter parts catalogs.

Commonly referenced Sandvik/Tamrock drifter families (confirm by serial/parts book)

• Sandvik/Tamrock HL1560T (frequently referenced in parts lists)

• HL-series drifter configurations where the seal housing is used in the relevant section/assembly (catalog-dependent)

• Some aftermarket catalogs tag it under HL1010 group pages (verify exact assembly match before ordering)

Because drill variants can differ by configuration, retrofit, and serial range, the safest ordering method is:

• confirm the part number in the parts manual, or

• match via machine model + serial + assembly diagram.

If you want, paste the machine model/serial and I’ll help you validate whether 15403688 / 154 036 88 is the correct fit.

Why Buy From 3GEN Export

You’re not just buying a metal component, you’re buying time and certainty.

• OEM-standard manufacturing approach with consistent quality control

• Reliable packing for international transit

• Global shipping in 5 working days

• One-stop support for Sandvik drilling group spare parts sourcing

When you order the 15403688, 154 036 88 SEAL HOUSING SANDVIK from 3GEN Export, you’re choosing a supply route built around uptime: stable quality, fast dispatch, and predictable delivery.

Frequently Asked Questions

Is this part the same as a seal kit?

No. The 15403688 / 154 036 88 component is the housing that supports sealing elements. Seal kits usually include elastomeric seals, rings, and sometimes retainers. The housing is the precision body that those seals rely on.

Can I reuse my old seals with a new housing?

Sometimes, but it’s rarely ideal. If you’re replacing the 15403688, 154 036 88 SEAL HOUSING SANDVIK because of leakage or wear, pairing it with fresh seals is usually the most cost-effective path long-term.

Why does this matter if my drill still runs?

Many drills “run” while slowly losing lubrication or pulling contamination inside. That often turns into accelerated wear elsewhere. Restoring sealing stability can protect higher-cost assemblies downstream.
